Mini Metal Lathe 550W Metal Mini Lathe 180x350mm Tool Precision Machine Metalworking Home Tool Speed Milling Metal Turning

Price range: $759.59 through $832.51

7 products sold in last 8 hours
Selling fast! Over 5 people have in their cart
29 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Certification: CE

Warranty: We will provide a one-year warranty and solve all your after-sales problems!
The product is quite complex, please be patient and carefully read the operation manual and operate it. If you have any problems, please contact the store customer service for consultation in a timely manner.

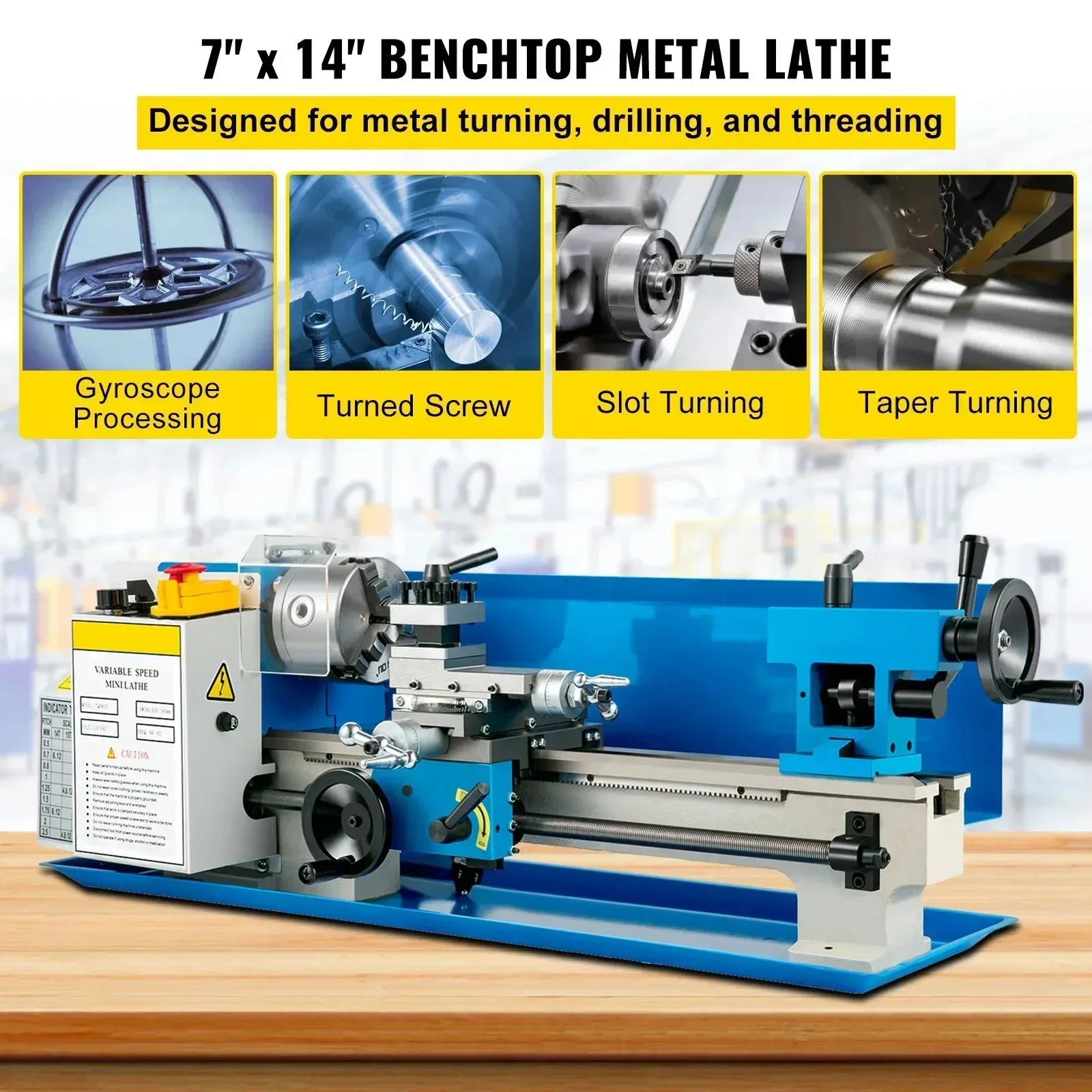

550W 7" X 14" Variable-speed Metal Lathe With Nylon Gears
The 7 x 14 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, an MT3 spindle taper, an MT2 tailstock taper, a tool rest, and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 50-2500RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable. A movable lamp is free for you.

  • Sturdy Aluminium Construction

  • Infinitely Variable Speeds

  • Accurate 3-jaw Chuck

  • Professional Compound Rest

Tough Equipment & Tools, Pay Less
is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, 's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose ?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features
Heavy & Sturdy Machine
Features a 7 inch swing over bed, 13.78 inch distance between centers and 20mm spindle bore. Includes a thread range of 12-52 TPI, threading dial indicator and standard and metric handwheel graduations.

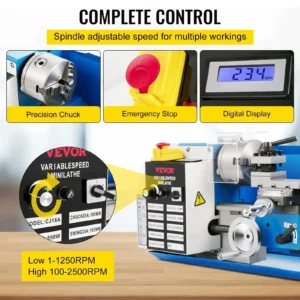

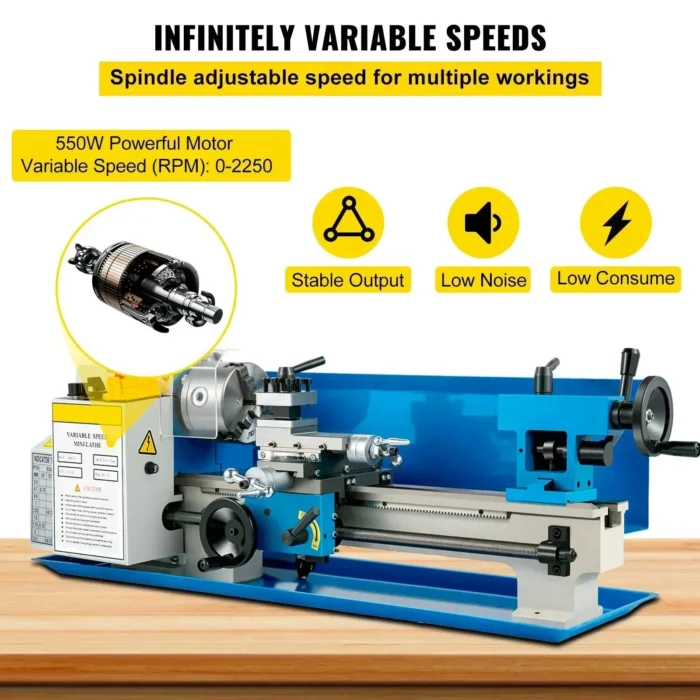

Infinitely Variable Speeds
Variable speed from 50-2500 RPM. Forward and reverse at all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. The spindle is supported by precision tapered roller bearings, with spindle accuracy within 0.01mm.
Four-way Tool Post
T-slotted compound slide with four-way tool post, 4 blades available at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with a feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 350mm(13.78").
Wide Applications
Suitable for processing jobs, like counter face turning, driling, threading and cutting jobs on materials made up of round bar. All accessories are well packed.
Specifications

  • Power of Motor: 550W DC Single Phase

  • Spindle Speed: 0-2250 RPM

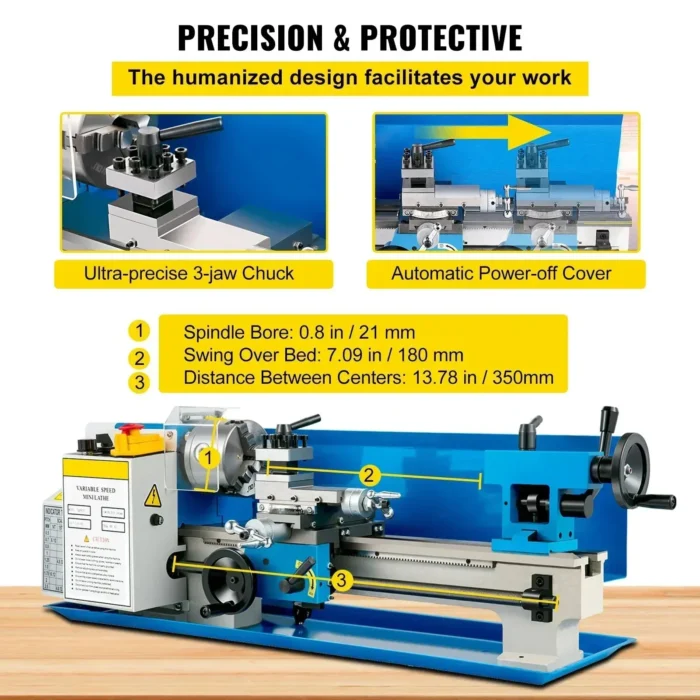

  • Swing Over Bed: 180 mm (7.09")

  • Swing Over Cross Slide: 110 mm

  • Chuck Diameter: 100 mm (3.94")

  • Centers Distance: 350 mm (13.78")

  • Spindle Bore: 21 mm (0.83")

  • Spindle Taper: MT3

  • Tailstock Taper: MT2

  • Cross Slide Travel: 65 mm (2.53")

  • Top Slide Travel: 35 mm (1.36")

  • Spindle Accuracy: 0.01 mm

  • Inch Thread: 12-52 T.P.I

  • Metric Thread: 0.5-2.5 mm

Package Content

  • 1 x Mini Metal Lathe

  • 3 x Chuck Jaw

  • 1 x Lathe Center

  • 1 x Chuck Wrench

  • 2 x Wrench

  • 1 x Oil Can

  • 5 x Hex Wrench

  • 9 x Plastic Nylon Gear

  • 2 x Handle

  • 4 x Rubber Feet

  • 4 x Screws

  • 1 x Tool Box

Ships From

CZECH REPUBLIC, United States
Dimension

180x350mm
