220x600mm Metal Lathe Variable Speed Mini 3-Jaw Chuck | High Precision Mechanical Lathe for Drilling/Threading

Price range: $602.64 through $1,874.22

9 products sold in last 7 hours
Selling fast! Over 7 people have in their cart
24 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
  • Hign-concerned Chemical: None
  • Origin: Mainland China

Warranty: We will provide a one-year warranty, and we will solve all your after-sales problems!
Multi-Size Mini Metal Lathe
Wide Application: This mini metal lathe is idea for various processing tasks including turning, drilling, threading and cutting.
Supportive & Protective: Steady rest works as an end support, ensuring chatter-free operation. Follow rest is used for turning operations on long, slender workpices. Backsplash guard included.

  • Variable Speed Design

  • Large Swing Range

  • Professional Compound Rest

  • Supportive & Protective

  • Accurate Tailstock

Tough Equipment & Tools, Pay Less
is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, 's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose ?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

8.7"x 29.5" / 220 x 750 mm 750W Mini Metal Lathe Brushed/Brushless

  • Model: 1 Base-Fixed

  • Power: 750W

  • Volt: 220V 50Hz

  • Phase: Single Phase

  • Swing Over Bed: 8.7" / 220 mm

  • Distance Between Centers: 29.5" / 750 mm

  • 3-Jaw Chuck Diameter: 4.9" / 125 mm

  • Hole Through Spindle: 1.5" / 38 mm

  • Spindle Accuracy:0.01 mm

  • Variable Speed(Rpm): 50-2250±10%

  • Range of Imperial Threads: 8-44 T.P.I

  • Range of Longitudinal Feed: 0.5-2.5 mm

  • Gear Material: Metal

  • Item Weight:186 lbs / 84 kg

  • Item Dimension: 40.2 × 12.3 × 13.6 in / 102.2 × 31.3 × 34.7 cm

Package Content

  • 1 x Metal Lathe

  • 1 x Center Rest

  • 1 x Dead Center MT2

  • 1 x Oil Gun

  • 3 x Jaw

  • 6 x Metal Gear

  • 1 x Instruction Manual

  • 2 x Screwdriver

  • 1 x Accessory Kit

  • 1 x Chuck Wrench

  • 3 x Wrench

  • 3 x Chuck Jaw

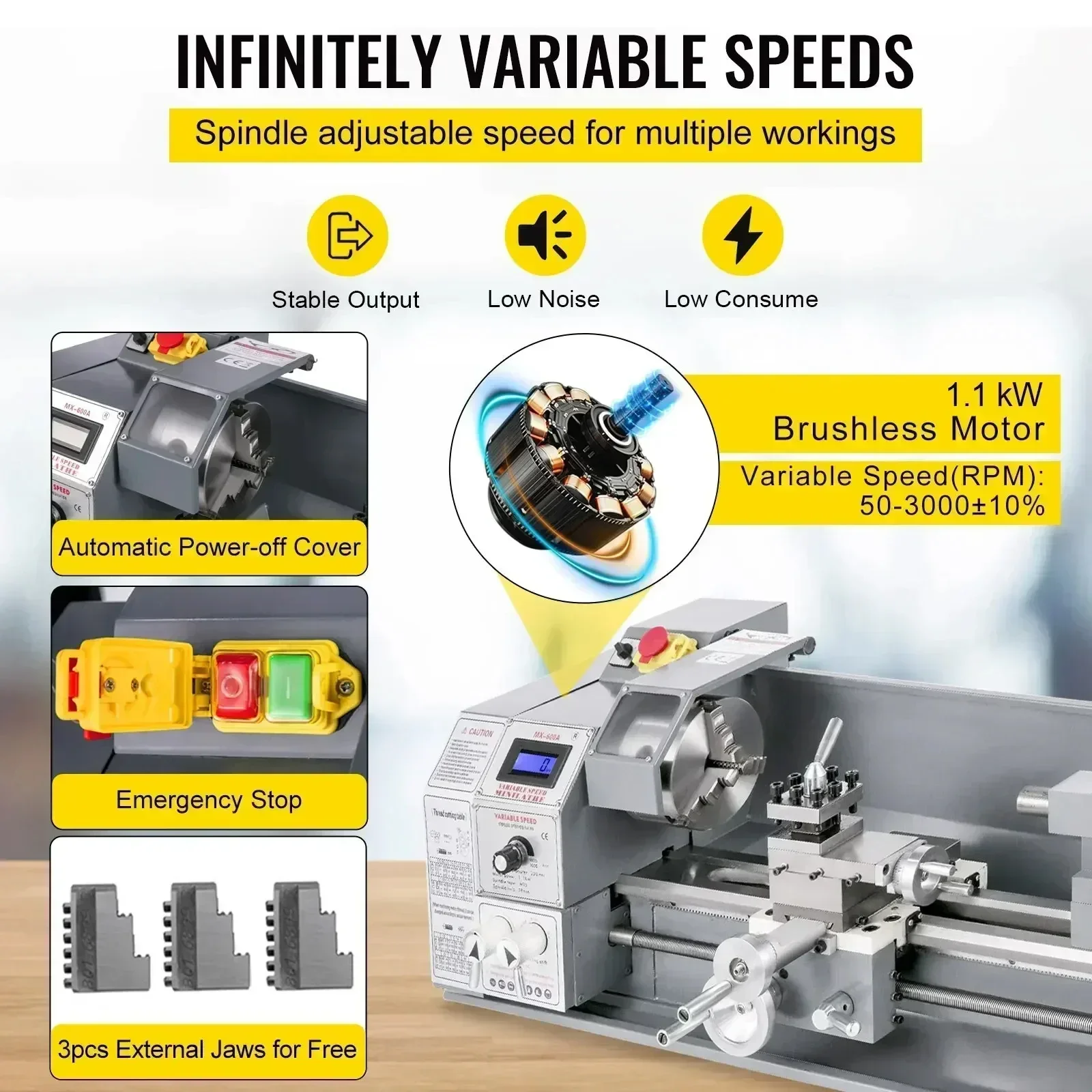

8.7" x 23.6" / 220 x 600 mm 1100W Mini Metal Lathe

  • Power: 1100W

  • Motor Type: Brushless

  • Volt: 220V 50Hz

  • Phase: Single Phase

  • Swing Over Bed: 8.7" / 220 mm

  • Distance Between Centers: 23.6" / 600 mm

  • 3-Jaw Chuck Diameter: 4.9" / 125 mm

  • Hole Through Spindle: 1.5" / 38 mm

  • Variable Speed(Rpm): 50-3000±10%

  • Taper of Spindle: MT#5

  • Taper of Tailstock: MT#2

  • Spindle Accuracy: 0.01 mm

  • Range of Imperial Threads: 8-44 T.P.I

  • Range of Longitudinal Feed: 0.5 – 2.5 mm

  • Gear Material: Metal

  • Item Weight: 183 lbs / 83 kg

  • Item Dimension: 41.5 × 13.3 × 13.5 in / 105.5 × 34 × 34.5 cm

Package Content

  • 1 x Metal Lathe

  • 1 x Tool Rest

  • 5 x Hex Wrench

  • 1 x Dead Center MT2

  • 1 x Oil Gun

  • 3 x Jaw

  • 5 x Gear

  • 1 x Instruction Manual

  • 2 x Screwdriver

  • 1 x Accessory Kit

  • 1 x Chuck Wrench

  • 3 x Wrench

  • 3 x Chuck Jaw

7" x 14" / 180 x 350 mm 550W Mini Metal Lathe – Set 2

  • Power of Motor: 550W DC Single Phase

  • Spindle Speed: 0 – 2250 RPM

  • Swing Over Bed: 7.09" / 180 mm

  • Swing Over Cross Slide: 4.3" / 110 mm

  • Chuck Diameter: 3.94" / 100 mm

  • Centers Distance: 13.78" / 350 mm

  • Spindle Bore: 0.83" / 21 mm

  • Spindle Taper: MT3

  • Tailstock Taper: MT2

  • Cross Slide Travel: 2.53" / 65 mm

  • Top Slide Travel: 1.36" / 35 mm

  • Spindle Accuracy: 0.0004" / 0.01 mm

  • Inch Thread: 12 – 52 T.P.I

  • Metric Thread: 0.5 – 2.5 mm

  • Net Weight: 102.7 lbs / 46.6 kg

  • Item Dimensions (L x W x H): 29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm

Package Content

  • 1 x Mini Metal Lathe

  • 3 x Chuck Jaws

  • 1 x Lathe Center

  • 1 x Chuck Wrench

  • 2 x Wrench

  • 1 x Oil Can

  • 5 x Hex Wrenches

  • 9 x Plastic Nylon Gears

  • 2 x Handle

  • 4 x Rubber Feet

  • 4 x Screws

  • 1 x Tool Bo

7" x 12" / 180 x 300 mm 600W Mini Metal Lathe

  • Power: 600W 220V 50Hz

  • Distance Between Centers: 12" / 300 mm

  • Swing Over Bed: 7" / 180 mm

  • Swing Over Cross Slide: 4" / 95 mm

  • Taper of Spindle Bore: MT3

  • Spindle Bore: 0.8" / 21 mm

  • Range of Spindle Speeds: 50 – 2500 RPM

  • Max. Slide Travel: 2.2" / 55 mm

  • Cross Slide Travel: 3" / 75 mm

  • Tailstock Quill Travel: 2.5" / 60 mm

  • Taper of Tailstock Quill: MT2

  • Gross Weight: 149.6 lbs / 68 kg

  • Item Dimensions(L x W x H): 27.5 × 11.5 × 13 inches / 70 × 297 × 33 cm

Package Content

  • 1 x Mini Lathe

  • 1 x Splash Guard

  • 1 x Oil Can

  • 1 x Manual

  • 1 x Chuck Key

  • 8 x Metal Gears

  • 2 x Bolt Drivers

  • 5 x Hex Keys

  • 3 x Chuck Jaw

8" x 16" / 210 x 400 mm 750W Mini Metal Lathe- Set 1

  • Swing Over Bed: 8.3 in / 210 mm

  • Swing Over Cross Slide: 15.7in / 400 mm

  • Motor Power: 750W

  • Volt: 220V

  • Phase: Single Phase

  • Spindle Bore: 0.83 in / 21 mm

  • Spindle Taper: MT5

  • Tail Stock Taper: MT2

  • Gear Material: Metal

  • Spindle Speed Ranges: Low 0-1250, High 100-2250 RPM

  • Spindle Accuracy: 0.0004-0.0012" / 0.01-0.03 mm

  • Compound Rest Travel: 2-1/8 in / 54 mm

  • Cross Slide Travel: 3 in / 76 mm

  • Tail Sleeve: φ1 in / 25 mm

  • Inch Threads: 8-44 T.P.I

  • Metric Threads: 0.5-3.0 mm

  • Footprint: 31.5 x 10.5 in / 800.1 x 266.7 mm

  • Item Weight: 169.8 lbs / 77 kg

  • Item Dimensions: 31.5 × 11.8 × 13.6 in / 80 × 30 × 34.5 cm

Package Content

  • 1 x Metal Lathe (Equipped with a 3-jaw Chuck)

  • 1 x Center Rest

  • 1 x Tool Storage Box

  • 1 x Oil Can

  • 3 x Wrench

  • 3 x Allen Key

  • 3 x Jaw

  • 5 x Metal Gear


8" x 16" / 210 x 400 mm 750W Mini Metal Lathe-Set 2 (Gray/ Red metal lathe is shipped randomly)

  • Motor Power: 750W

  • Voltage: 220V 50Hz

  • Spindle Taper: MT3

  • Tail Stock Taper: MT2

  • Range of Spindle Speeds: 50 – 2500 RPM

  • Distance Between Centers: 16" / 400 mm

  • Swing Over Bed: 8" / 210 mm

  • Chuck Diameter: 5" / 125 mm

  • Hole Thru Spindle: 1.5" / φ38 mm

  • Max. Compound Slide Travel: 2" / 55 mm

  • Max. Cross Slide Travel: 3" / 75 mm

  • Net Weight: 158.7 lbs / 72 kg

  • Item Dimensions (L x W x H): 31.5 x 11.5 x 13.5 in / 80 x 29 x 34.3 cm

Package Content

  • 1 x Mini Lathe

  • 1 x Set of Accessories

7" x 14" / 180 x 350 mm 550W Mini Metal Lathe- Set 1 (Updated Version: Metal Gears; Aluminum Handwheel; Digital Display Screen)

  • Power of Motor: 550W DC Single Phase

  • Variable Speed: 0-2500PRM

  • Swing Over Bed: 7.09"/180mm

  • Center Distance:13.78"/350mm

  • Inch Thread: 12-52 T.P.I

  • Metric Thread: 0.5-2.5 mm

  • Voltage: 220V 50Hz for EU&AU, 110V for US

  • Material: Metal

  • Product Size: 30"x 11.8"x 11.4"

  • Net Weight: 40 kg /88.18 lb

Package Content

  • 1 x Mini Metal Lathe

  • 1 x Working Light

  • 3 x Chuck Jaw

  • 7 x Turning Tool

  • 1 x A Set of Accessories

Ships From

CZECH REPUBLIC, United States
Dimension

180 x 350 mm Set 1, 180 x 350 mm Set 2, 220 x 600 mm 1100W, 220 x 750 mm Brushed, 220×750 mm Brushless
color

Gray
