2.2/3/4/7.5KW VFD Frequency Inverter 110V/220V 1/3P Input 3P Output Variable Frequency Drive CNC Motor Converter

Price range: $125.97 through $216.10

14 products sold in last 9 hours
Selling fast! Over 13 people have in their cart
22 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
  • Hign-concerned Chemical: None
  • Output Frequency: 0-1000 Hz
  • Type: Other
  • Output Type: triple
  • Origin: Mainland China
  • Certification: CE
  • Power: 2.2/3/4/7.5KW
  • Horsepower: 3/5.5/10HP
  • Control mode: V/F control and vector control
  • Input Voltage: 220V, 110V
  • Output Voltage: 0-220V, 0-110V
  • Input Current: 0-14A, 0-17A, 0-33A, 0-17.5A
  • Output Current: 0-14A, 0-17A, 0-33A, 0-17.5A
  • Input Phase: 1 or 3 Phase
  • Output Phase: 3 Phase
  • Input Frequency: 50/60 Hz
  • Output Frequency: 0-1000 Hz
  • Working Temperature: 23~104℉/-5 ~ 40 ℃
  • Humidity: 0-90% Relative Humidity (without dew)
Product Description
2.2/3/4/7.5 KW Variable Frequency Drive
Stable Performance & Digital Display & Mute Operation
This VFD converter can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc.). In addition, it can be used as a motor speed control and a phase converter. The input for this VFD is 1 or 3 phase, and the output is 3 phase. You can control the different speeds you like when you use this VFD. This item uses Sine wave PWN(SVPWM) for the control system and performance excellently. It also has passed CE certification.

  • Powerful Function

  • Low-Noise Operation

  • Smart Digital Display

  • Multiple Protection

Tough Equipment & Tools, Pay Less
is a leading brand that specializes in equipment and tools. Along with thousands of motivated

employees, is dedicated to providing our customers with tough equipment & tools at incredibly

low prices. Today, ‘s products are sold in more than 200 countries and regions with 10 million

plus members worldwide.
Why Choose ?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features
Unique Control Method
This VFD uses a unique control method to achieve the high moment of force, high precision, and wide speed regulating range driving. It can realize functions like up to 8/16-segment speed control, a program running, 4-segment acceleration/deceleration switching, etc.

High-Quality Material
The case of CNC VFD is made of ABS flame retardant material which features strong crash-proof capabilities, good flame retardancy with a non-corrosive coating. In addition, it has good tripping prevent performance and the ability to adapt to rough power, temperature, humidity, and dust interference, greatly improved stability. The capacitor can withstand temperatures up to 105℃, higher than ordinary ones (80℃).

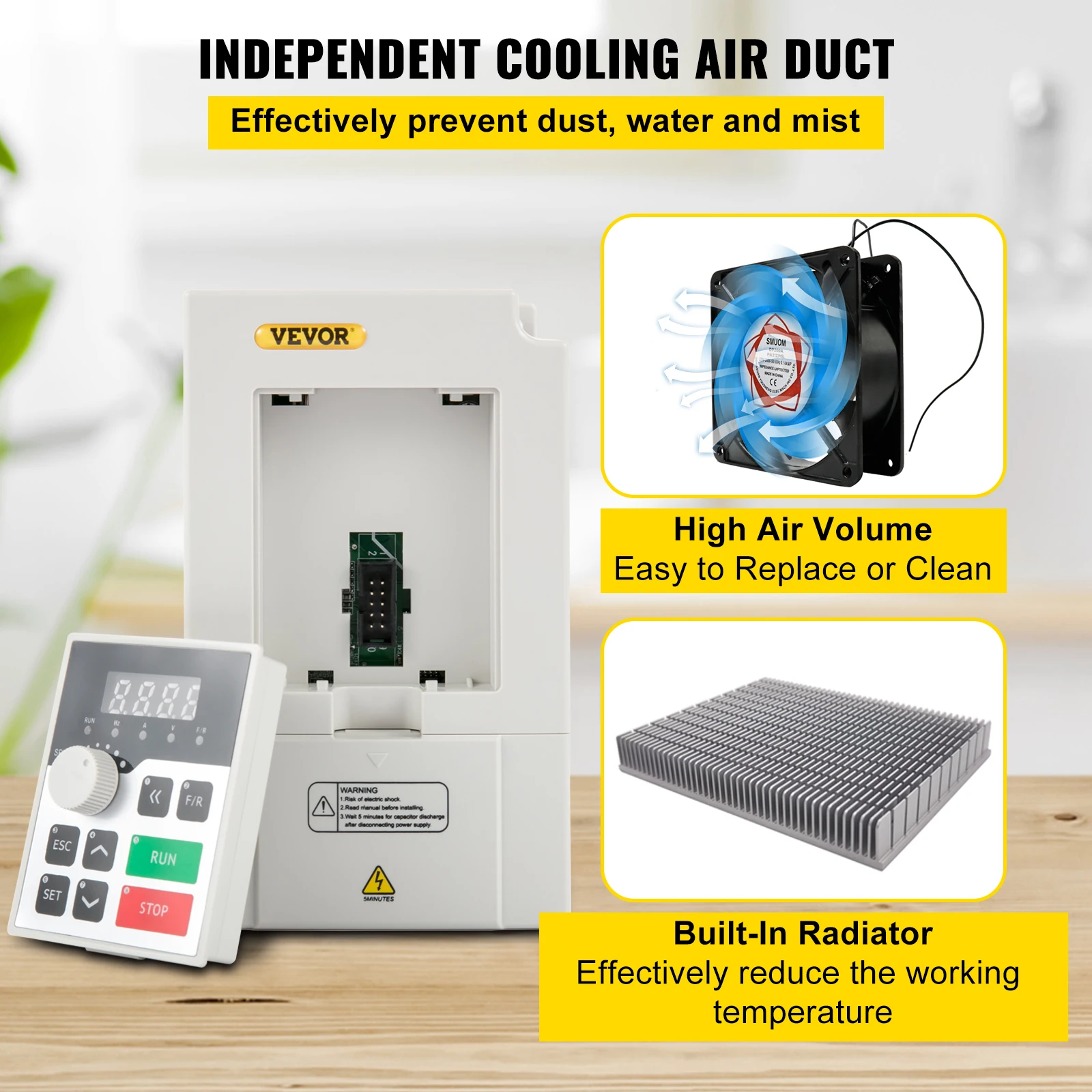

High Air Volume
The VFD drive is equipped with fan cooling and a built-in radiator. It has an efficient heat dissipation ability, ensuring a suitable temperature inside the VFD. In addition, the independent air duct is designed for electrical and contaminant isolation, allowing the product to be used in harsh environments.

Smart Digital Display
After the panel is disassembled, it can be connected to the corresponding interface to achieve remote control. Reasonable layout and intuitive & clear digital display increase the convenience of daily use.

Multiple Protection
Many protection ways are adopted to ensure the stable and reliable operation of the CNC variable frequency drive inverter, like overload protection, fuse protection, over-voltage or under-voltage protection, etc.

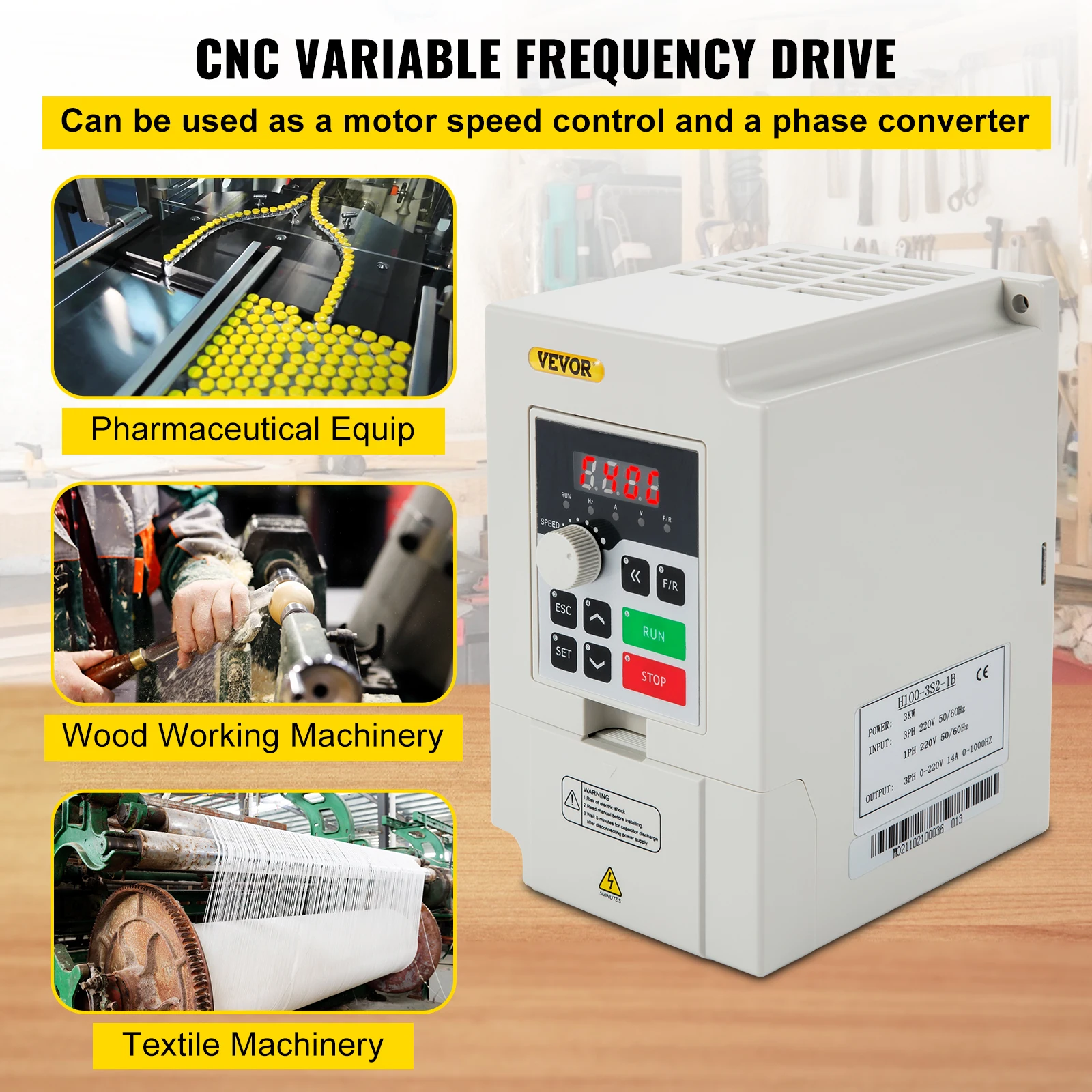

Wide Application
The variable frequency drives are applied in machinery winding machines, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator, and other speed control machines.

3KW Variable Frequency Drive

  • Model: H100-3S2-1B

  • Power: 3 kW

  • Input Voltage: 220V

  • Output Voltage: 0-220V

  • Input Current: 0-14A

  • Output Current: 0-14A

  • Input Phase: 1 or 3 Phase

  • Output Phase: 3 Phase

  • Input Frequency: 50/60 Hz

  • Output Frequency: 0-1000 Hz

  • Horsepower: 4 HP

  • Working Temperature: 23~104℉/-5 ~ 40 ℃

  • Humidity: 0-90% Relative Humidity (without dew)

  • Vibration: Below 0.5 G

  • Net Weight: 2.43 lbs / 1.1 kg

  • Product Size: 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm

Package Content

  • 1 x 3 KW Variable Frequency Drive Inverter

  • 1 x English Manual

  • 1 x Extension Wire

4KW Variable Frequency Drive

  • Model: H100-4S2-1B

  • Power: 4 kW

  • Input Voltage: 220V

  • Output Voltage: 0-220V

  • Input Current: 0-17A

  • Output Current: 0-17A

  • Input Phase: 1 or 3 Phase

  • Output Phase: 3 Phase

  • Input Frequency: 50/60 Hz

  • Output Frequency: 0-1000 Hz

  • Horsepower: 5.5 HP

  • Working Temperature: 23~104℉/-5 ~ 40 ℃

  • Humidity: 0-90% Relative Humidity (without dew)

  • Vibration: Below 0.5 G

  • Net Weight: 5.73 lbs / 2.6 kg

  • Product Size: 8.7 x 4.6 x 5.8 in / 220 x 118 x 148 mm

Package Content

  • 1 x 4 KW Variable Frequency Drive Inverter

  • 1 x English Manual

  • 1 x Extension Wire

7.5KW Variable Frequency Drive

  • Model: H100-7.5S2-1B

  • Power: 7.5 kW

  • Input Voltage: 220V

  • Output Voltage: 0-220V

  • Input Current: 0-33A

  • Output Current: 0-33A

  • Input Phase: 1 or 3 Phase

  • Output Phase: 3 Phase

  • Input Frequency: 50/60 Hz

  • Output Frequency: 0-1000 Hz

  • Horsepower: 10 HP

  • Working Temperature: 23~104℉/-5 ~ 40 ℃

  • Humidity: 0-90% Relative Humidity (without dew)

  • Vibration: Below 0.5 G

  • Net Weight: 5.73 lbs / 2.6 kg

  • Product Size: 8.7 x 4.6 x 5.8 in / 220 x 118 x 148 mm

Package Content

  • 1 x 7.5 KW Variable Frequency Drive Inverter

  • 1 x English Manual

  • 1 x Extension Wire

2.2KW Variable Frequency Drive

  • Model: H100-2.2C2-1B

  • Power: 2.2 kW

  • Input Voltage: 110V

  • Output Voltage: 0-110V

  • Input Current: 0-17.5A

  • Output Current: 0-17.5A

  • Input Phase: 1 or 3 Phase

  • Output Phase: 3 Phase

  • Input Frequency: 50/60 Hz

  • Output Frequency: 0-1000 Hz

  • Horsepower: 3 HP

  • Working Temperature: 23~104℉/-5 ~ 40 ℃

  • Humidity: 0-90% Relative Humidity (without dew)

  • Vibration: Below 0.5 G

  • Net Weight: 2.43 lbs / 1.1 kg

  • Product Size: 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm

Package Content

  • 1 x 2.2 KW Variable Frequency Drive Inverter

  • 1 x English Manual

  • 1 x Extension Wire

Features & Details

  • Powerful Function: This variable frequency drive has a 1 or 3 phase input and 3 phase output. Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, serial communication setting (RS485 communication port, adopting standard international MODBUS main circuit control), PID setting (advanced calculus PID closed-loop arithmetic, quick responding speed, and high suitability), etc. Various control techniques by both synchronization and non-synchronization dynamically realize fast starting without changing brakes. Heavy load high torque, 1Hz up to full torque.

  • Low-Noise Operation: The phase converter features low noise and low electromagnetic interference through the optimization of PWM control technology and electromagnetic compatibility of the overall design. There is enough space for heat dissipation between electronic components, and the shell adopts porous heat dissipation, which has a longer service life.

  • Smart Digital Display: The VFD adopts a user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear. The detachable design is convenient for remote control.

  • Multiple Protection: We adopt various protection ways to ensure the stable and reliable operation of the CNC variable frequency drive inverter. Such as overload protection, fuse protection, over-voltage (DC voltage>400V), or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection, and over-heat protection.

  • Versatile Use: The main application area involves a spindle motor, CNC engraving machine, CNC milling machine, CNC machine tool, milling machine, drilling machine, trimming machine, mixer, extruder, slitting machine, rewinder, compressor, ventilator, pump, grinder, conveyor. Speed regulators such as elevators (cannot be used for passenger elevators), centrifuges, etc.

Ships From

United States
Power/Voltage

2.2KW 3HP 110V, 3KW 4HP 220V, 4KW 5.5HP 220V, 7.5KW 10HP 220V
