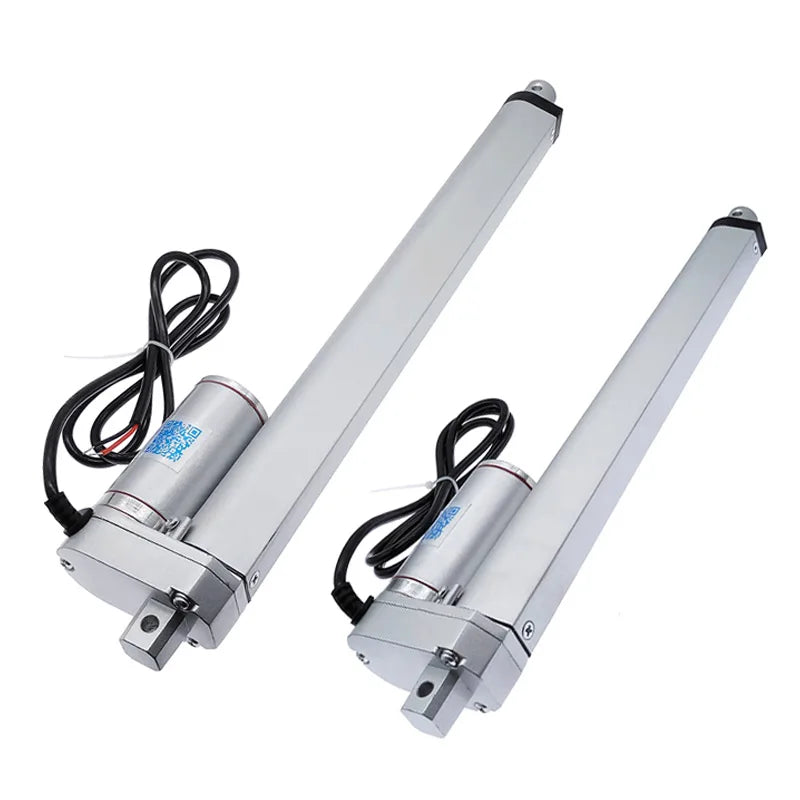

Electric Linear Actuator 300mm 250mm 12V/24V Stroke dc linear motion 100/300/500/700/1000/1200/1500N
Electric Linear Actuator 300mm 250mm 12V/24V Stroke dc linear motion 100/300/500/700/1000/1200/1500N
Currently 999 items are in stock!
No se pudo cargar la disponibilidad de retiro
Quality Products You Can Trust. Shop With Confidence. See More See More
Order in and Get delivery By
100% Money Back!!
Shop with confidence. If you’re not satisfied with your purchase, we’re here to make it right.
30-Day Returns & Refunds
30-Day Returns & Refunds
Changed your mind? No problem. Enjoy our 30-day return and refund policy, designed to make your shopping experience simple and worry-free.
Secure Checkout
Secure Checkout
Your payment and personal information are protected with a secure checkout process, so you can shop with confidence from start to finish.
SPECIFICATIONS
Brand Name: CNMAWAY
Certification: ce
Commutation: Brush
Construction: Permanent Magnet
Continuous Current(A): 1~2A
Efficiency: IE 2
High-concerned chemical: None
Model Number: 250mm 300mm Stroke
Origin: Mainland China
Output Power: ＜18.65
Protect Feature: Drip-proof

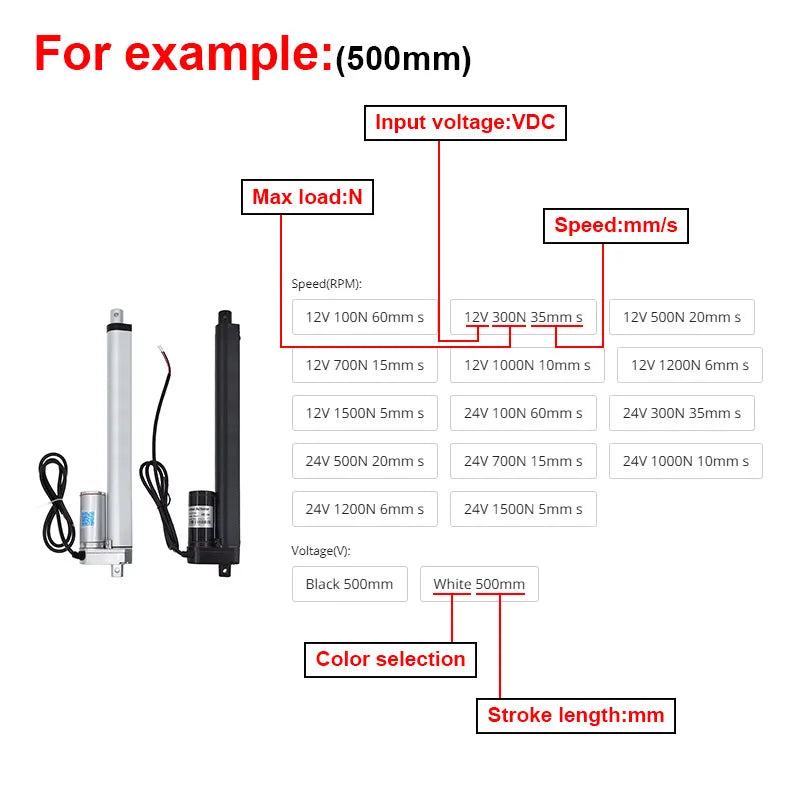

Speed(RPM): 4/6/10/15/20/35/60/90mm/s
Torque: 100/300/500/700/1000/1200/1500N
Type: Gear Motor
Voltage(V): DC12V/24V/36V/48V
Technical Parameters:
Rated power: 20W Maximum 30W
Stroke: 50mm/100mm/150mm/200mm/250mm/300mm/350mm/400mm/450mm/500mm

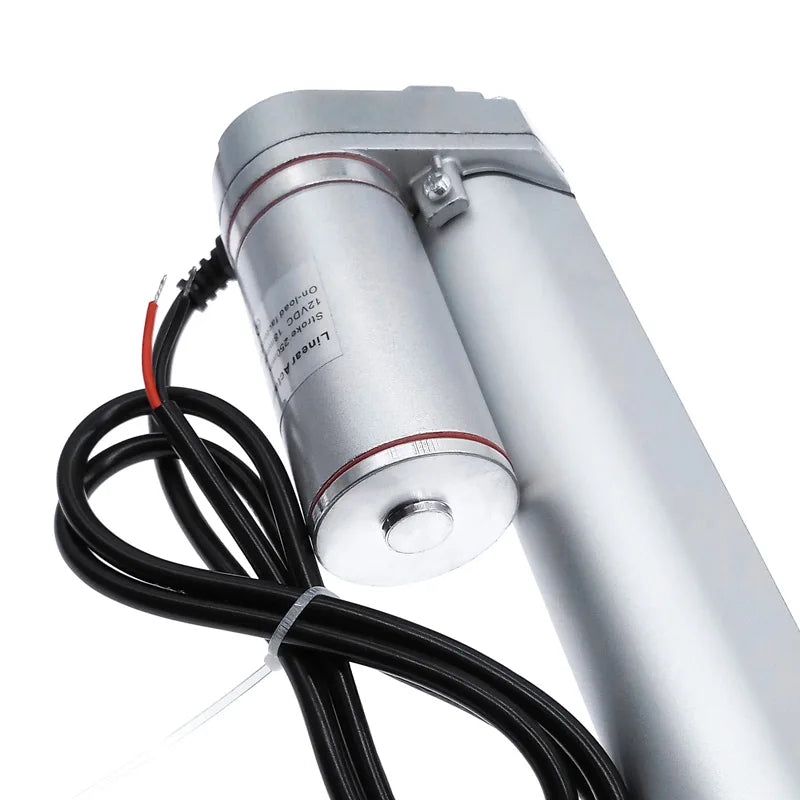

Permanent magnet DC motor drive;
Voltage: 12V,24V
Standard protection grade: IP54
Material: aluminum alloy
Ambient temperature -20°C to +75°C.
Low noise design, noise level less than 42dB.
Application: Television console.couch for massage.Electric bed.Medical chair.Electric equipment ....
The self-locking force of the linear actuator is about 80%
Size：
L= Minimum installation distance
S= Effective stroke
Size introduction:
Stroke Length: means the movement length of linear actuator.
Retracted Length: means the length when linear actuator 100% fully closed.
Extended Length: means the length when linear actuator 100% fully open.
Stroke length introduction:
50mm Stroke, Retracted Length=155mm, Extended Length=205mm
100mm Stroke, Retracted Length=205mm, Extended Length=305mm
150mm Stroke, Retracted Length=255mm, Extended Length=405mm
200mm Stroke, Retracted Length=305mm, Extended Length=505mm
250mm Stroke, Retracted Length=355mm, Extended Length=605mm
300mm Stroke, Retracted Length=405mm, Extended Length=705mm
... ...
