Mini telescopic linear actuator small micro 6V/12V/24VDC electric reciprocating lifting linear actuator stroke range 10-200mm
SPECIFICATIONS
Brand Name: Hoodland
Certification: CE
Color: Silver
Commutation: Brush
Construction: Permanent Magnet
Continuous Current(A): 0.25A
Efficiency: IE 2
High-concerned chemical: None
Model Number: IP60
Origin: Mainland China
Output Power: <18.65,3W
Protect Feature: Drip-proof
Torque: 150N
Type: Micro Motor
Usage: BOAT,Car,Electric Bicycle,Fan,Home Appliance

Technical Parameters
Voltage (V) DC 6/12/24V

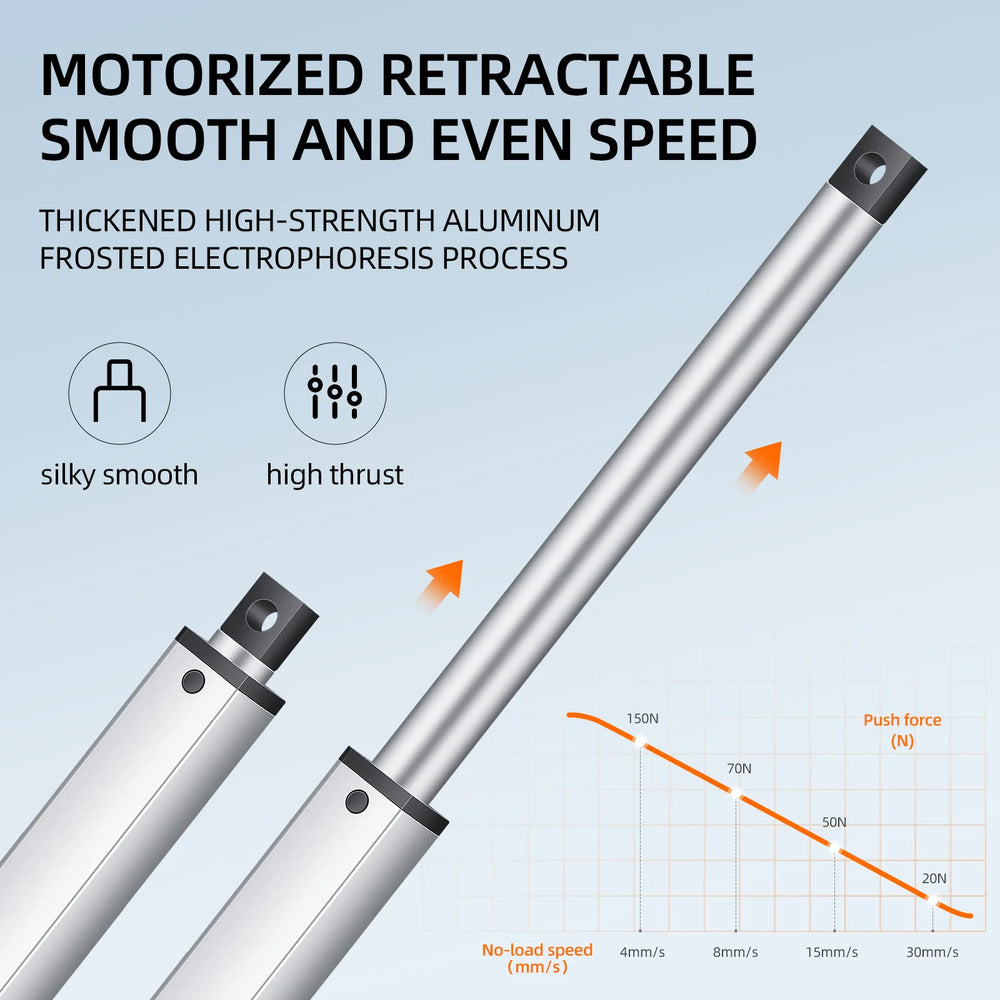

No-load speed (mm/s) 4 8 15 30 150
Load push capacity (N) 150 70 50 20 7
Load pull capacity (N) 150 70 50 20 7
Statoc damping (N) 150 70 50 20 7

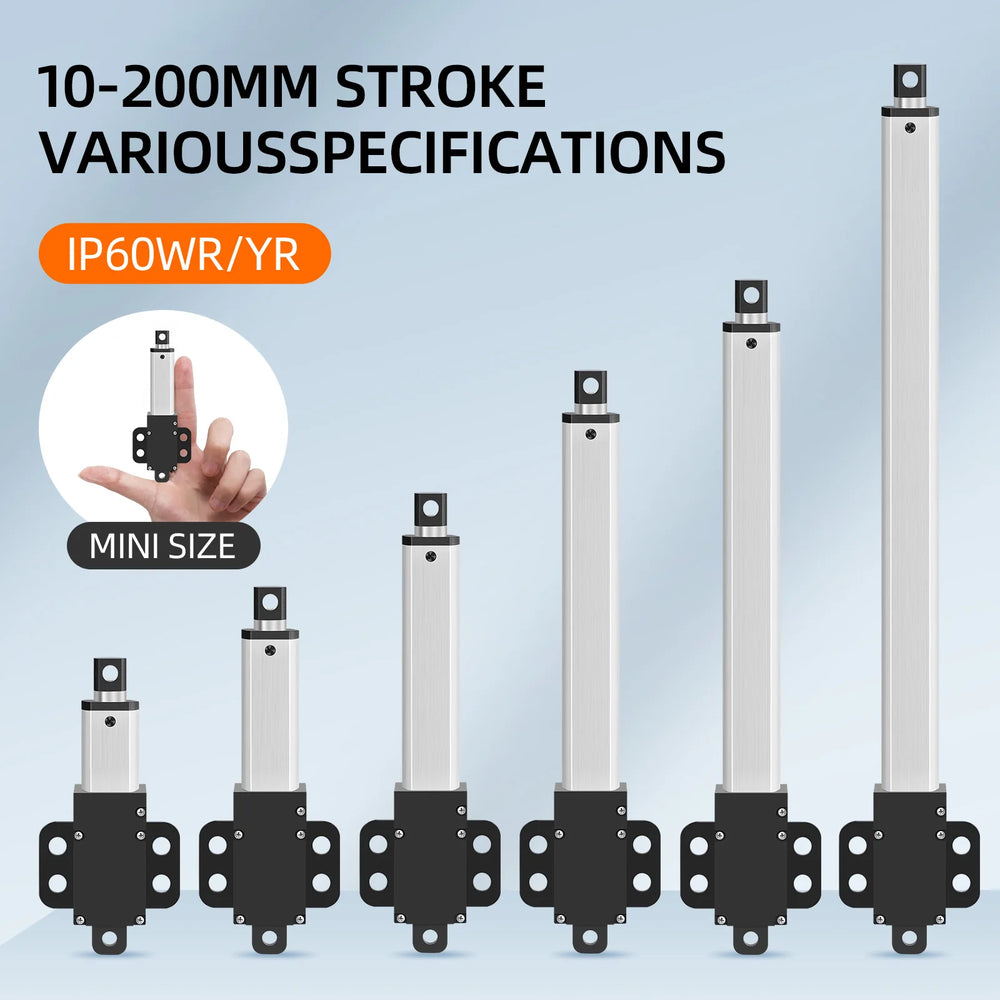

Stroke length (mm) 10mm,15mm,20mm,30mm,40mm,50mm,75mm,100mm,150mm,200mm
Operating temperature 0~40℃
IP Grade IP43
Limit switch Built-in
Operating frequency 10% max 2min continuous use
Inner tube Aluminum tube
Color Silver gray
Lead screw type T type

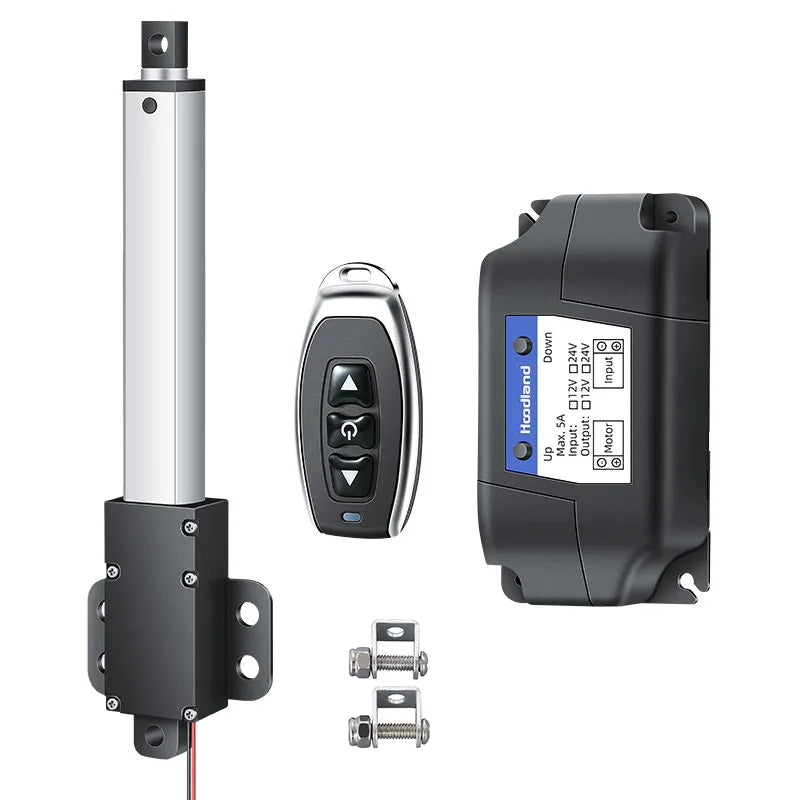

What's in the box
1 x Mini Electric Linear Actuator
2 x Mounting Bracket
1 x Wireless Remote Controller

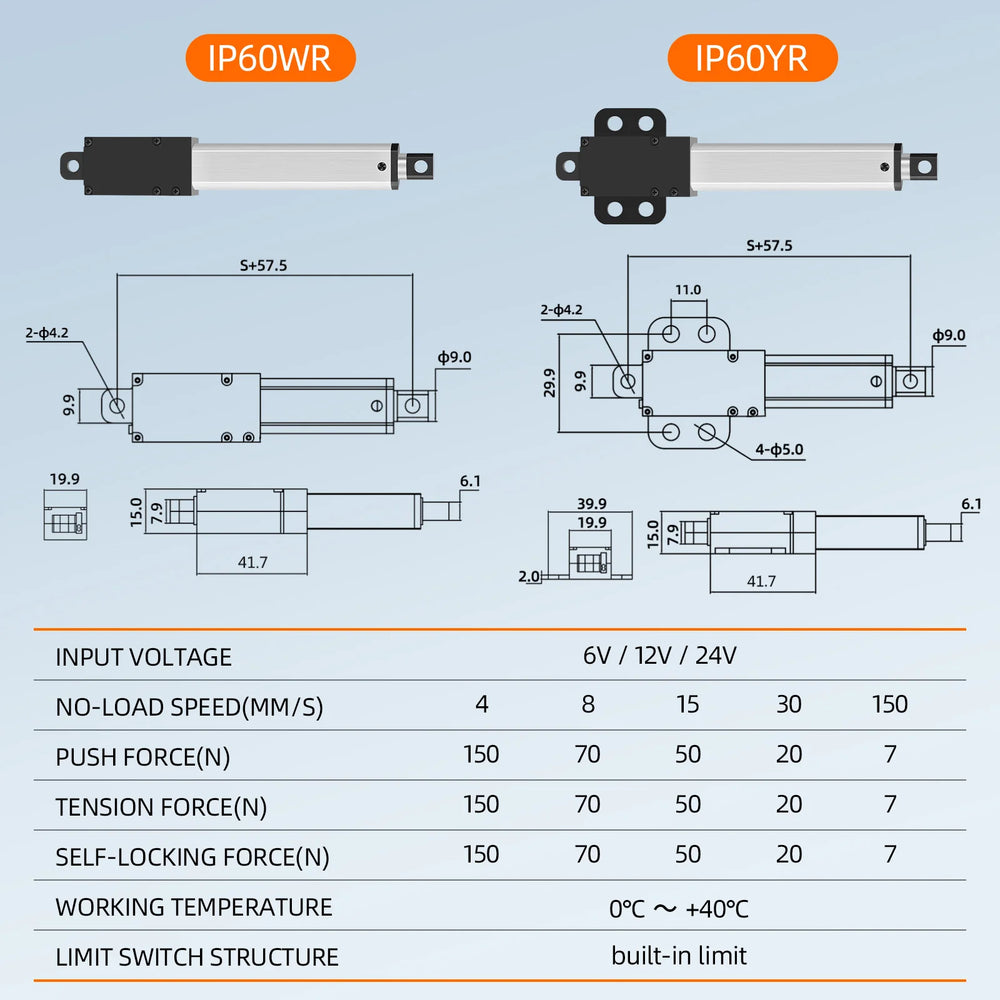

Dimensions
2-hole center distance measurement
