Mini telescopic linear actuator small micro 6V/12V/24VDC electric reciprocating lifting linear actuator stroke range 10-200mm

Mini telescopic linear actuator small micro 6V/12V/24VDC electric reciprocating lifting linear actuator stroke range 10-200mm

Mini telescopic linear actuator small micro 6V/12V/24VDC electric reciprocating lifting linear actuator stroke range 10-200mm

$31.92
Speed(RPM)
Voltage
Gear Count
Quantity:

SPECIFICATIONS

Brand Name: Hoodland

Certification: CE

Choice: yes

Color: Silver

Commutation: Brush

Construction: Permanent Magnet

Continuous Current(A): 0.25A

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 2

High-concerned chemical: None

Model Number: IP60

Origin: Mainland China

Output Power: <18.65,3W

Protect Feature: Drip-proof

Torque: 150N

Type: Micro Motor

Usage: BOAT,Car,Electric Bicycle,Fan,Home Appliance

semi_Choice: yes

Technical Parameters


Voltage (V)

DC 6/12/24V

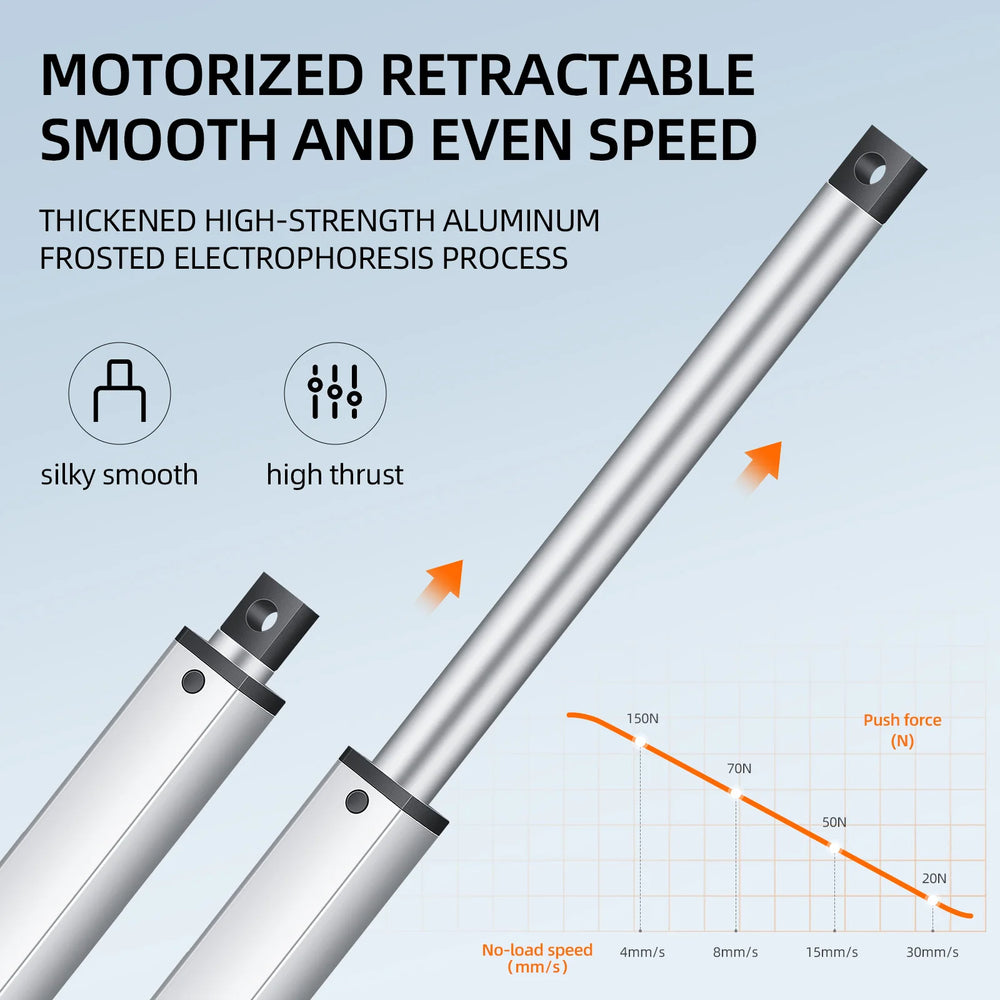

No-load speed (mm/s)

4

8

15

30

150

Load push capacity (N)

150

70

50

20

7

Load pull capacity (N)

150

70

50

20

7

Statoc damping (N)

150

70

50

20

7

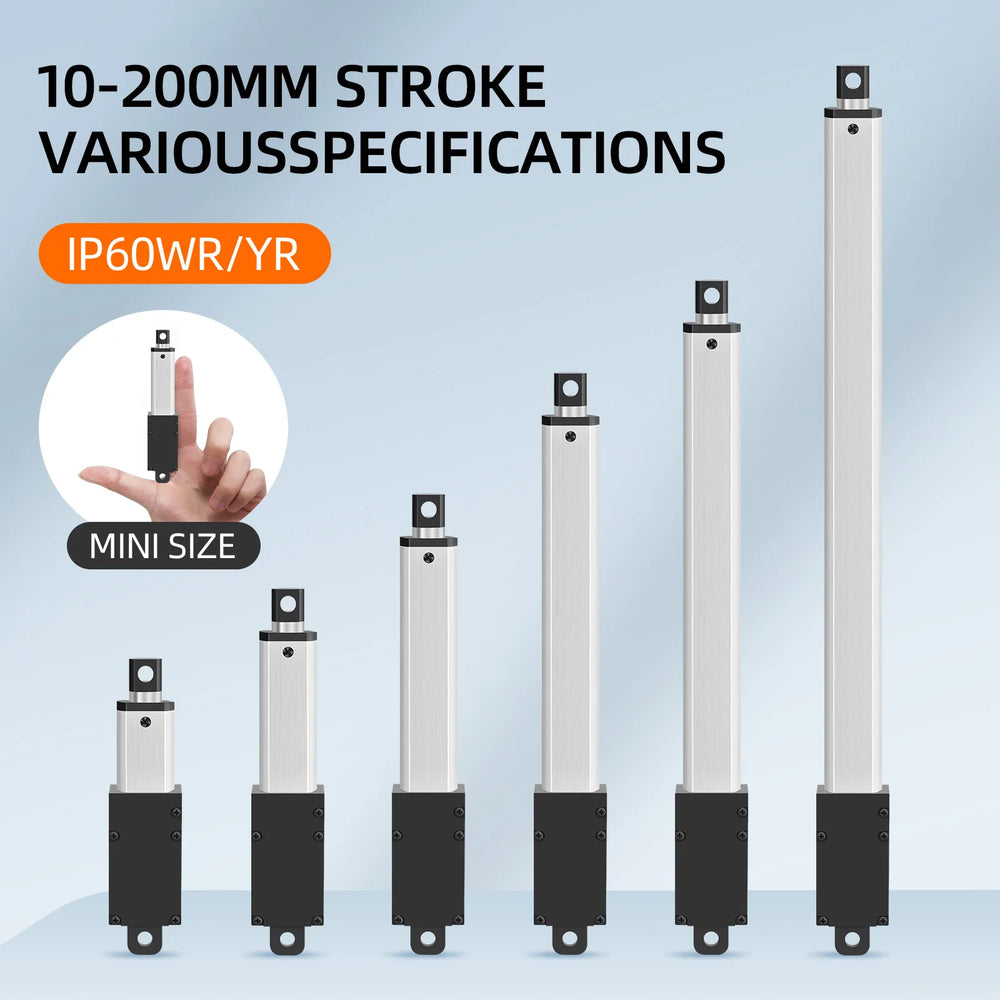

Stroke length (mm)

10mm,15mm,30mm,50mm,75mm,100mm,150mm,200mm

Operating temperature

-20~65

IP Grade

IP43

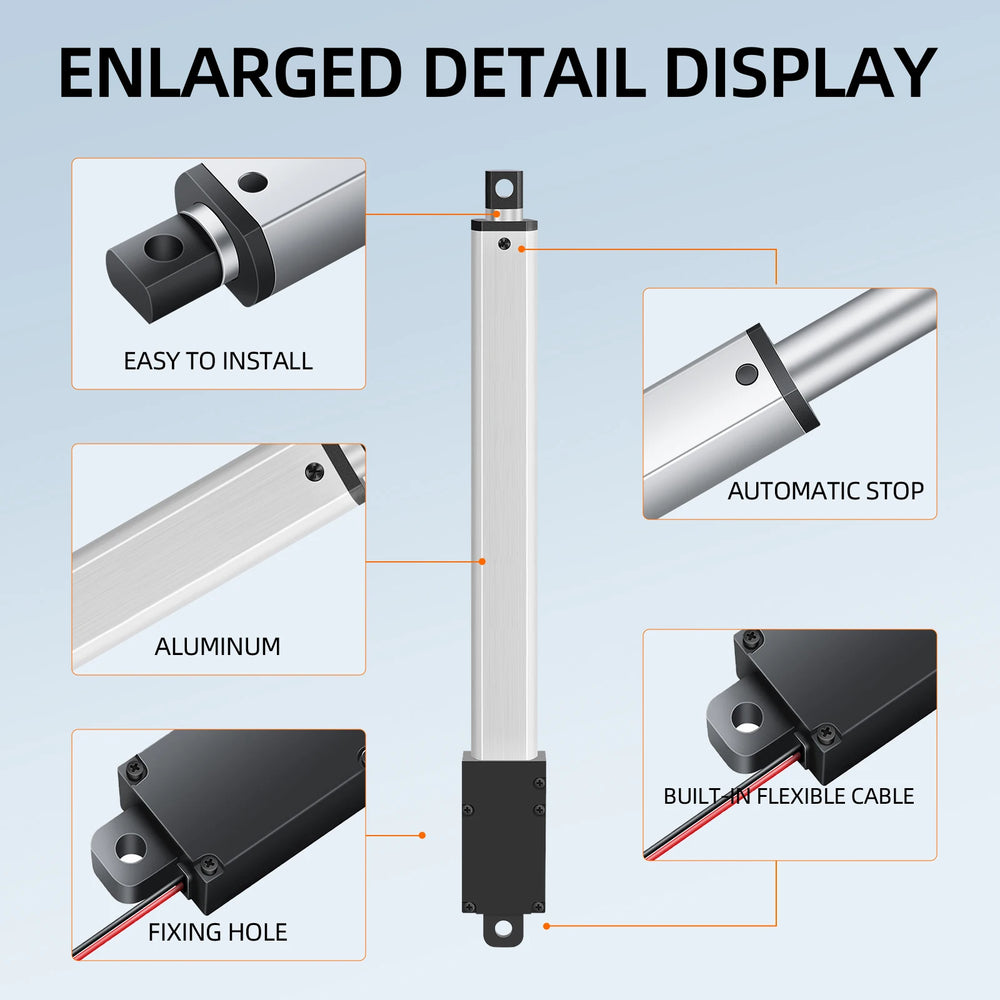

Limit switch

Built-in

Operating frequency

10% max 2min continuous use

Inner tube

Aluminum tube

Color

Silver gray

Lead screw type

T type

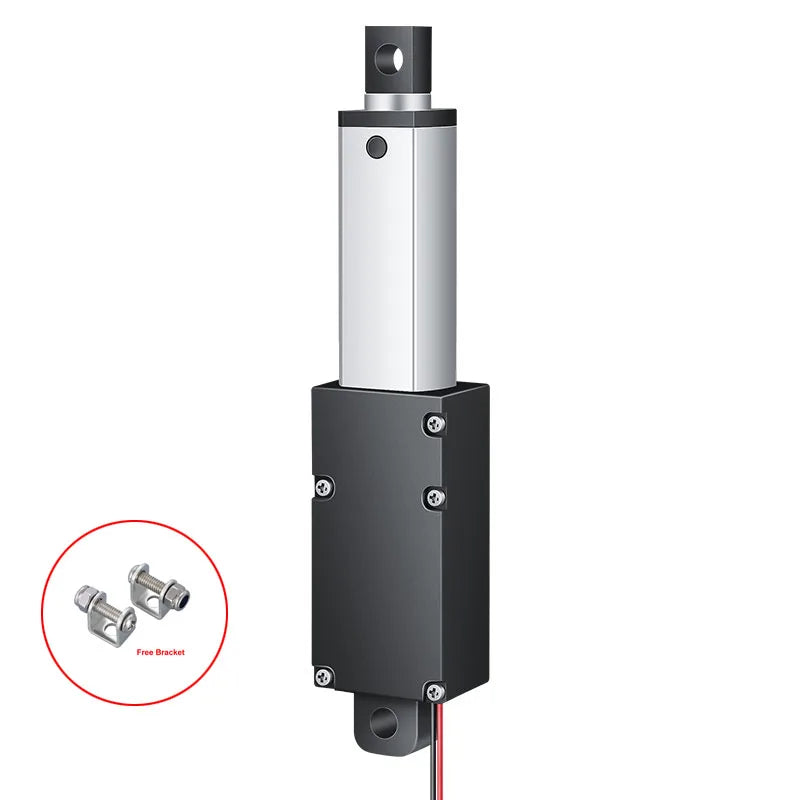

What's in the box

1 x Mini Electric Linear Actuator
2 x Mounting Bracket

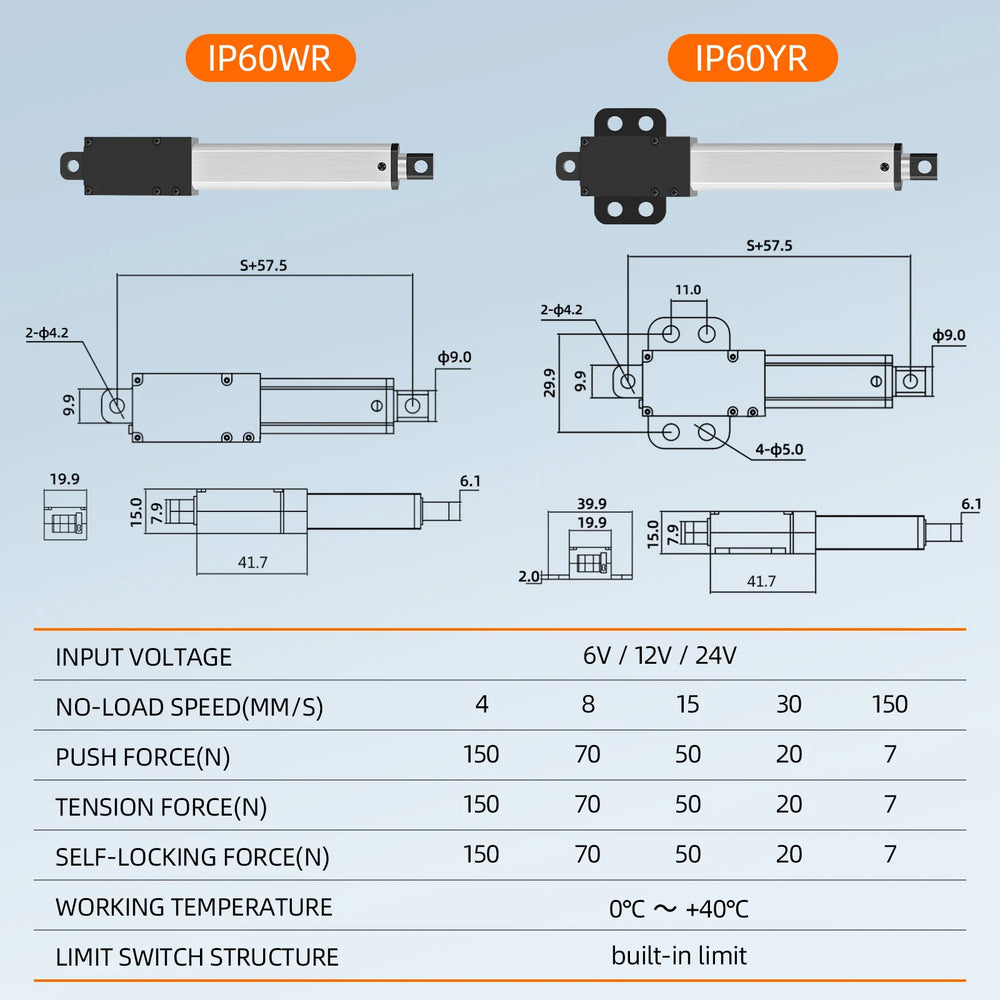

Dimensions

2-hole center distance measurement



Stroke length(mm)

Extend Length(mm)

Retracted Length(mm)

10

77.5

67.5

15

87.5

72.5

20

97.5

77.5

30

117.5

87.5

40

137.5

97.5

50

157.5

107.5

75

207.5

132.5

100

257.5

157.5

150

357.5

207.5

200

457.5

257.5
