SPECIFICATIONS
Application: Lathe, Mill, Drill, Boring machine etc.
Battery Included: No
Brand Name: SNSNTDRO
Certification: CE
High-concerned chemical: None
Input voltage: Big LCD display,AC110V/220V 50/60Hz
Interface Typ: DB9
LCD DRO Accessories: display cover, mounting bracket, user manual
Language: 19 (Chinese, English, Russian, French, Germany, Spanish etc.)
Linear Scale Accessories: with scale cover, screws and accessories
Model Number: YU800-3
Origin: Mainland China
Ouput: 5VDC
Output signal: TTL
Power: 25VA

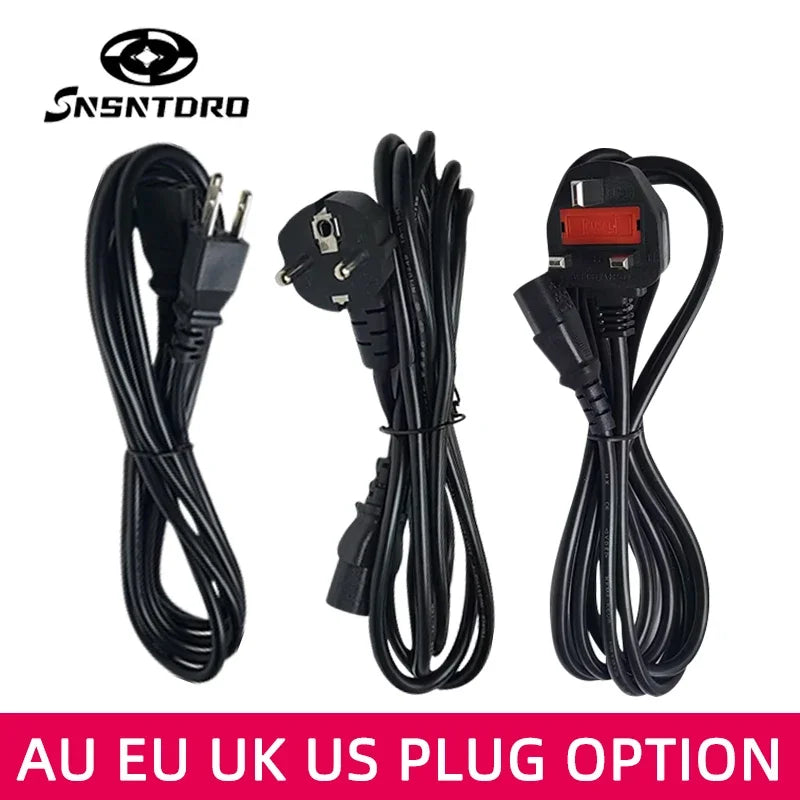

Power cable type: AU EU US UK etc.
Procut name: 3 Axis Lathe LCD DRO kit
Resolution: 0.005mm/5um&0.001mm/1um
Scale available travel length: 100mm-1000mm
Scale cable: 3 meters (longer available)
Warranty: 2 year
High precision YU800-3 3-axis lathe milling machine DRO digital readout kit, with 3 effective working strokes of 50mm-1000mm linear grating encoder optical grating ruler, accuracy of 5um/1um.
1.How to select scales length?
Scale length means scales working travel length.
After making order, please leave a message to seller with you needed scales travel length.
For model: NTS-M, 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 700, 750, 800, 850,900,950,1000 for choose.
For model: NTS-S, 50, 100, 150, 200, 250, 300, 350, 400, 450 for choose.
2.The order fee does not include any import taxes and duties and the buyer is responsible for the duties. Some countries require you to provide personal tax ID and corporate tax ID, please leave us a message or contact us.

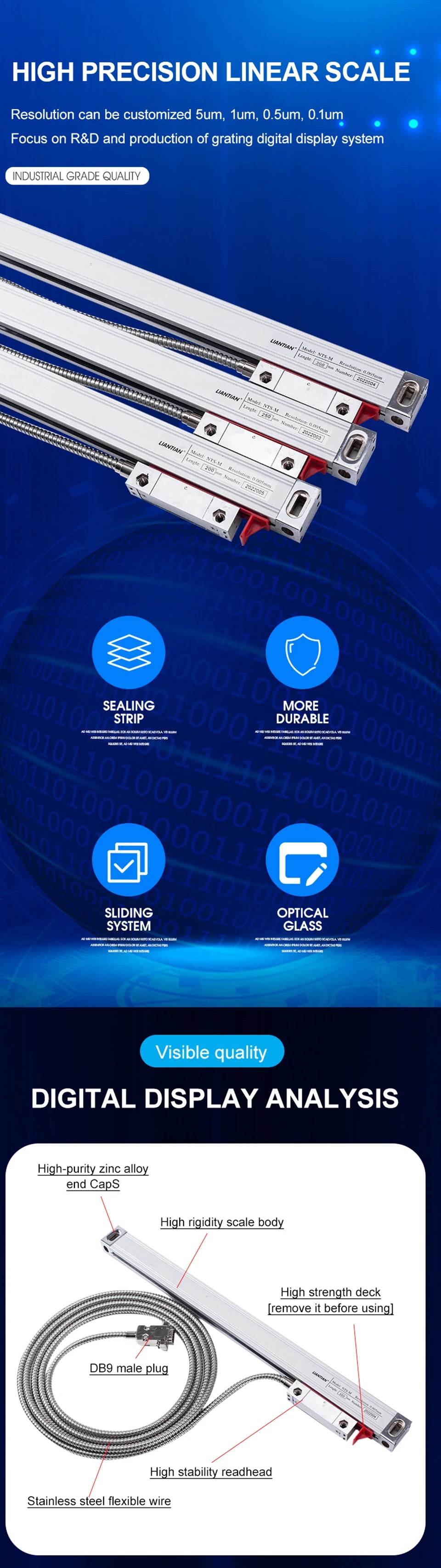

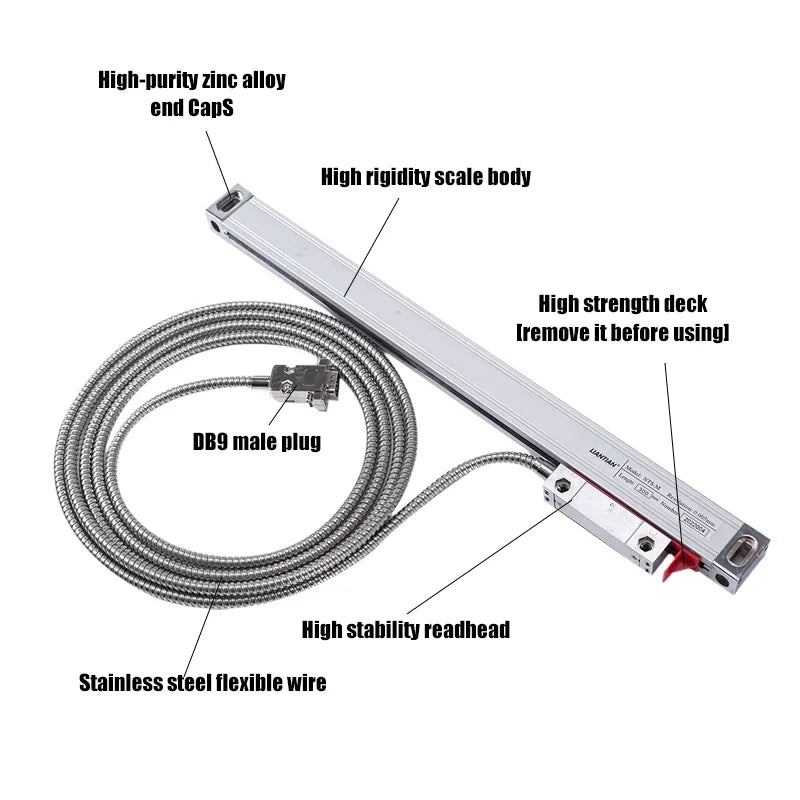

Linear scale parameter
Model: NTS-M/NTS-S (Thin ruler)
Available size: 0mm to 1000mm
Total length: Size +142mm
Dimensions Cross section dimensions: 22mmx34mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm & 1um/0.001mm
Cable length: 3 meters
There are ultra-thin scale 20mm * 27mm options, if necessary, please contact the seller or leave a message after placing an order.
Tips
For this price, you can choose any 3 scales with measuring lengths less than 1000 mm.
In fact, the scale can be made from 0-3000mm.
The scale length above refers to the actual stroke of the linear scale.
The actual physical length is 142 mm longer than the stroke.
1 inch equidistant to 25.4 mm.Contact the seller for more information.
We believe that good communication can ensure a smooth transaction.
After placing the order, please leave the information about the moving length or total length of X ,Y and Z scales you need, thank you.
What in package
0.005mm complete kit

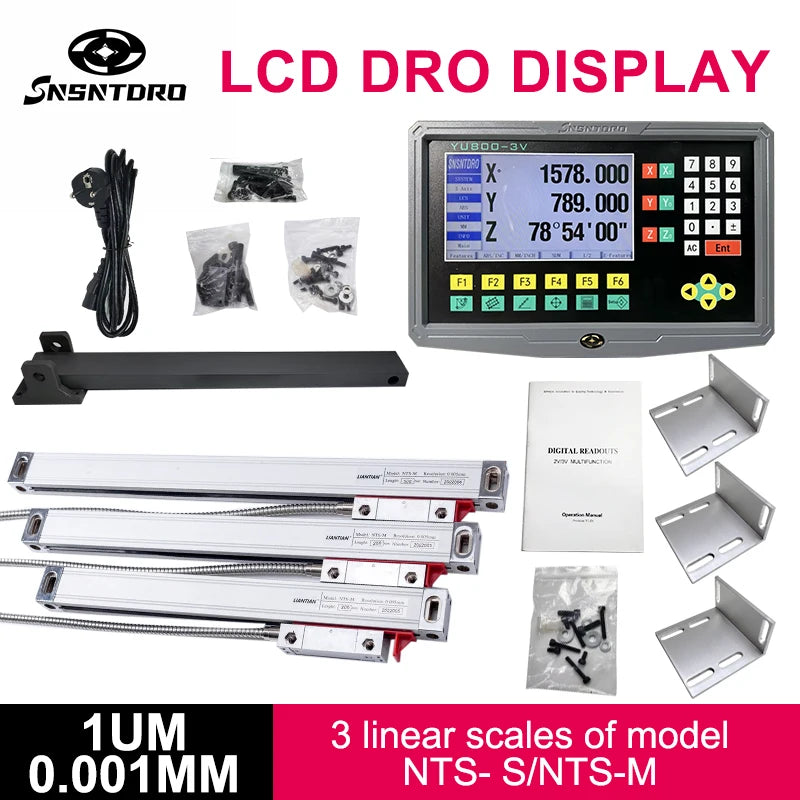

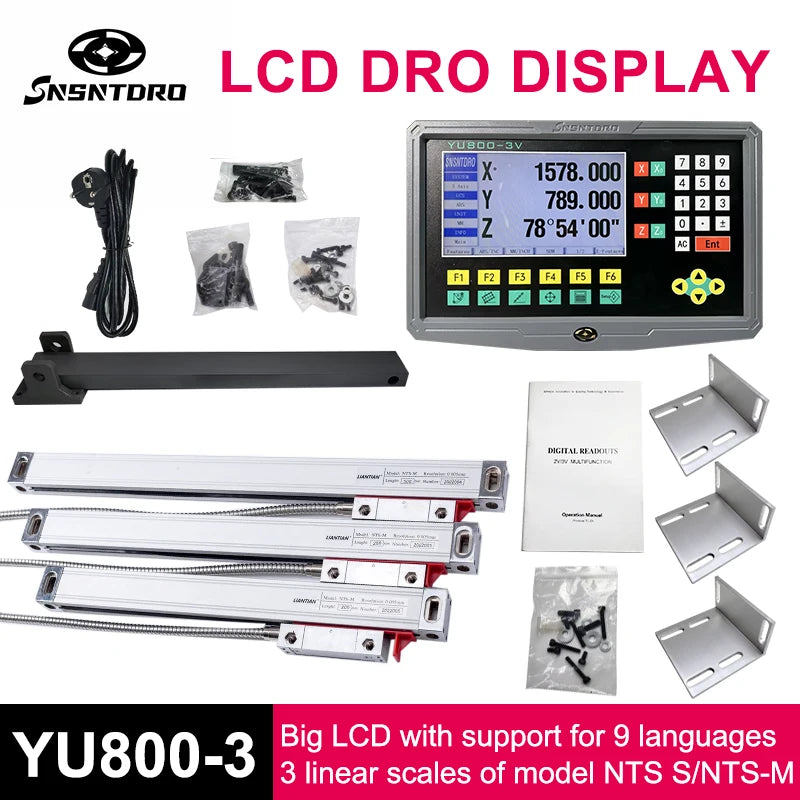

-1 piece LCD display, user manual, mounting bracket, power cable, screw bag
- 3 pieces 0.005mm 50mm-1000mm linear scales (with covers, mounting bracket, screw bag)
0.001mm complete kit
-1 piece LCD display, user manual, mounting bracket, power cable, screw bag
- 3 pieces 0.001mm 50mm-1000mm linear scales (with covers, mounting bracket, screw bag)

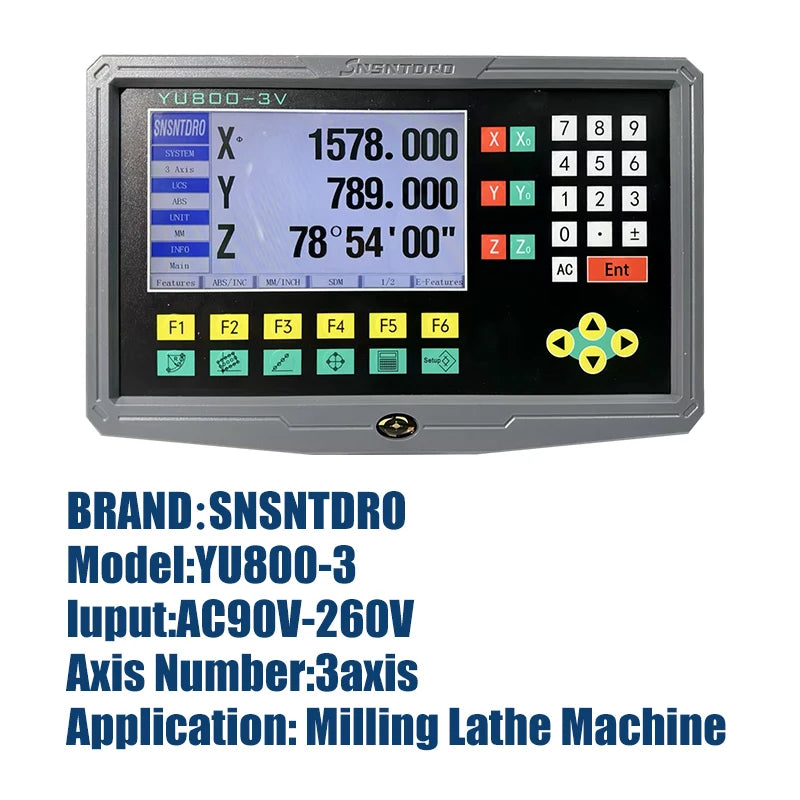

DRO features
DRO digital readout parameter
1.Voltage Range: AC 90V~260V/50HZ~60HZ
2.Acceptable Signal: TTL square wave/ EIA-442
3. Plug: DB9
4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um
Advantage
1. Full of feature & can widely used for mill, lathe, drilling, boring, wire cutting etc.
2. The wide voltage AC90-260V can be widely used in all over the world.
3. We offer US, AU, EU, UK different type plug suite for different countries if need.
4. It can be matched for Sino, Rational, Easson and all the China brand linear scales, very easy to operate.
5. Big LCD display, easy to read date when working.
Specifications

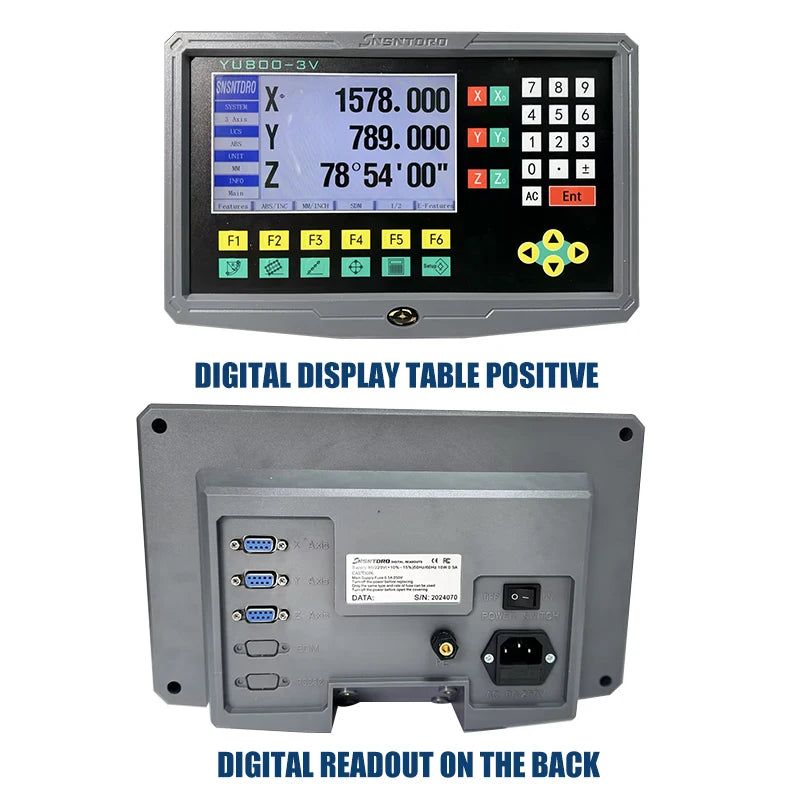

The YU800-3 offers a high performance universal display console with Milling, Lathe and Grinding functions.
This 3 axis model allow up to 3 linear encoders to be connected. Additional interfaces are available to combine axis or convert the input to suit other manufacturers equipment. Please see the encoder compatibility guide below.
Durable front panel membrane with tactile switches and robust die cast housing.

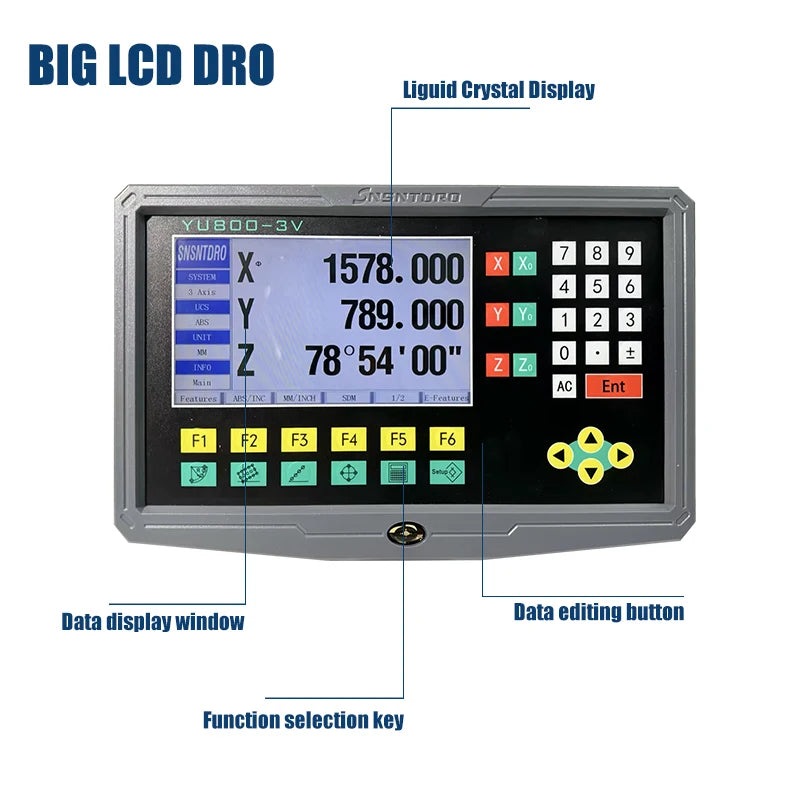

Large easy to read LCD display.
Functions include; PCD, line of holes, 200 zero memory, radius/diameter display, tool offsets.
The DRO YU800-3 is a Multifunctional 3 axis digital readout. It can adapt the different needs of machining by modifying the system parameters. It has many graphics machining functions, such as: Arc Calculation function, circular equally dividing holes, drilling hole along an oblique line, Angular Surface Processing, Calculation function, Measurement for Taper Function, Digital Filter Function. These functions bring the easiness for the graphics function. The available input frequency of DRO is up to 5MHZ with A/B, it is also advanced in the world, and it's the first manufactory who employs 16 and 32 bits calculator in DRO system in China.
Functions
200 Points Auxiliary Zero Position Function
Mid-split Function
"mm/inch" Conversion Display
Radius/Diameter Switch Display
Segmented Error Compensation
Linear Error Compensation
Power Interruption Memory
Sleep Switch
Mathematics calculation
RS-232-C ineterface (option)
Machining Functions
PCD circumferential division (Applicable to milling machine and spark tester)
Involute chamber machining function (Applicable to milling machine)
Bevel machining/Angular Surface Processing (Applicable to milling machine)
N3 function (Applicable to milling machine)
Diagonal boring (Applicable to milling machine)
R-arc function (Applicable to milling machine)
Taper measuring function (Applicable to lathe)
200-tool library (Applicable to lathe)
Anti-dithering function (Applicable to grinding machine)
Support languages：19
Chinese Simplified, Chinese Traditional, English, German, Spanish, French, Turkish, Portuguese, Russian, Korean, Japanese, Polish, Vietnamese, Italian, Ukrainian, Czech, Dutch, Slovenian

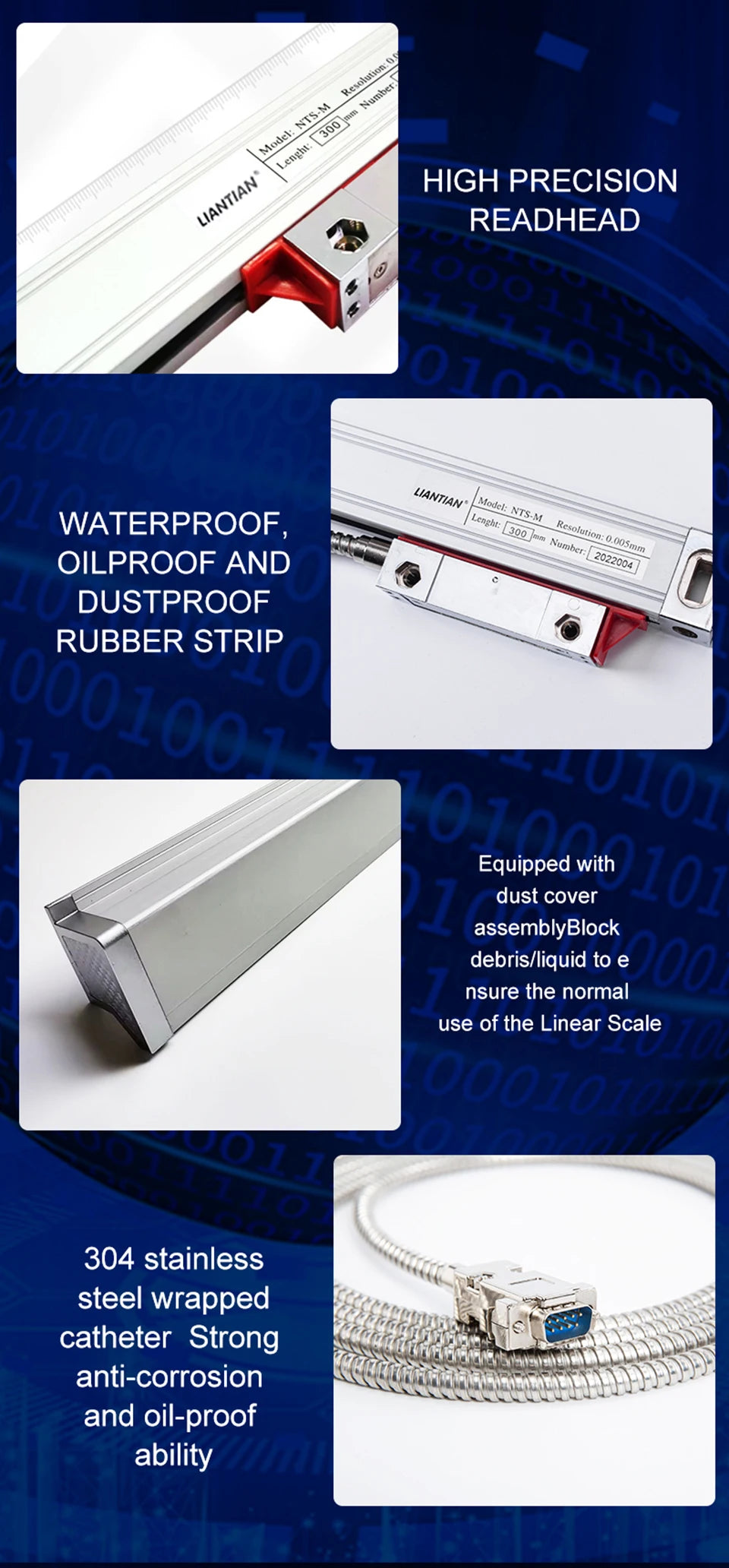

Scale feafures

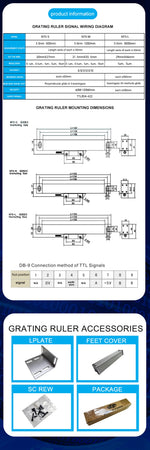

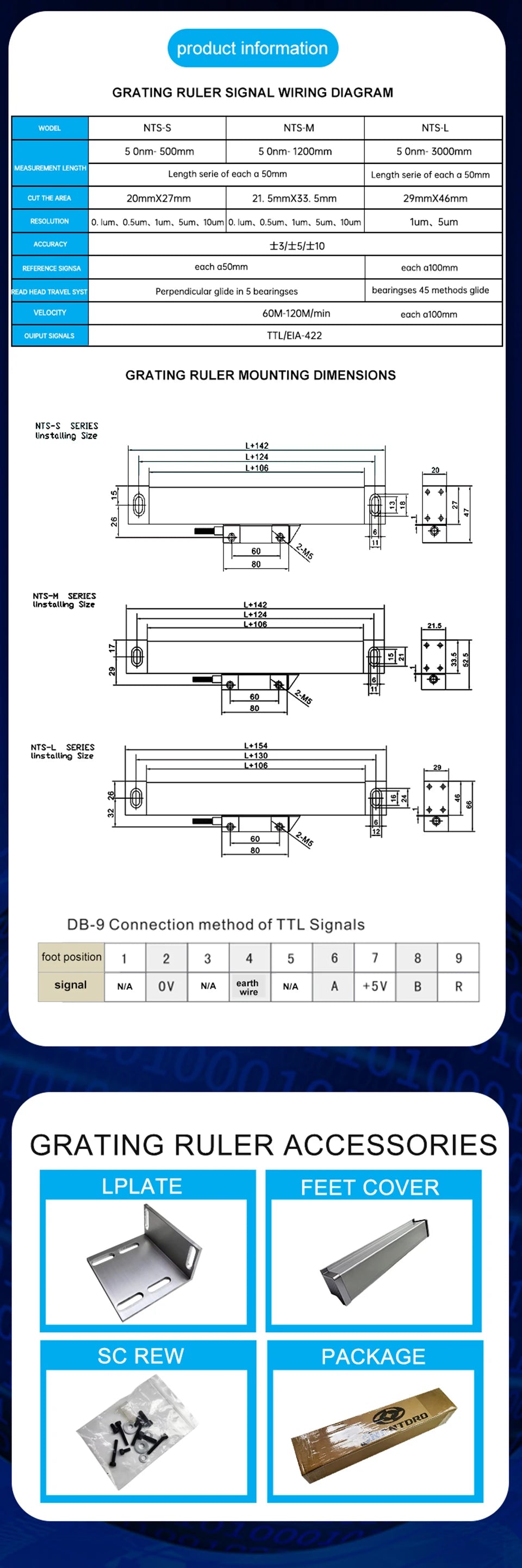

Parameter
Model: NTS-S,NTS-M
Available measurement: 450mm to 1000mm
Total length: measurement+142mm
Size cross section size: 21.5mmx33.5mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm or 1um/0.001mm
Cable length: 3meters
Tips (How to choose scales length?)
This order includes 1 pieces 3-axis DRO YU800-3 and 3 pieces linear scales with travel length between 50 to 1000mm, after order and payment please contact seller to write down you needed scales travel(measuring) length.
