SPECIFICATIONS
Accessories: display cover, mounting bracket, user manual
Application: lathe, milling, drill, CNC machine
Battery Included: No
Brand Name: SNSNTDRO
Certification: CE
DRO acceptable input: TTL EIA-422
DRO reading resolution: 0.5um, 1um, 2um, 5um, 10um
High-concerned chemical: None
If support rotary encoder: Yes
Input voltage: 110V-240V/50-60HZ
Matchable scales: EASSON, HXX, SINO, RATIONAL, DITRON, SINPO ETC.
Model Number: NT800-3
Origin: Mainland China
Power: 25W
Power cable type: AU EU US UK etc.
Scale input voltage: 5VDC
Warranty: 1 year
Description
NT800-3 High Precision Dro Set AC90-260V & 50-1000mm Linear Glass Scale Encoder Digital Ruler for Lathe Milling Machines
1. SNSNTDRO NT800-3 widely used for turning lathe, milling, boring, wiring cutting machine and CNC equipment etc.
2. Match all China brand TTL scales

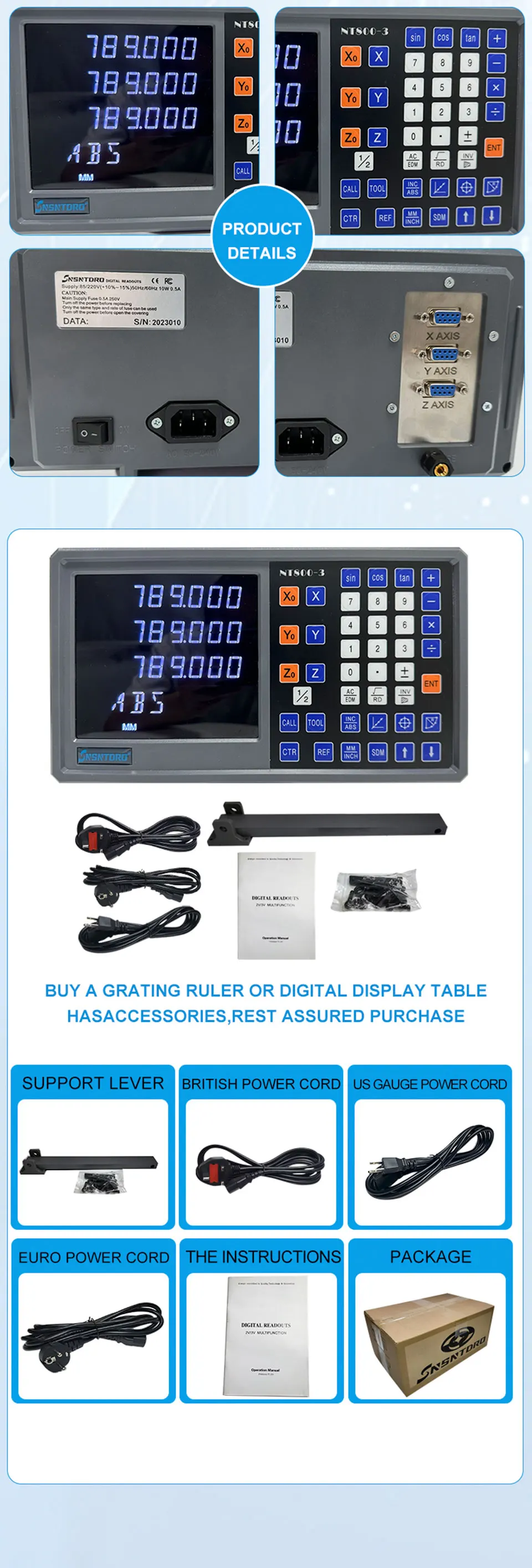

What in package
NT800-3 5um kit
-1 piece NT800-3display, display cover, mounting bracket, screw bag, user manual
-2 pieces 0.005mm 50mm-1000mm travel linear scales, scales covers, mounting brackets, screw bags
NT800-3 1um kit
-1 piece NT800-3 display, display cover, mounting bracket, screw bag, user manual
-2 pieces 0.001mm 50mm-1000mm travel linear scales, scales covers, mounting brackets, screw bags
DRO fufures

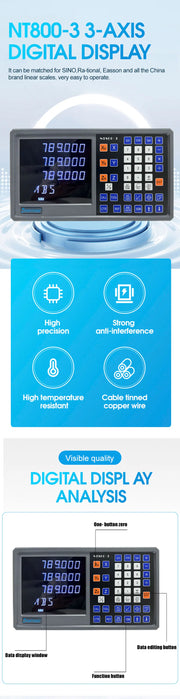

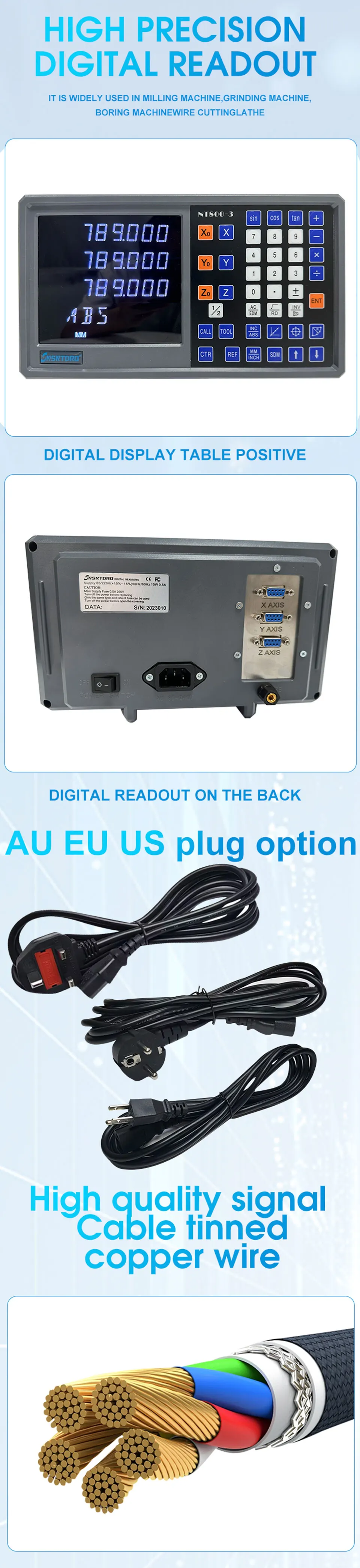

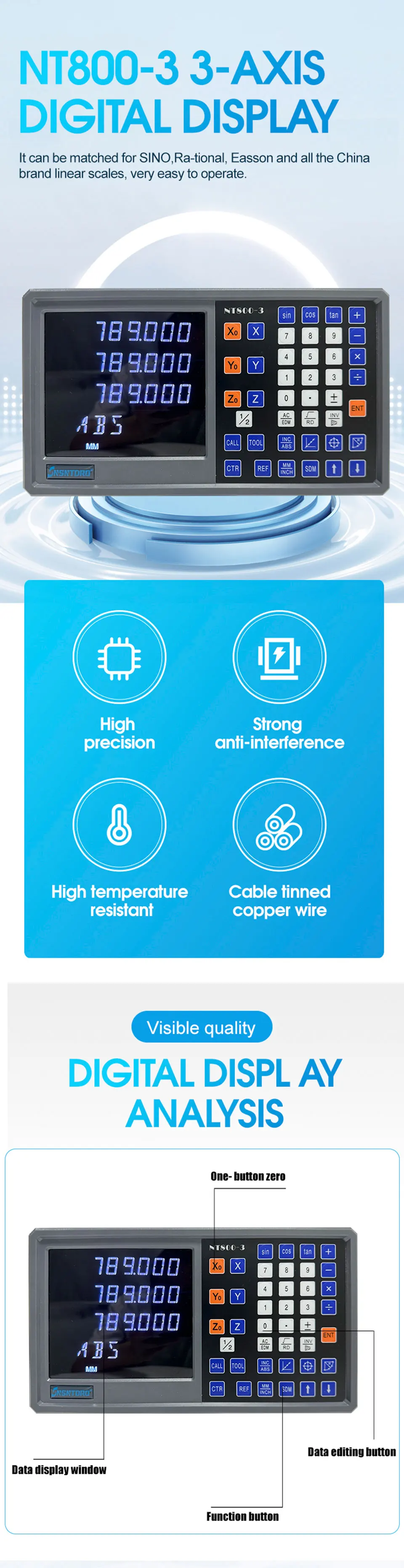

DRO digital readout parameter
1.Voltage Range: AC 90V~260V/50HZ~60HZ
2.Acceptable Signal: TTL square wave/ EIA-442
3. Plug: DB9
4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um
Advantage
1. Full of feature & can widely used for mill, lathe, drilling, boring, wire cutting & EDM machine.
2. The wide voltage AC80-250V can be widely used in all over the world.
3. We offer US, AU, EU, UK different type plug suite for different countries if need.
4. It can be matched for Sino, Rational, Easson and all the China brand linear scales, very easy to operate.
Function
1:zero clearing
2:reset
3:mm/inch mode
4:ABS/INC coordinate conversion
5: 200sets sub datum
6:power off Memory;
7:center of1/2
8:liner error compensation
9:sleepping mode
10:Clear 200 sets Sdm datum;
11:ABS/INC mode
12:calculator
13:drilling of circumference
14:drilling of oblique line
15:machining of inclined plane
16:machining of circular arc
17:lathe function(match)
18:Rectangular lumen gradual processing
19:digital filtering
20:vibration filtering
21: Lathe function
21: Daimater/Radius function

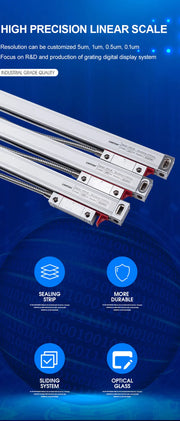

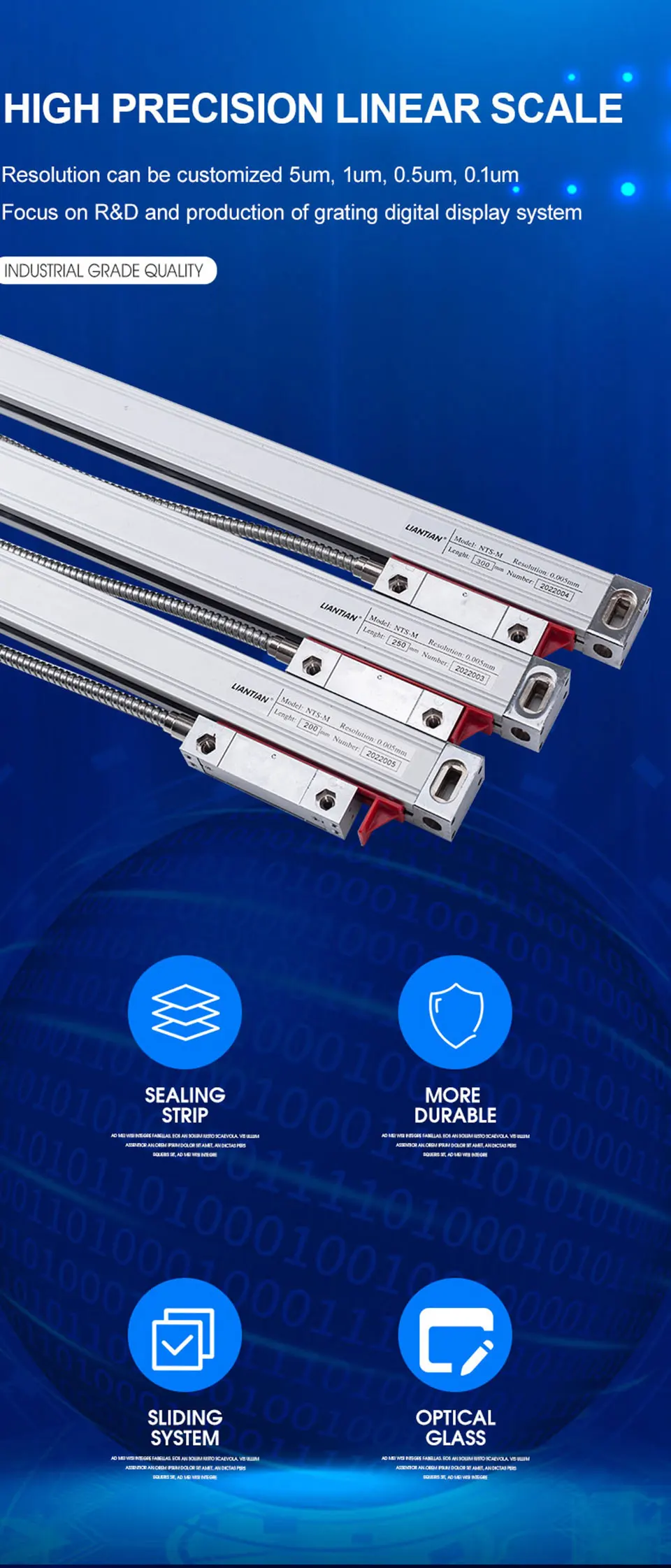

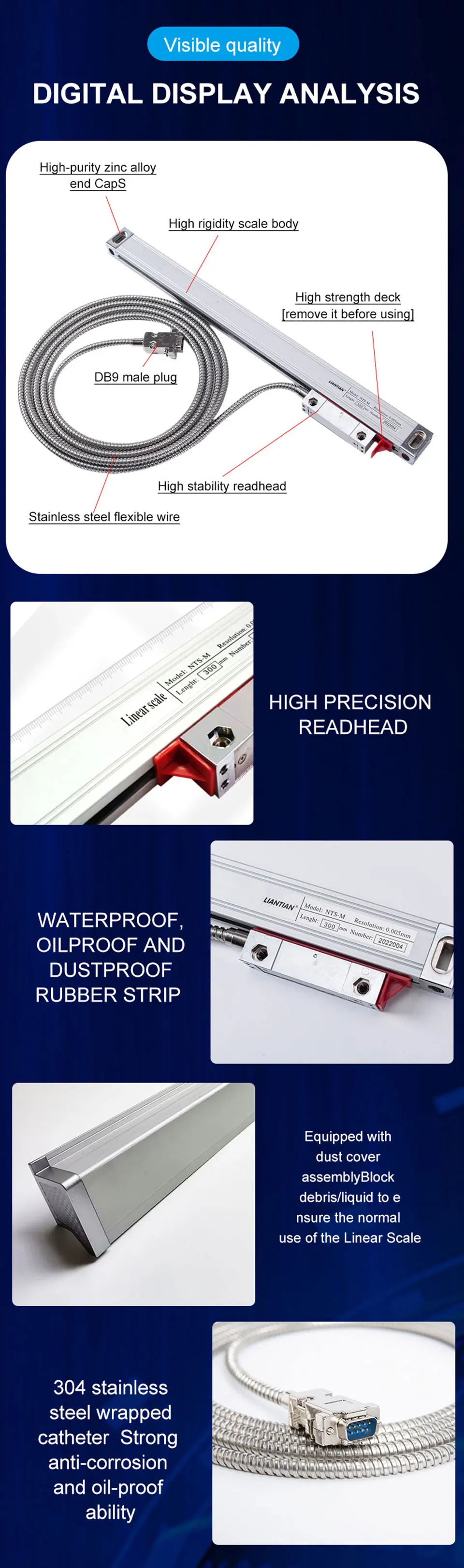

Scale feafures Parameter
Model: NS-S,NT-M
Available measurement: 50mm to 1000mm
Total length: measurement+142mm
Size cross section size: 21.5mmx33.5mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm or 1um/0.001mm
Cable length: 3meters
Model: NS-S,NT-M
Available measurement: 50mm to 1000mm
Total length: measurement+142mm
Size cross section size: 21.5mmx33.5mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm or 1um/0.001mm
Cable length: 3meters
Tips
The Package doesn't include scales, please contact seller if scales needed.
