NEW SDS200S 3VA DRO 2 3 4 Axis Digital Readout Milling Lathe LCD DRO 110V /220V Display Counter Screen Monitor 3 Axes Indicator
SPECIFICATIONS
Battery Included: No
Brand Name: NONE
Certification: CE
DRO Input Voltage: AC100V-240V 50/60HZ
DRO Resolution: 0.1um-50um
DRO output: 5VDC
High-concerned chemical: None
Origin: Mainland China

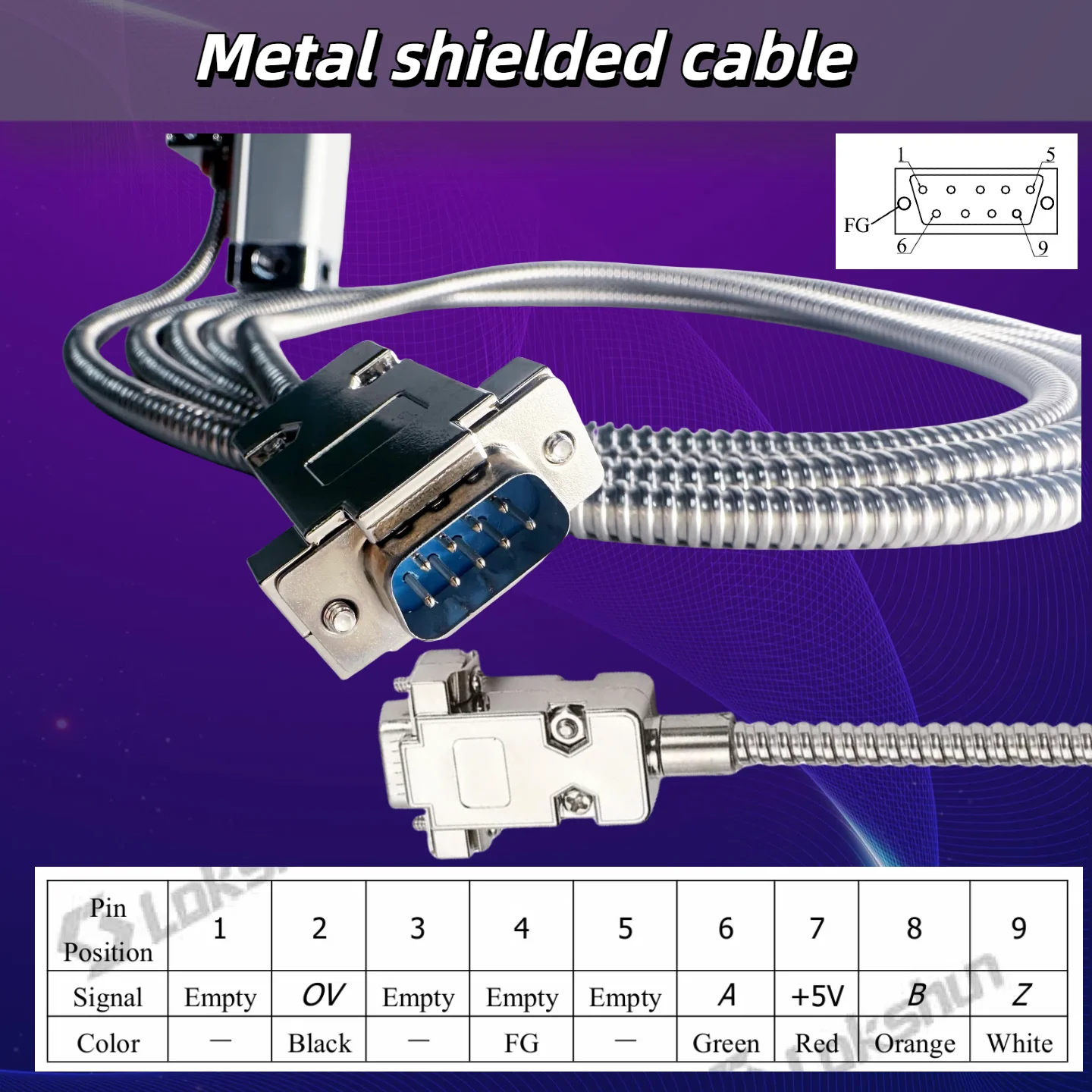

Scale Cable: 3 Meters
Scale Input: 5VDC
Scale Resolution: 5um or 1um
Signal: TTL
Warranty: 2 Years
Package includes:
Only SDS3VA DRO

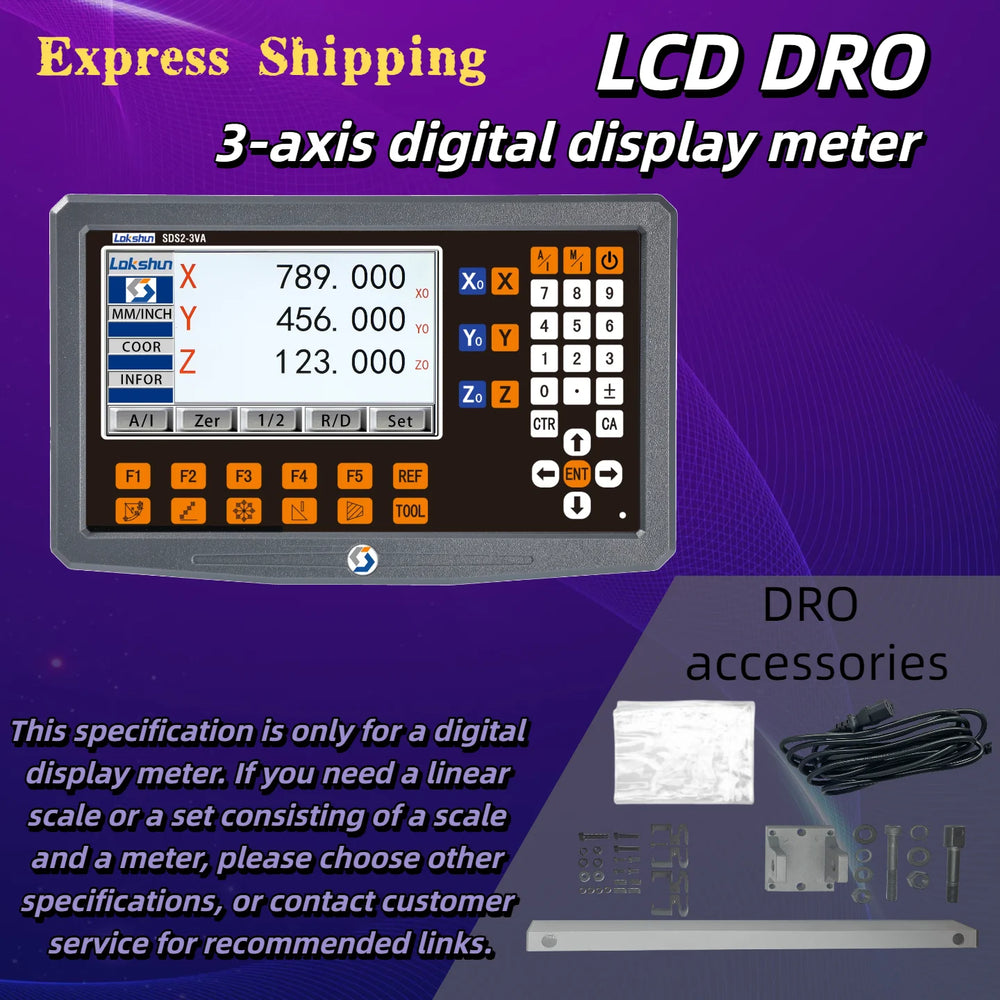

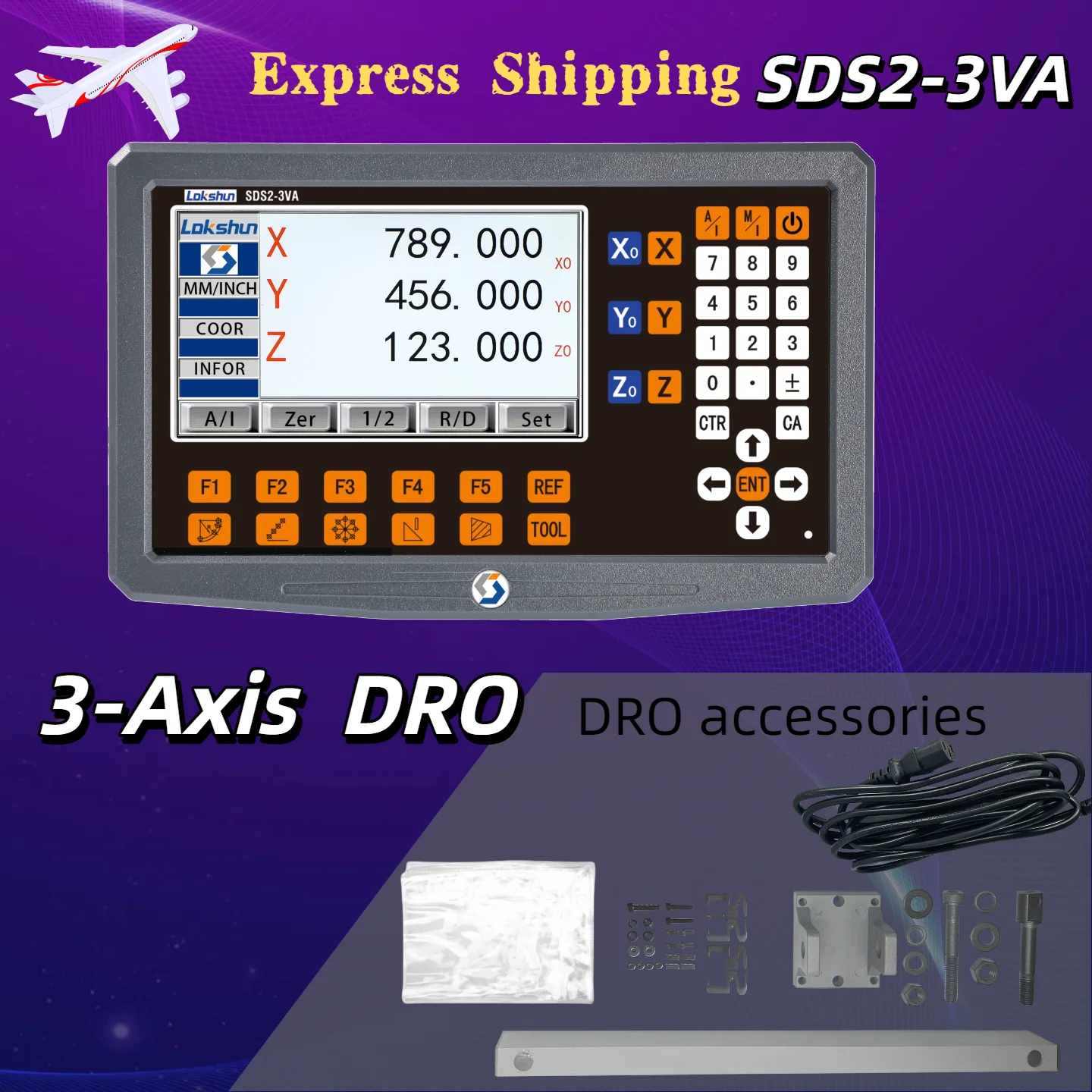

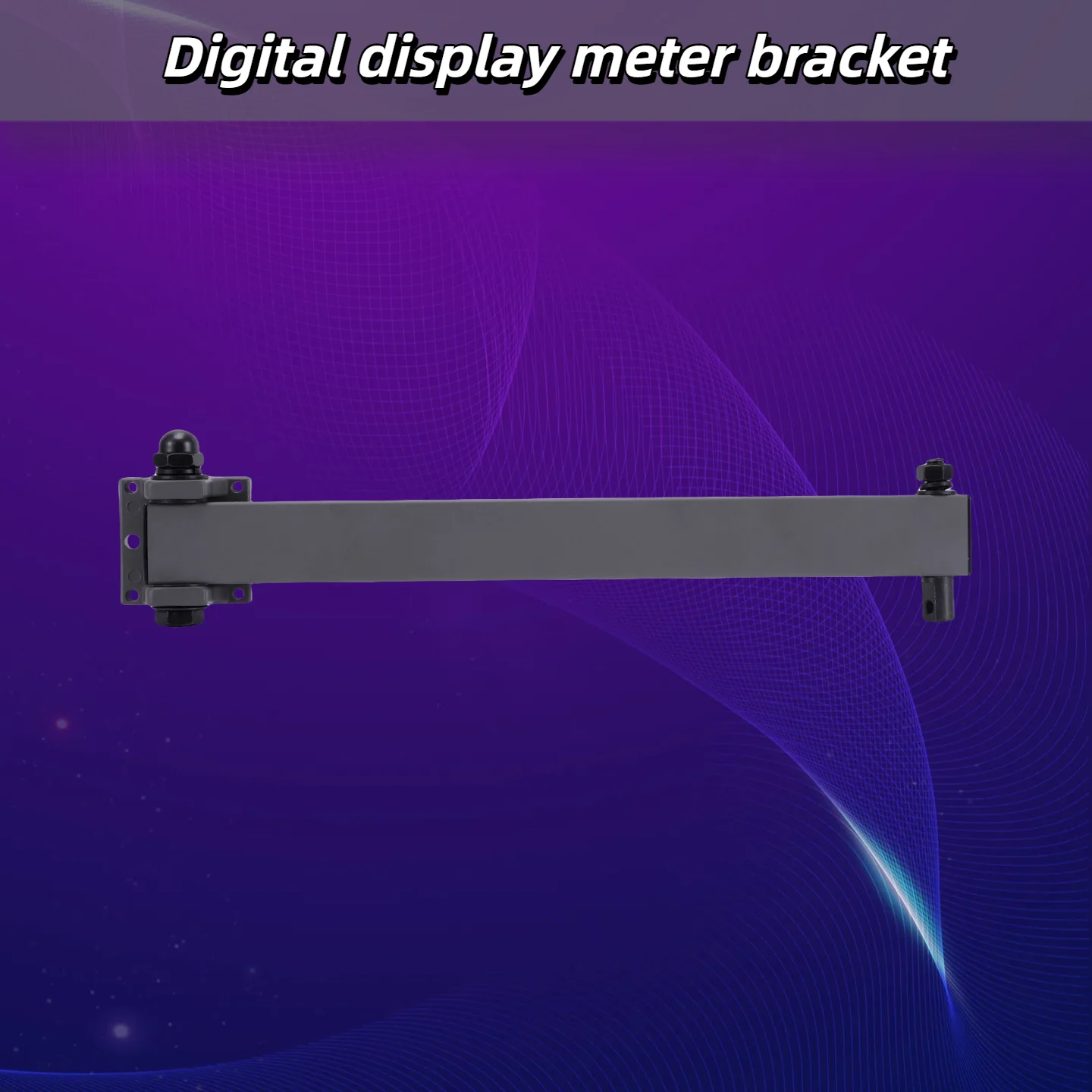

1 piece SDS3VA 3 axis display(with user manual, power cord, mounting arm, screw bag)

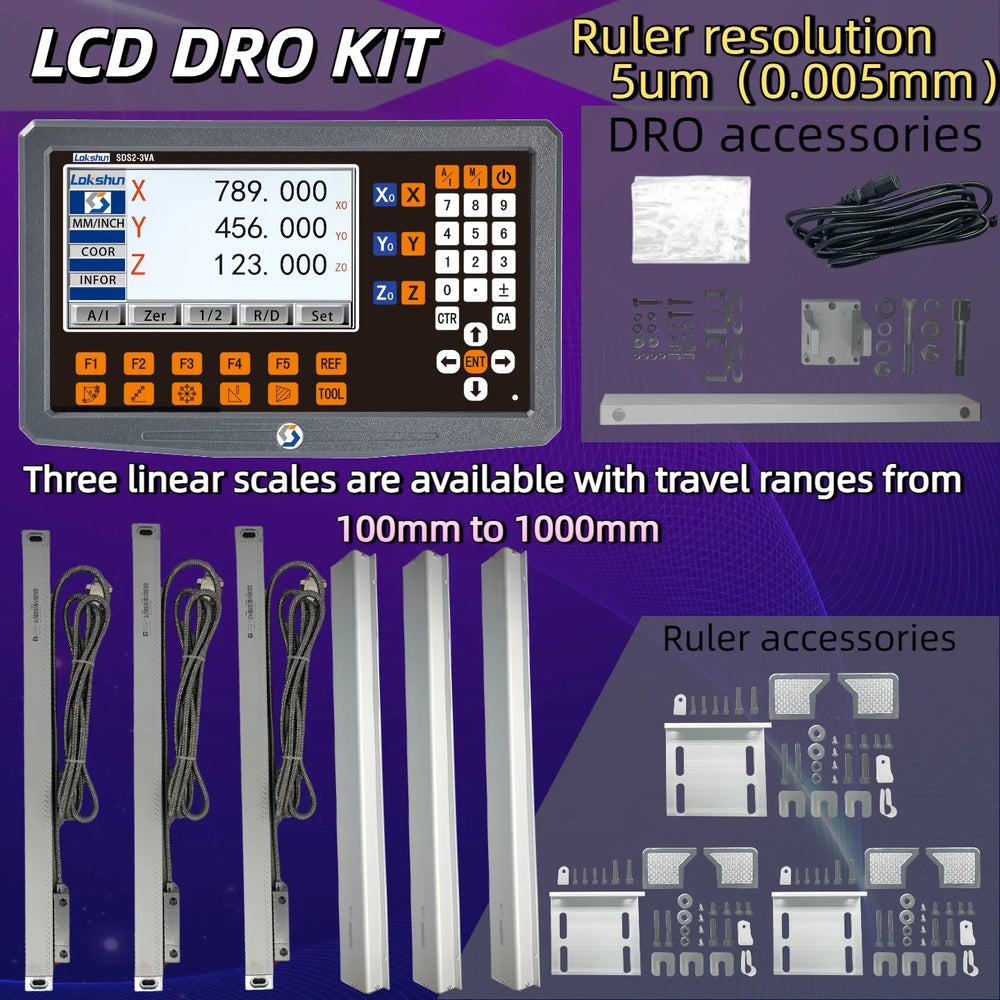

5um SDS3VA kit
1 piece SDS3VA 3 axis display(with user manual, power cord, mounting arm, screw bag)
3 pieces 0.005mm(KA35+KA35+KA35) linear scales (with covers, mounting bracket, screw bag)

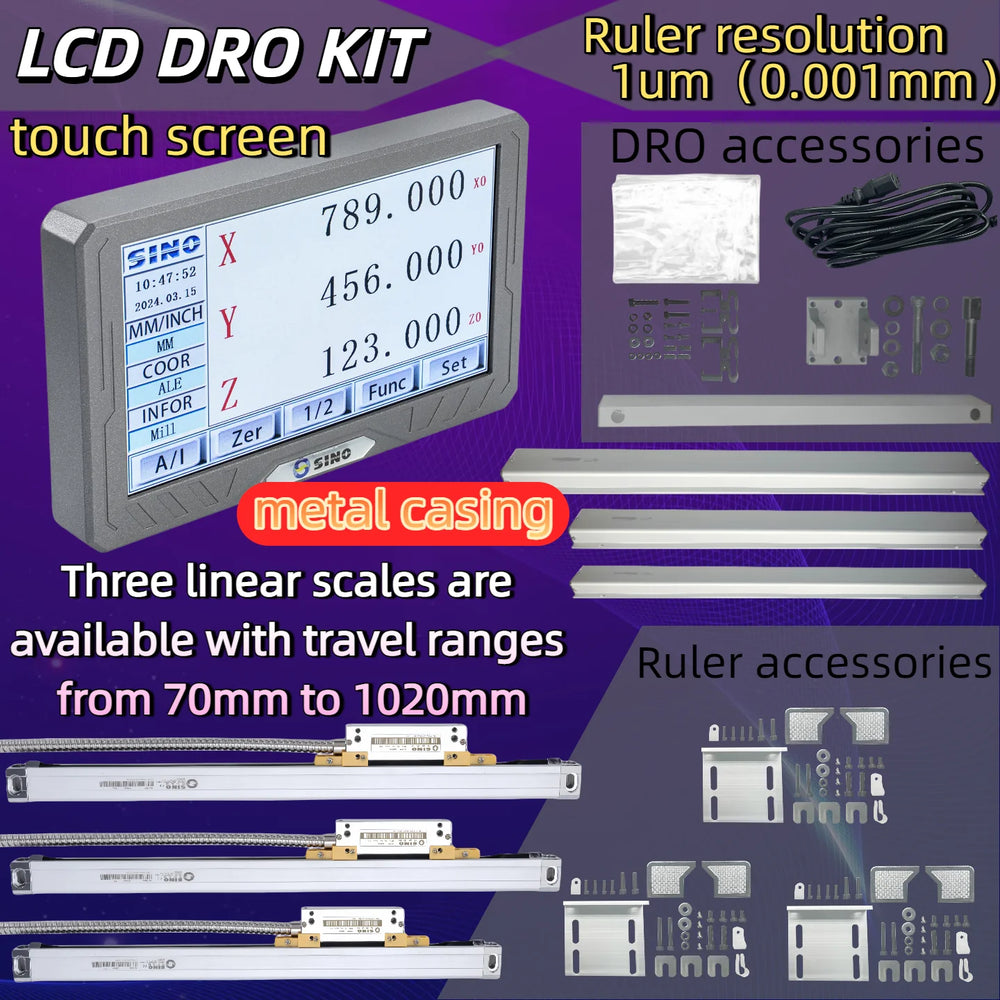

1um SDS3VA kit

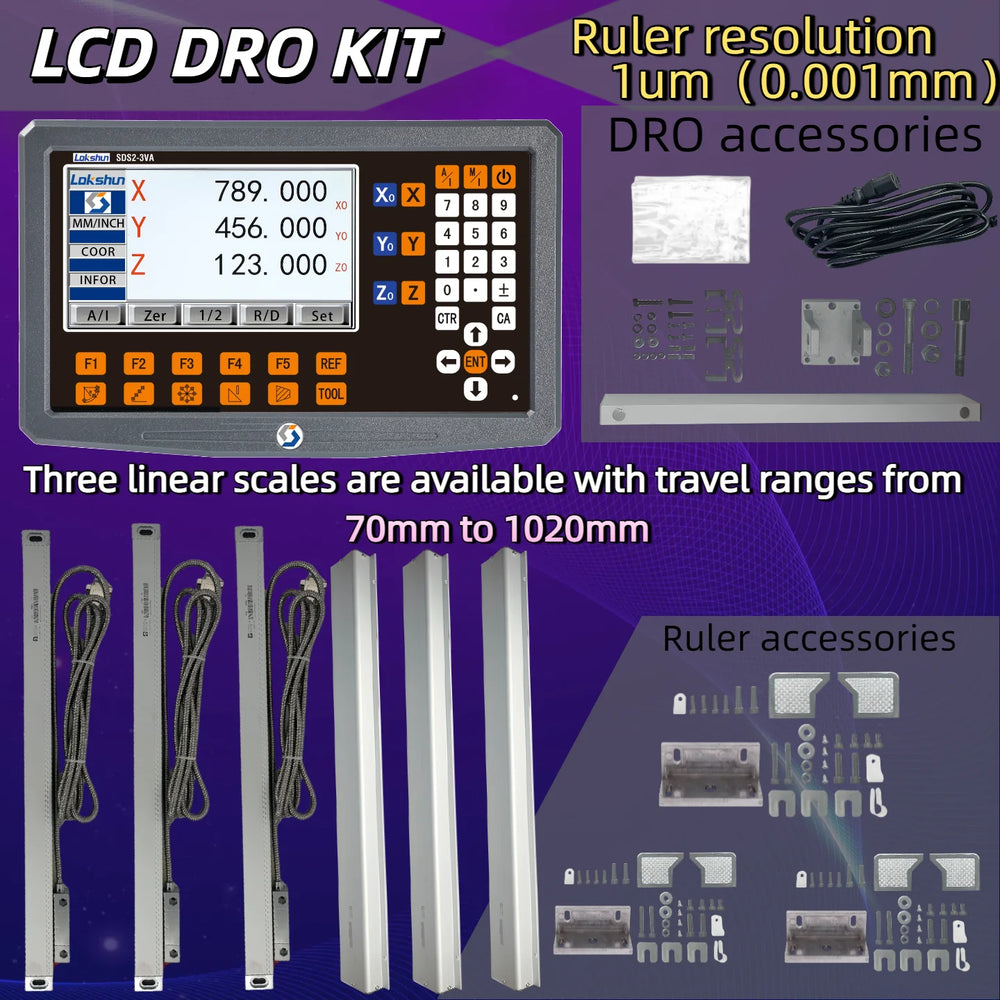

1 piece SDS3VA 3 axis display(with user manual, power cord, mounting arm, screw bag)
3 pieces 0.001mm(KA300+KA300+KA300) linear scales (with covers, mounting bracket, screw bag)
Only SDS3-1 DRO

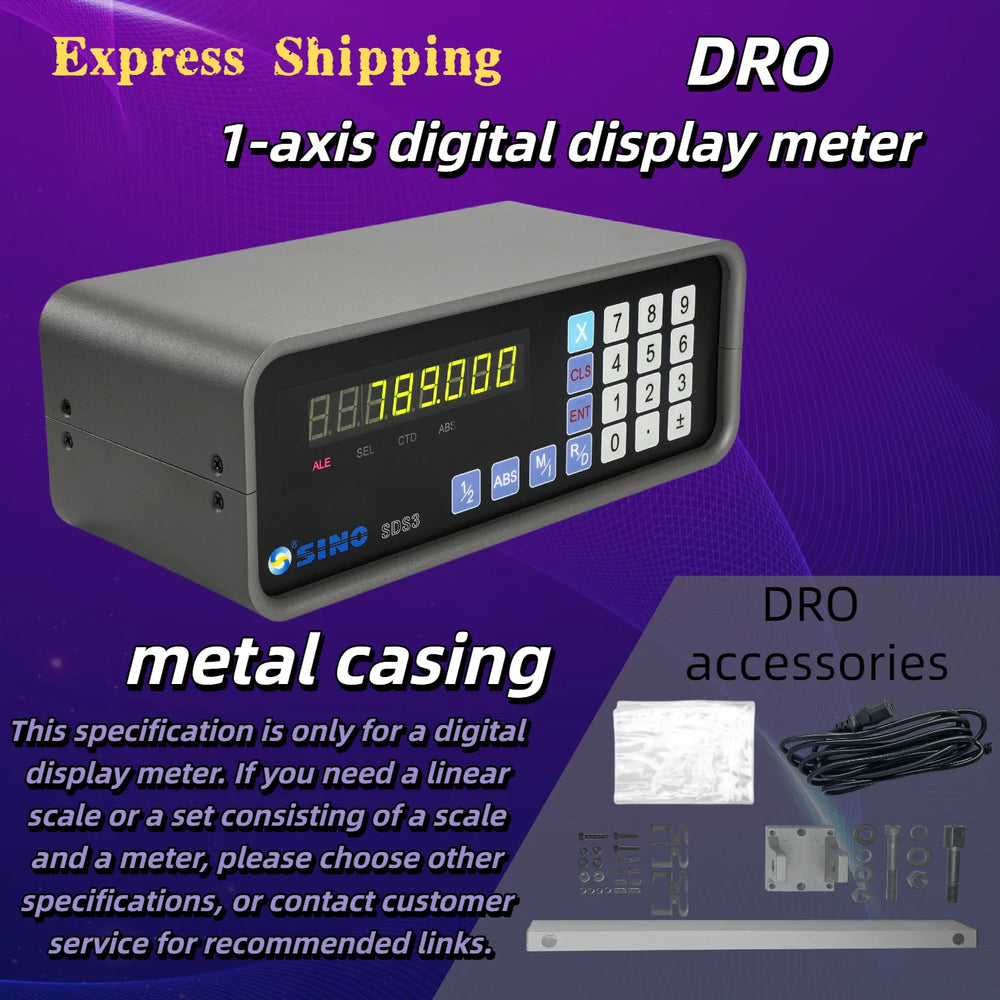

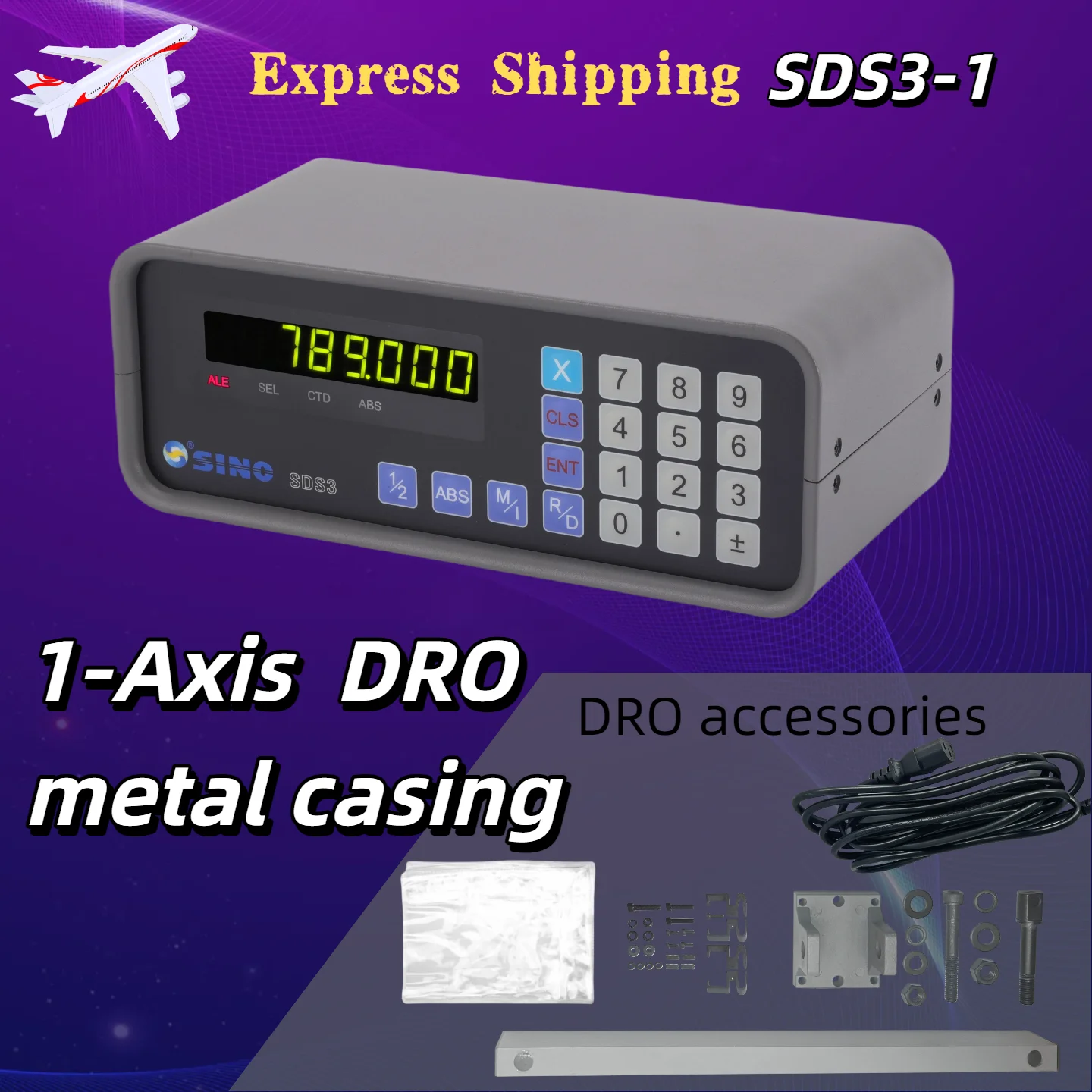

1 piece SDS3-1 1 axis display(with user manual, power cord, mounting arm, screw bag)
5um SDS3-1 kit
1 piece SDS3-1 1 axis display(with user manual, power cord, mounting arm, screw bag)
1 piece 0.005mm(KA35) linear scales (with covers, mounting bracket, screw bag)
1um SDS3-1 kit
1 piece SDS3-1 1 axis display(with user manual, power cord, mounting arm, screw bag)
1 piece 0.001mm(KA300) linear scales (with covers, mounting bracket, screw bag)
Only SDS200S DRO

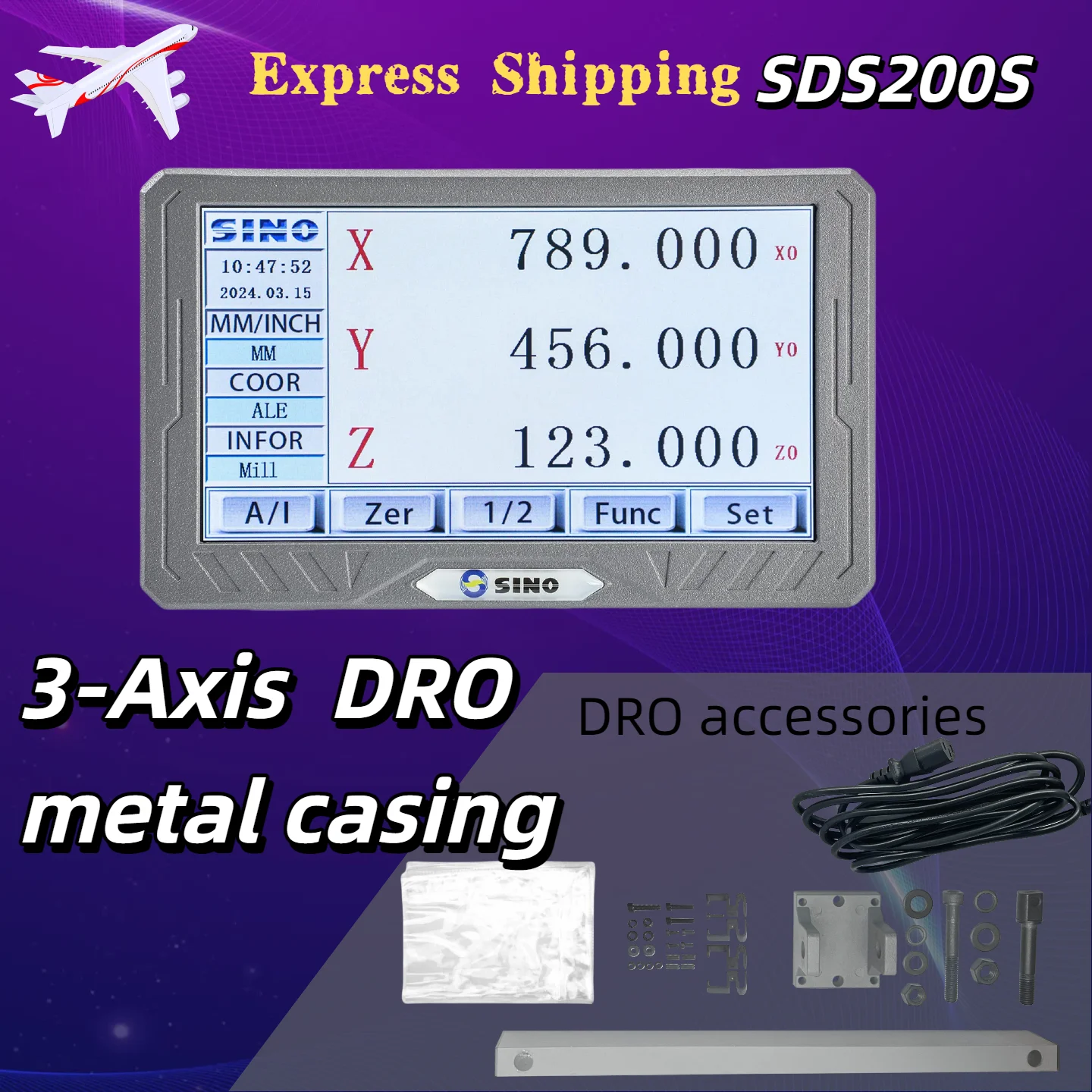

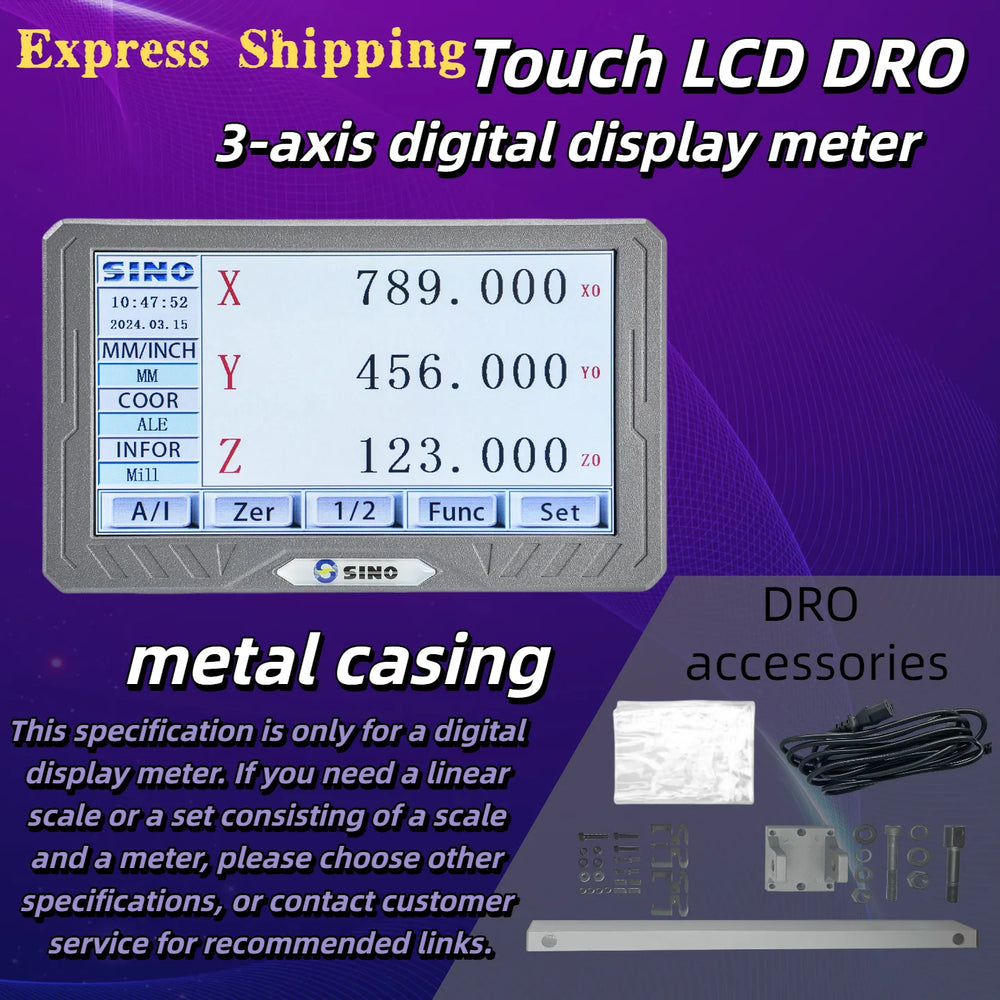

1 piece SDS200S 3 axis display(with user manual, power cord, mounting arm, screw bag)

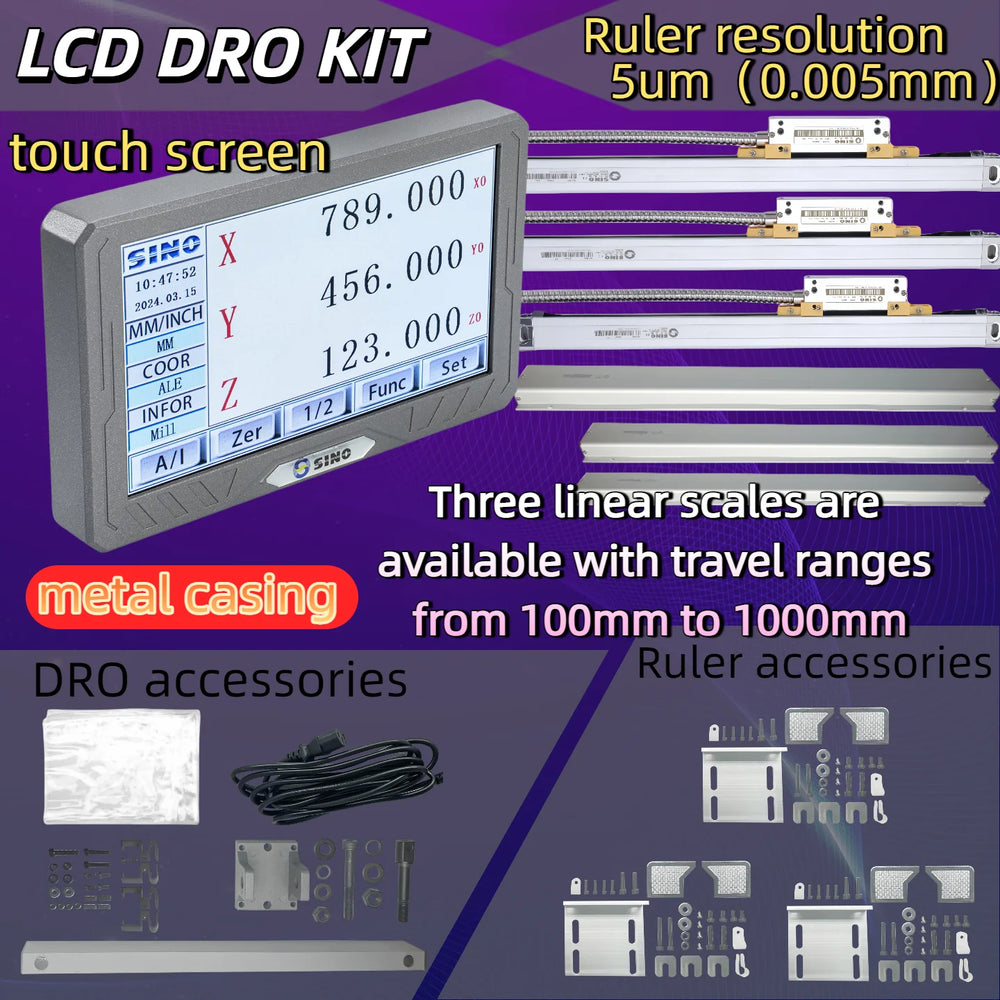

5um SDS200S kit

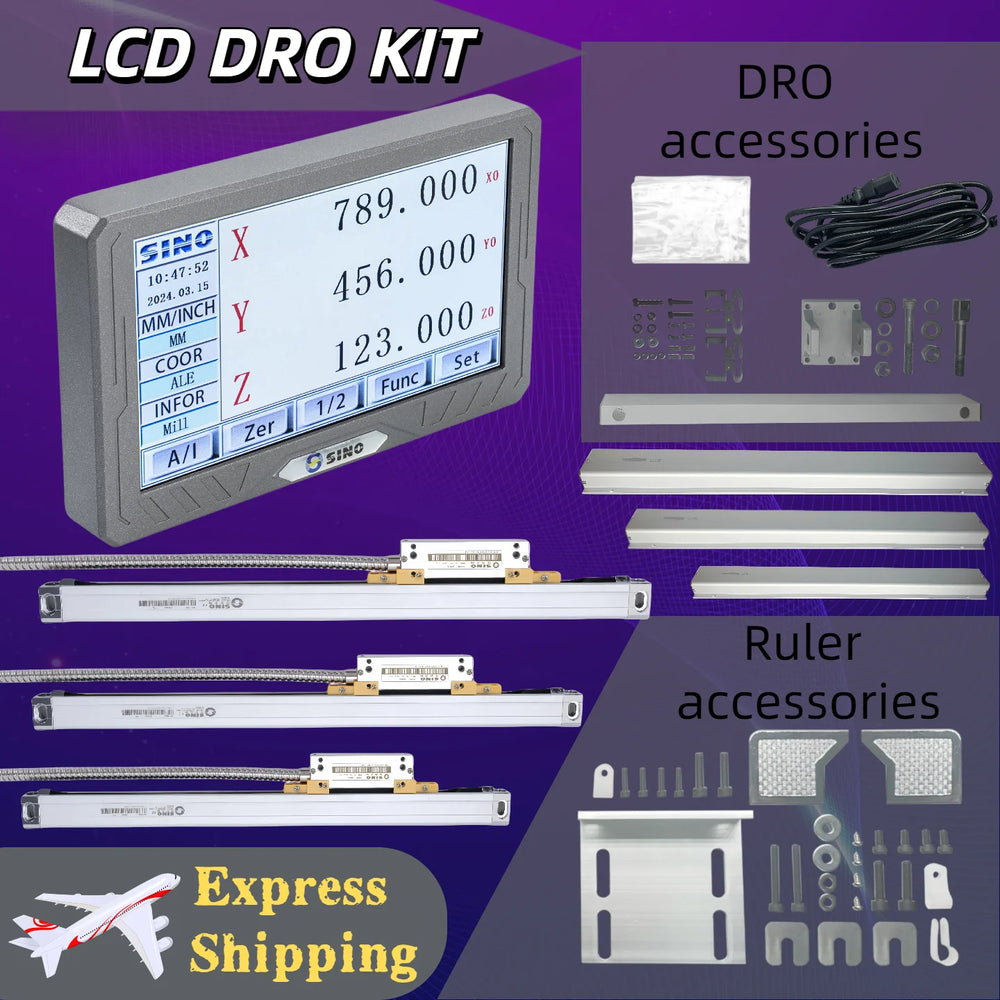

1 piece SDS200S 3 axis display(with user manual, power cord, mounting arm, screw bag)
3 pieces 0.005mm(KA35+KA35+KA35) linear scales (with covers, mounting bracket, screw bag)
1um SDS200S kit
1 piece SDS200S 3 axis display(with user manual, power cord, mounting arm, screw bag)
3 pieces 0.001mm(KA300+KA300+KA300) linear scales (with covers, mounting bracket, screw bag)
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
How to select scales length?
For model: KA35, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm for choose.
For model: KA300, 70mm, 120mm, 170mm, 220mm, 270mm, 320mm, 370mm, 420mm, 470mm, 520mm, 570mm, 620mm, 670mm, 720mm, 770mm, 820mm, 870mm, 920mm, 970mm, 1020mm for choose.
Scale length means scales working travel length.
After making order, please leave a message to seller with you needed scales travel length.
【5um】 SDS3VA kit / 【5um】 SDS200S kit : If there is no message left, we will deliver the goods according to the travel lengths of 200mm and 300mm and 800mm.
1um SDS3VA kit / 1um SDS200S kit : If there is no message left, we will deliver the goods according to the travel lengths of 270mm and 370mm and 820mm.
5um SDS3-1 kit : If there is no message left, we will deliver the goods according to the travel lengths of 300mm.
1um SDS3-1 kit : If there is no message left, we will deliver the goods according to the travel lengths of 320mm.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

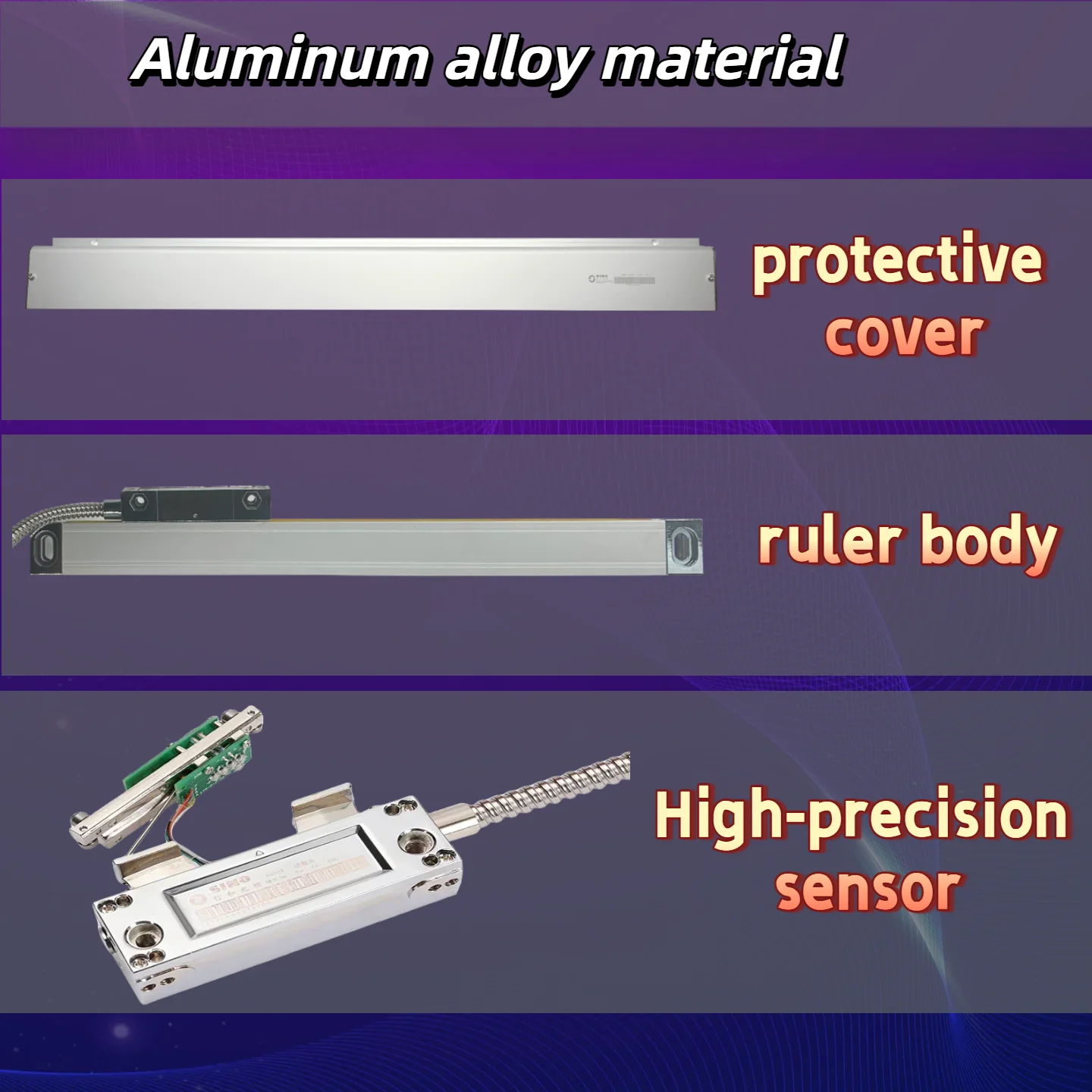

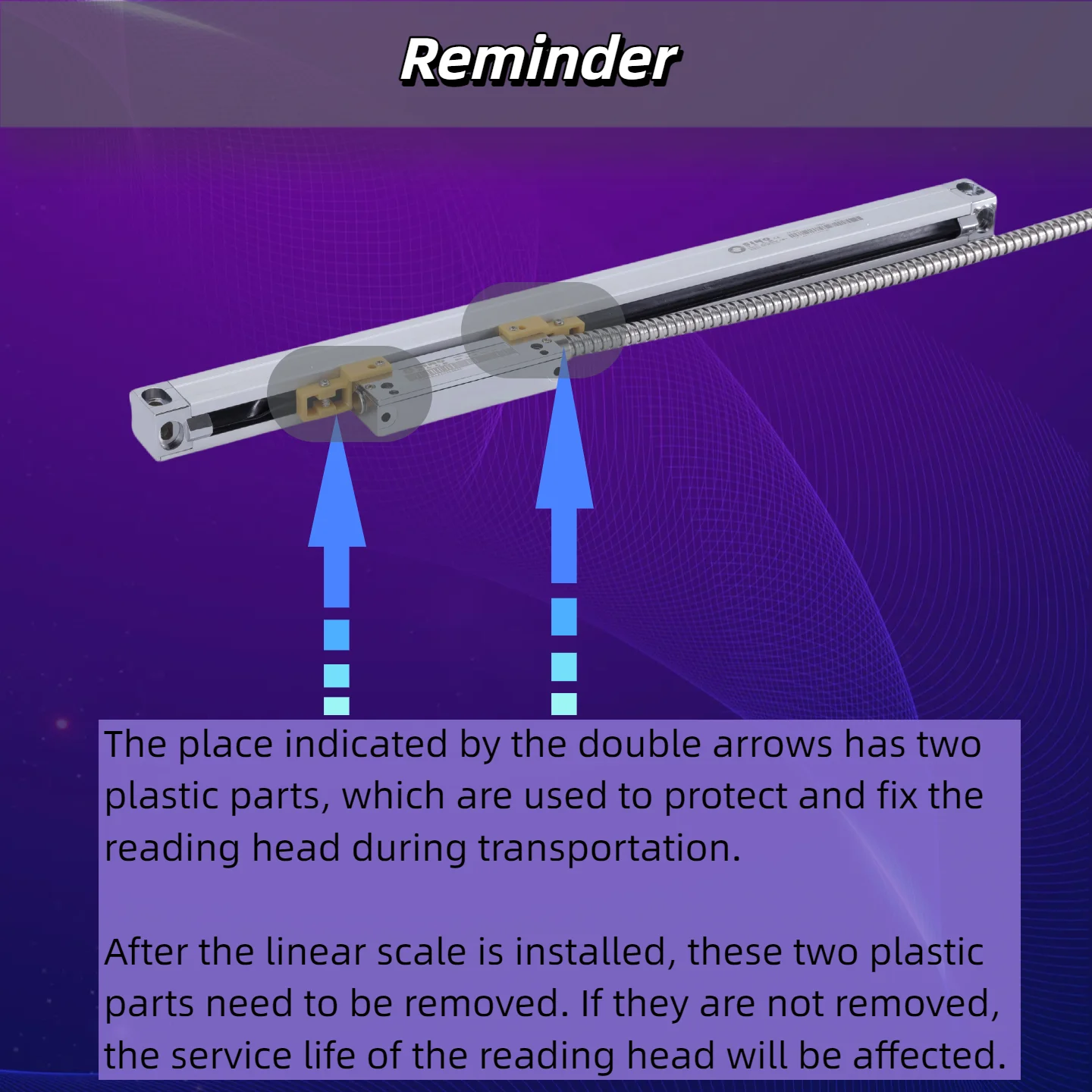

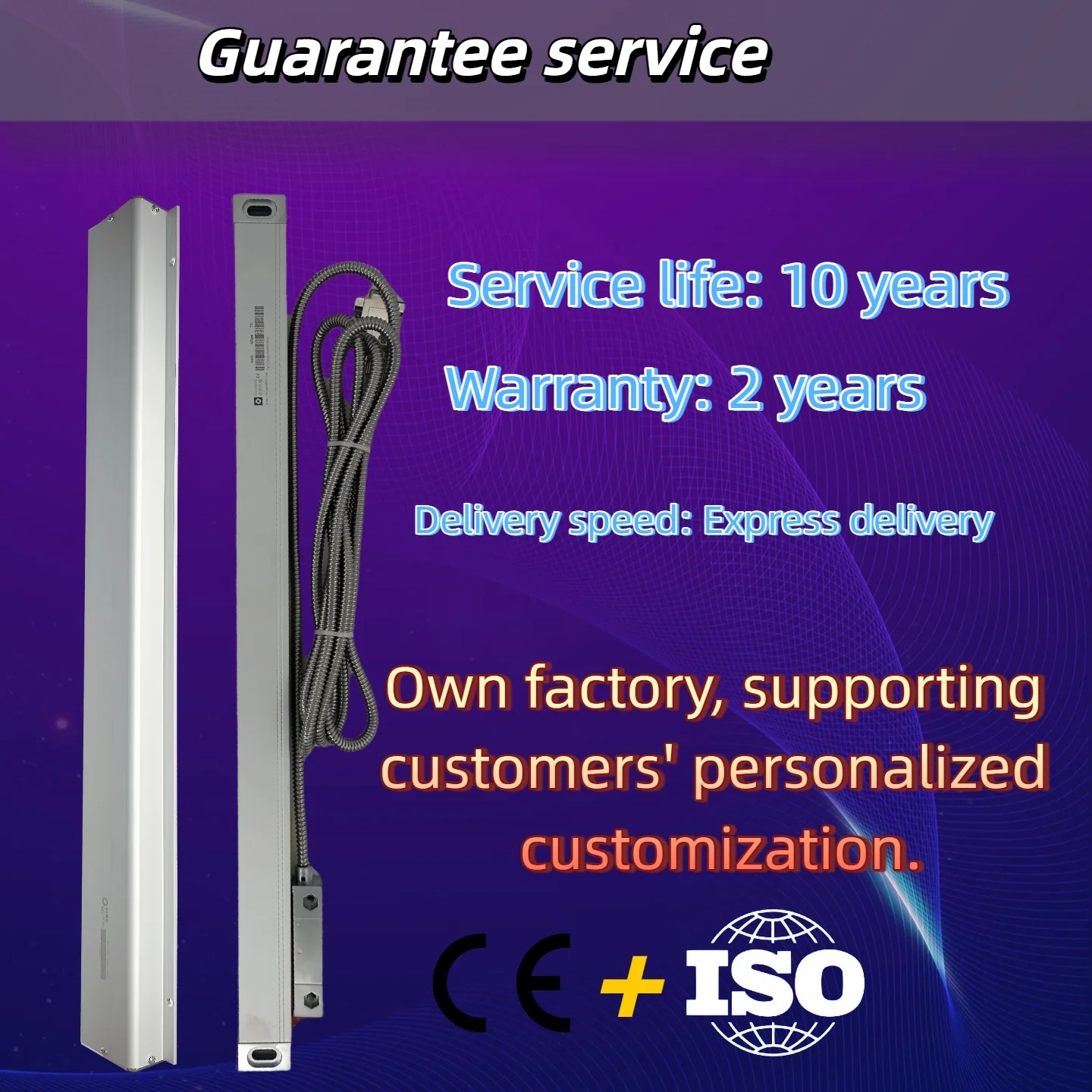

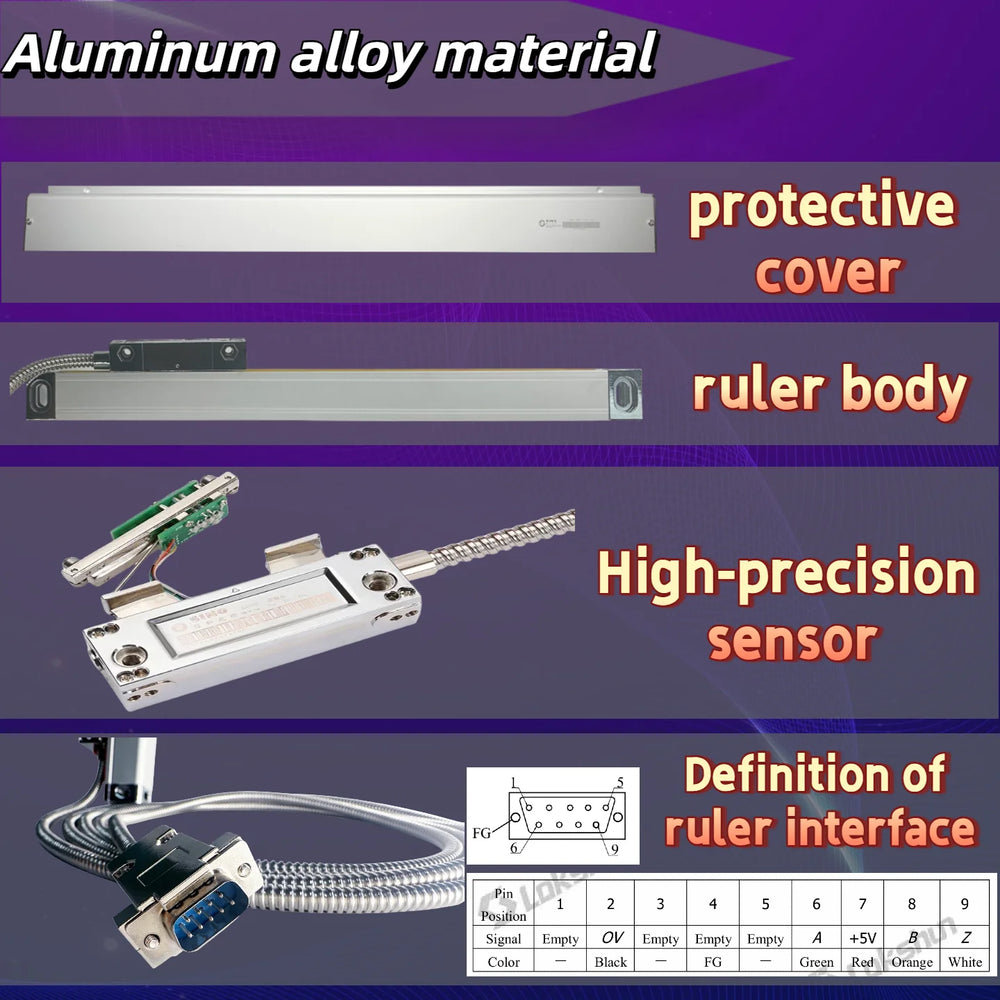

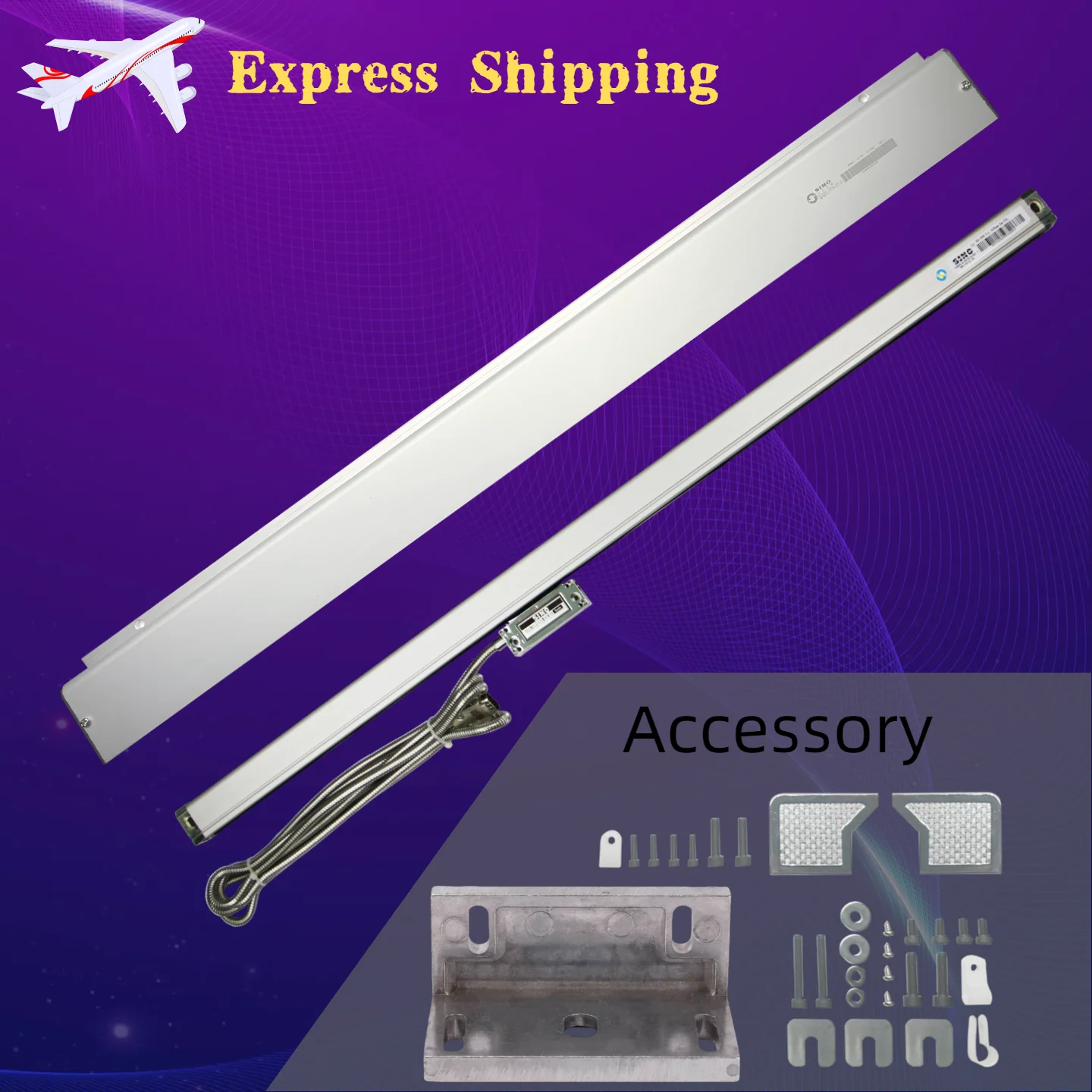

Linear scale parameter

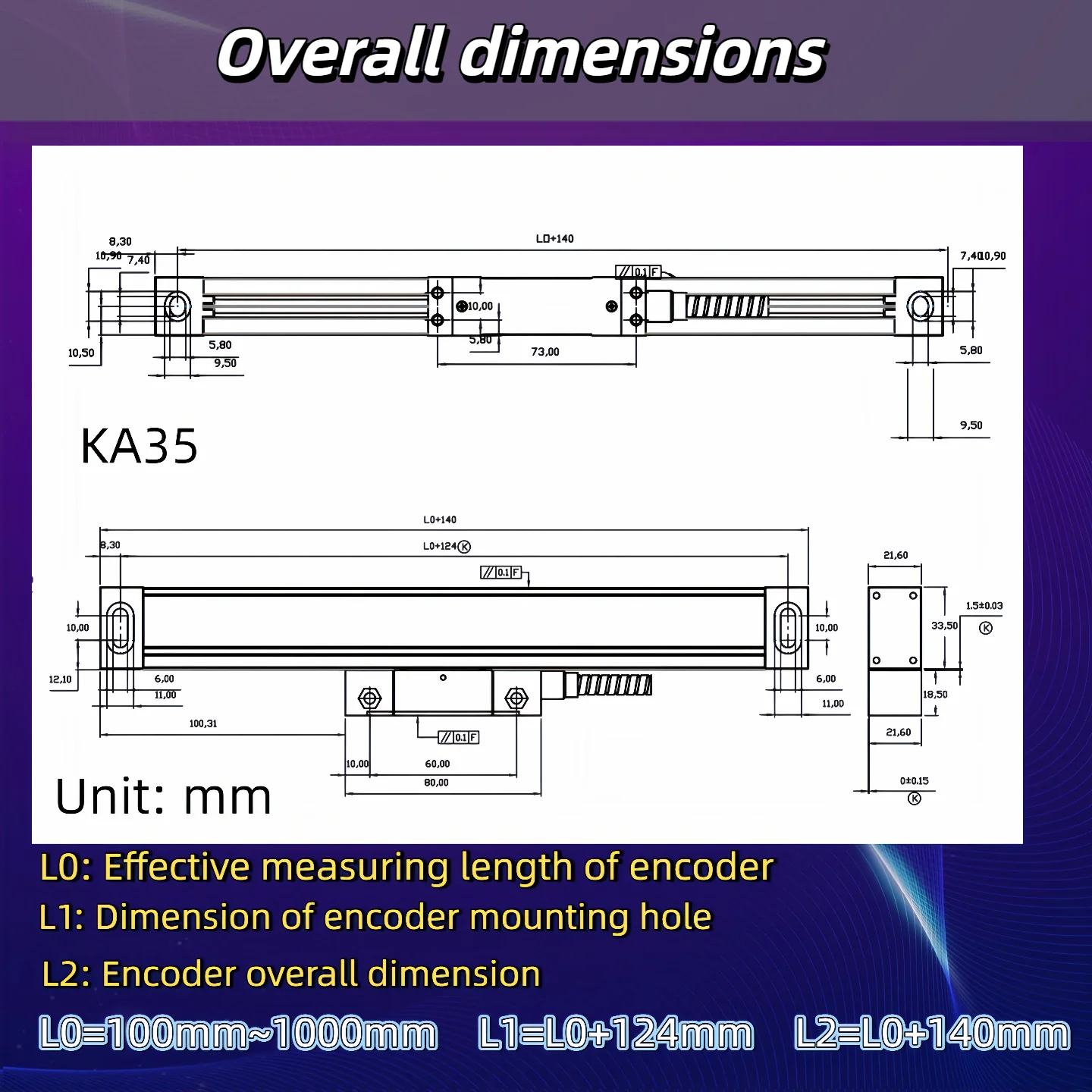

Model: KA35
Available measurement: 100mm to 1000mm
Installation holes distance:measurement +124mm
Total length: measurement +140mm
Dimensions Cross section dimensions: 21.5mmx33.5mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm
Cable length: 3 meters

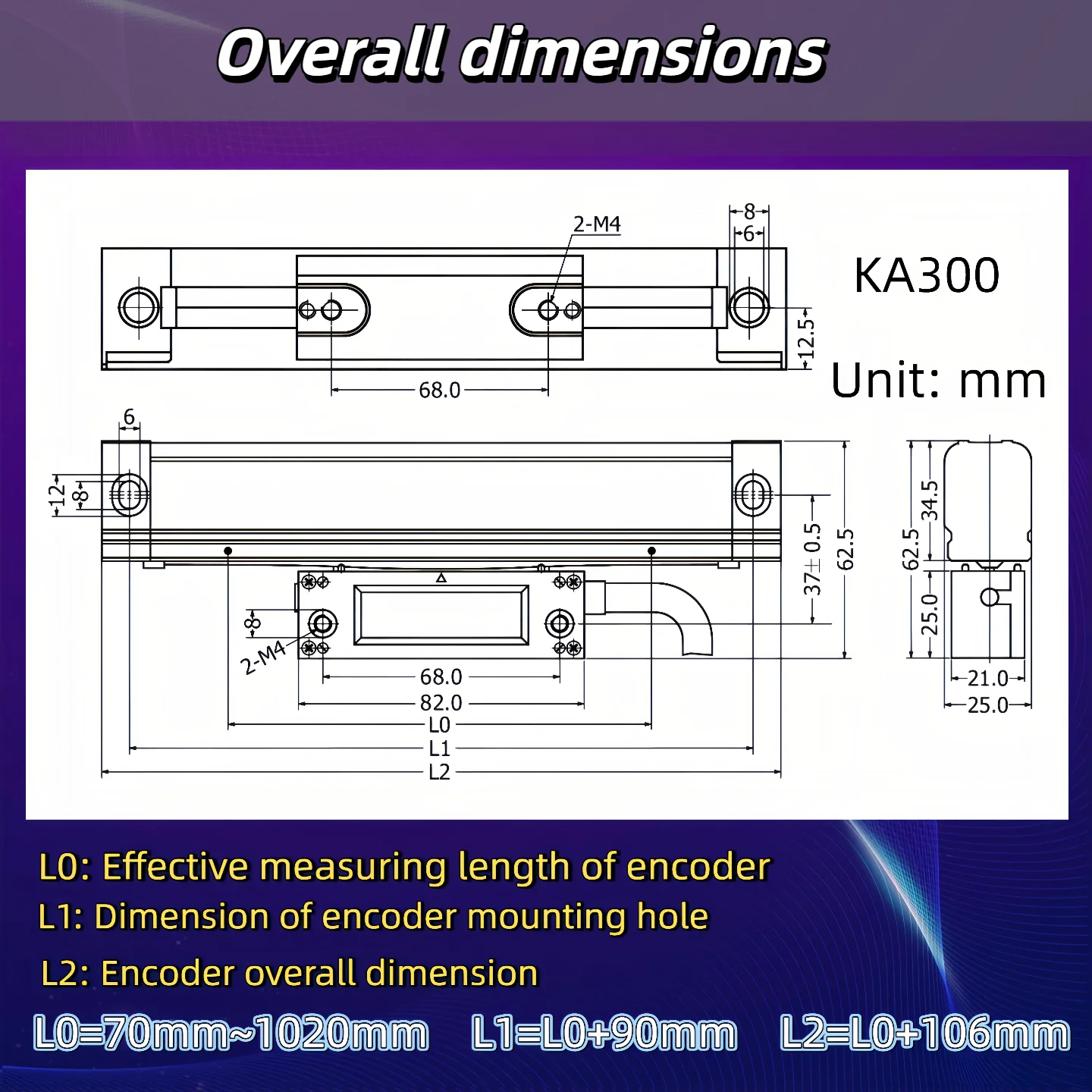

Model: KA300
Available measurement: 70mm to 1020mm
Installation holes distance:measurement +90mm
Total length: measurement +106mm
Dimensions Cross section dimensions: 25mmx34.5mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm or 1um/0.001mm
Cable length: 3 meters
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
DRO parameter
Voltage Range: AC 100V~240V/50HZ~60HZ

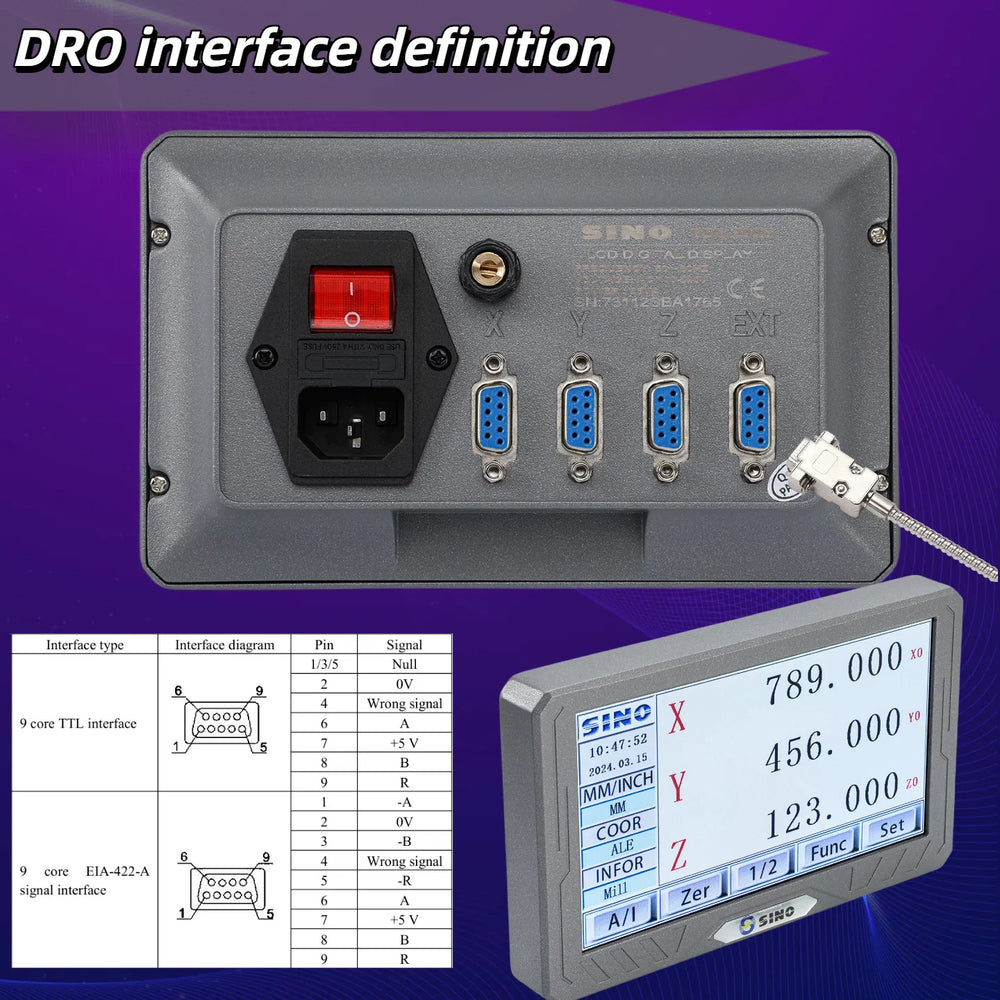

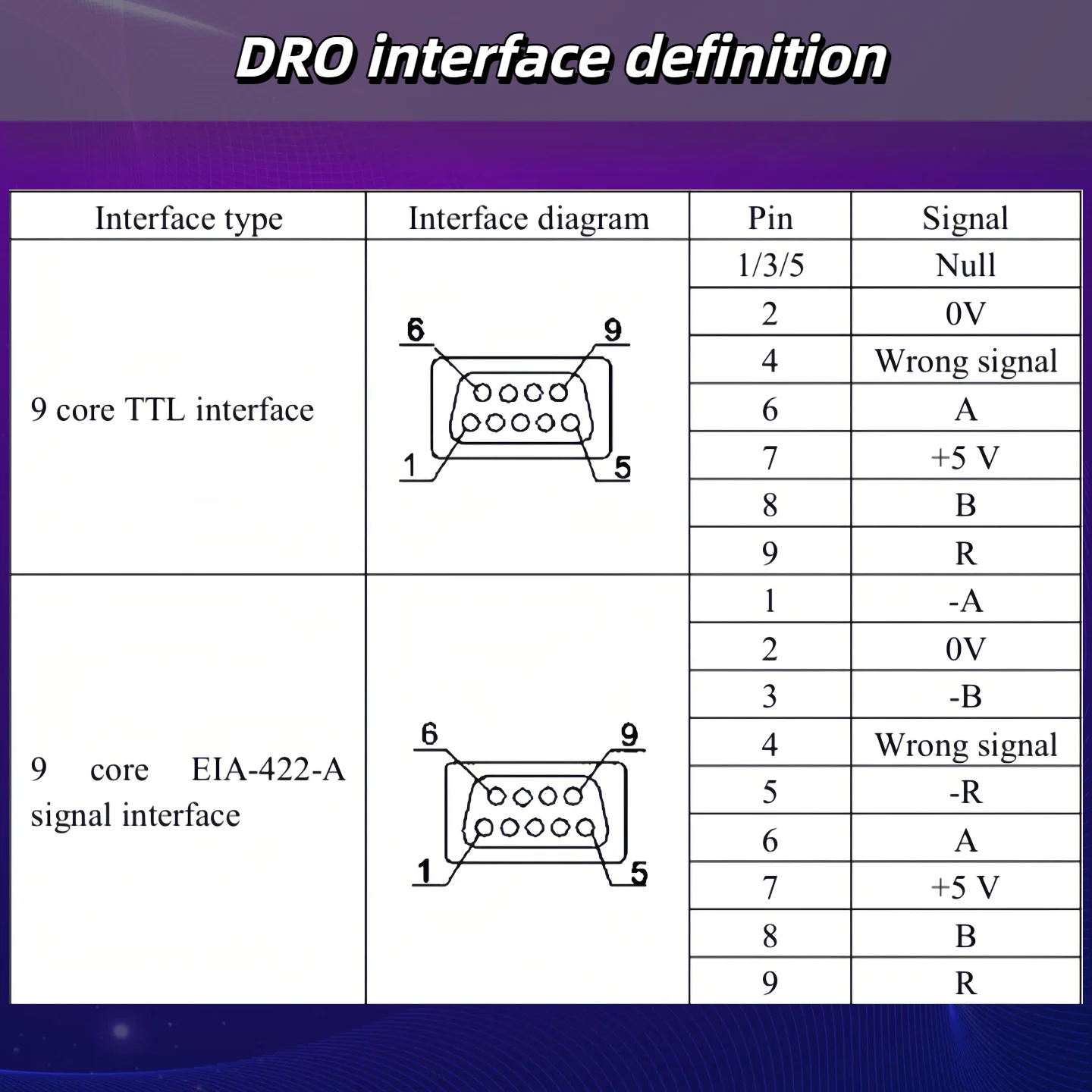

Acceptable Signal: TTL square wave/ EIA-442
Acceptable resolution: 50um ,10um ,5um ,2um ,1um , 0.5um ,0.1um
Basic Functions
"mm/inch" Conversion Display
200 Points Auxiliary Zero Position Function
Mid-split Function
Segmented Error Compensation
Linear Error Compensation
Power Interruption Memory
Sleep Switch
Mathematics calculation
Smooth R
Simple R
Hole Drilling Along An Oblique Line
The Function For 200 Point
PCD Circle Equally Dividing Holes
Angular Surface Processing
The Progressive Progressing
The Function Calculator Function
N3 Function
Advantage

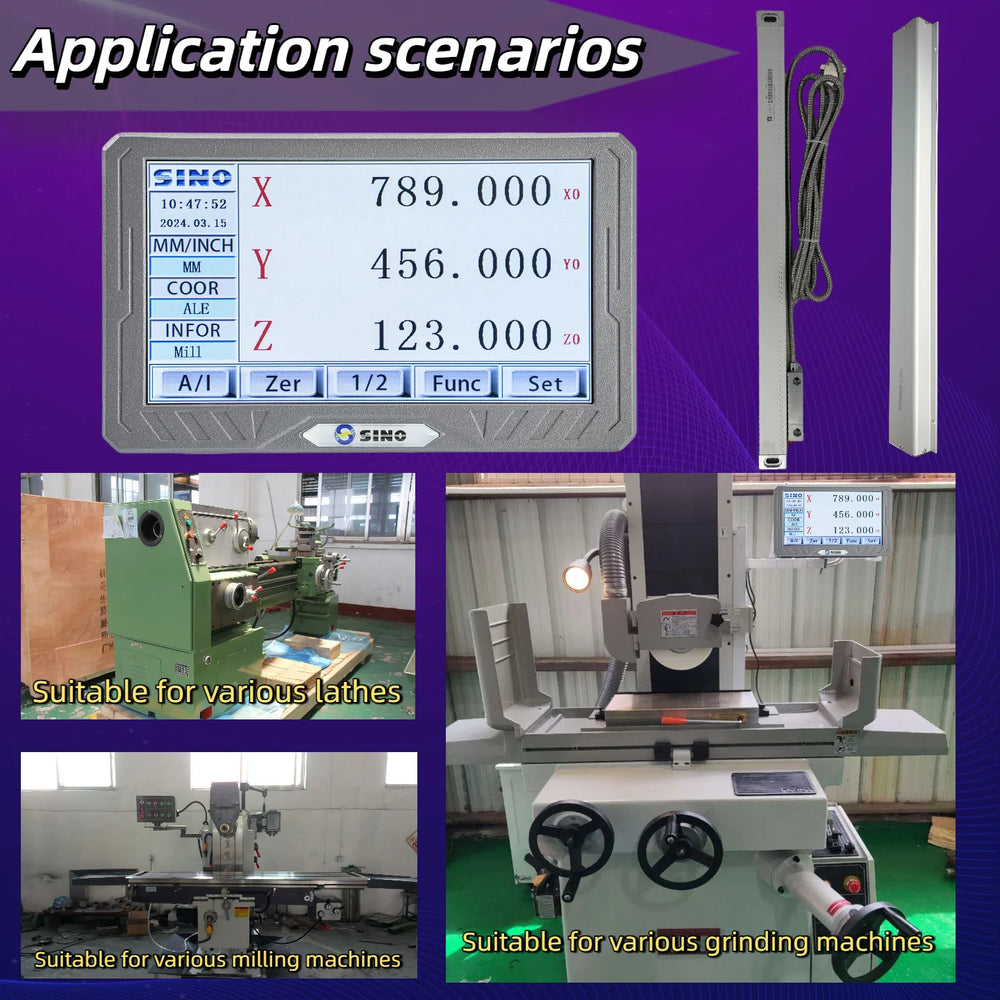

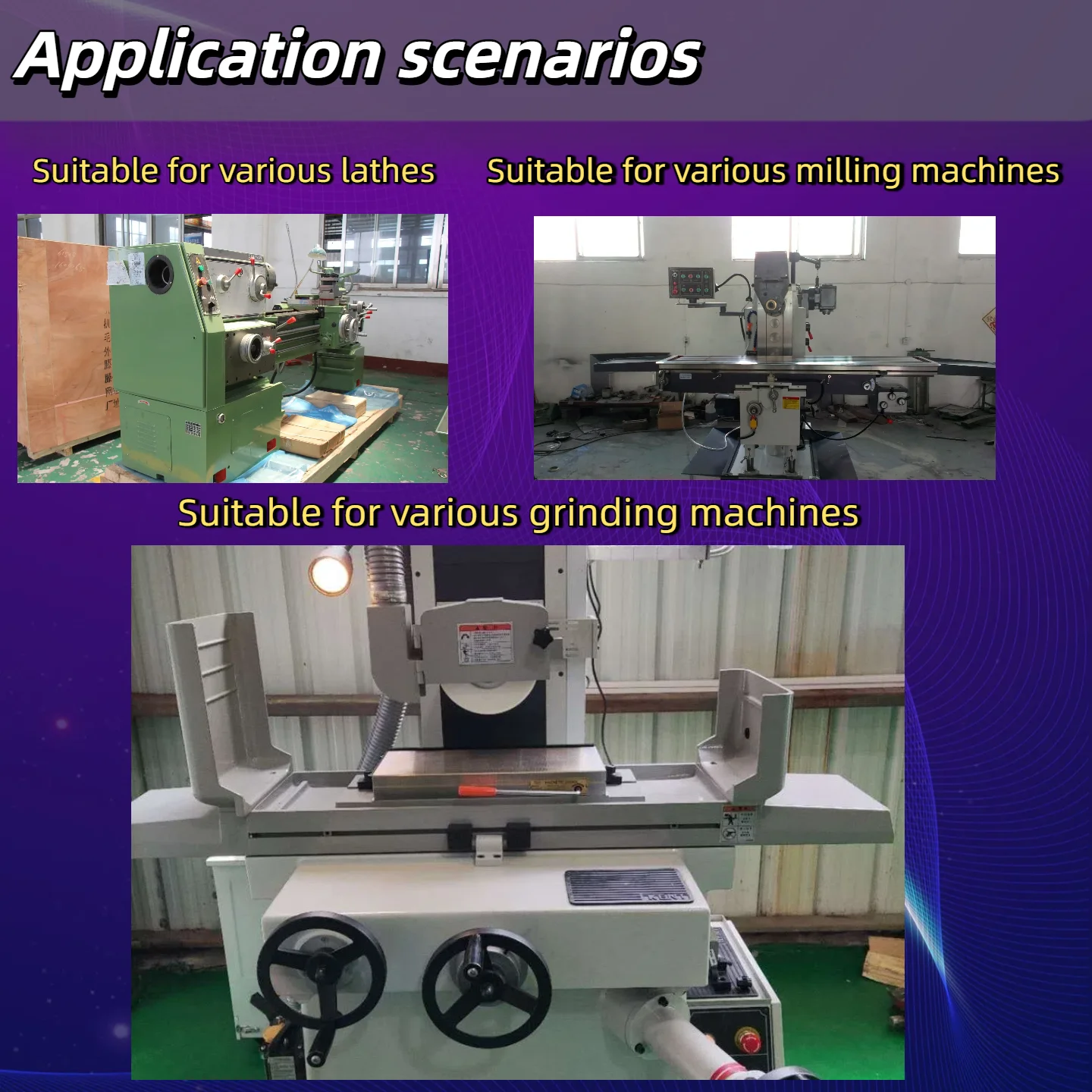

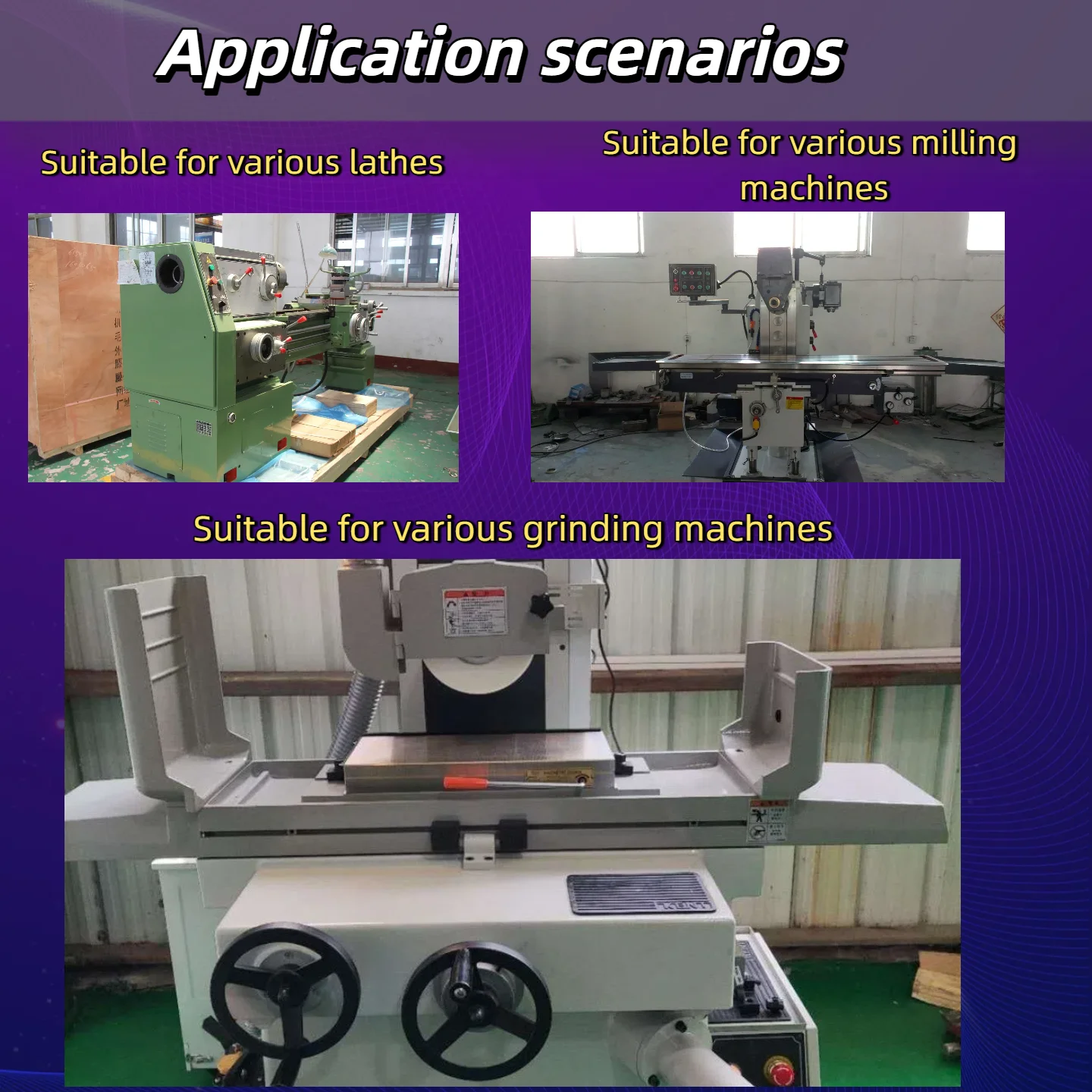

Full of feature & can widely used for mill, lathe, drilling, boring, wire cutting etc.
The wide voltage AC100-240V can be widely used in all over the world.
We offer US, AU, EU, UK different type plug suite for different countries if need.
The available input frequency of DRO is up to 5MHZ with A/B, it is also advanced in the world, and it's the first manufactory who employs 16 and 32 bits calculator in DRO system in China.
It caters to a global audience, making it an ideal choice for professionals and hobbyists alike.
The user-friendly interface ensures that users can operate the device with ease, regardless of their technical expertise.
