SPECIFICATIONS
Brand Name: NONE

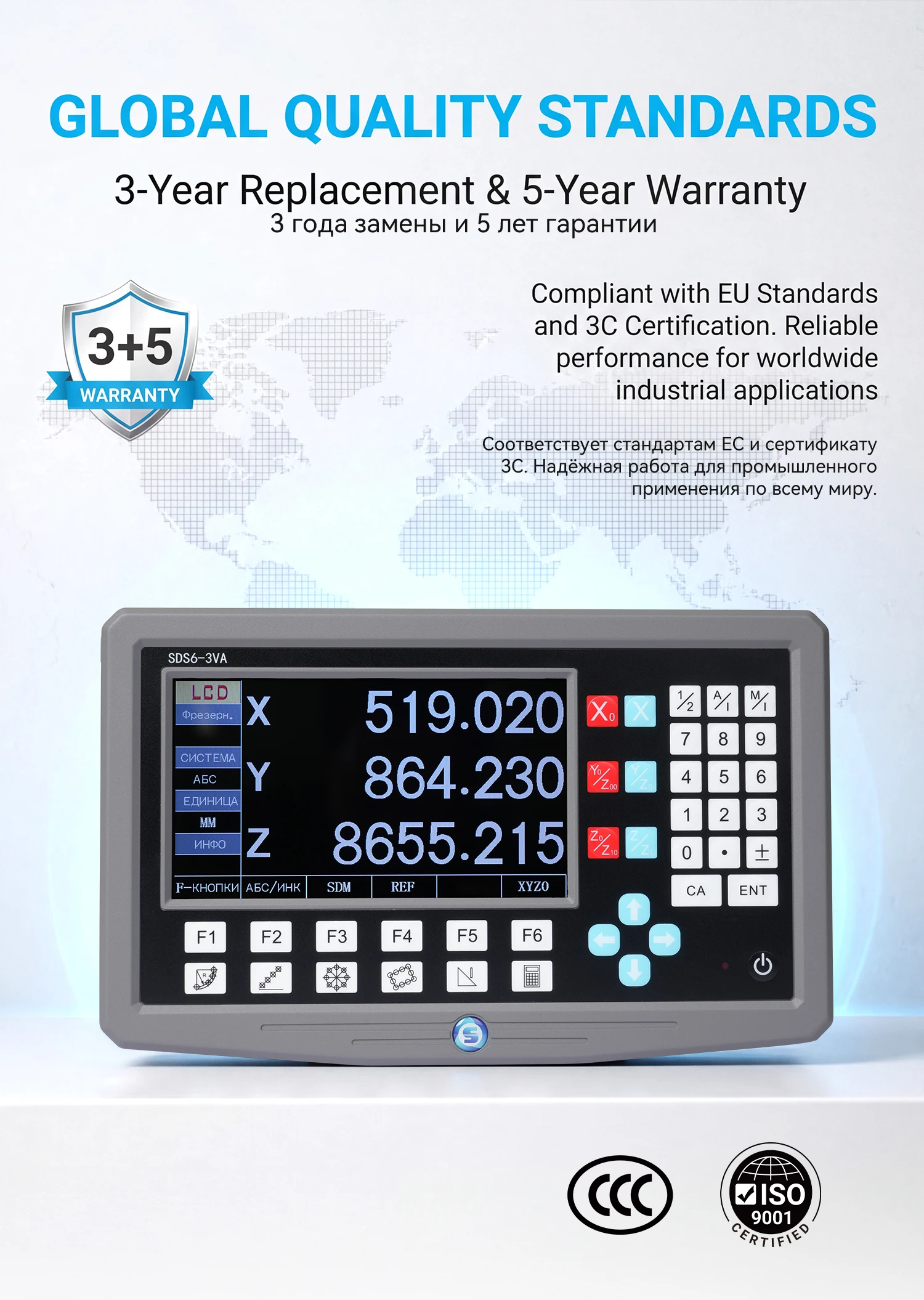

Certification: CE
Choice: yes

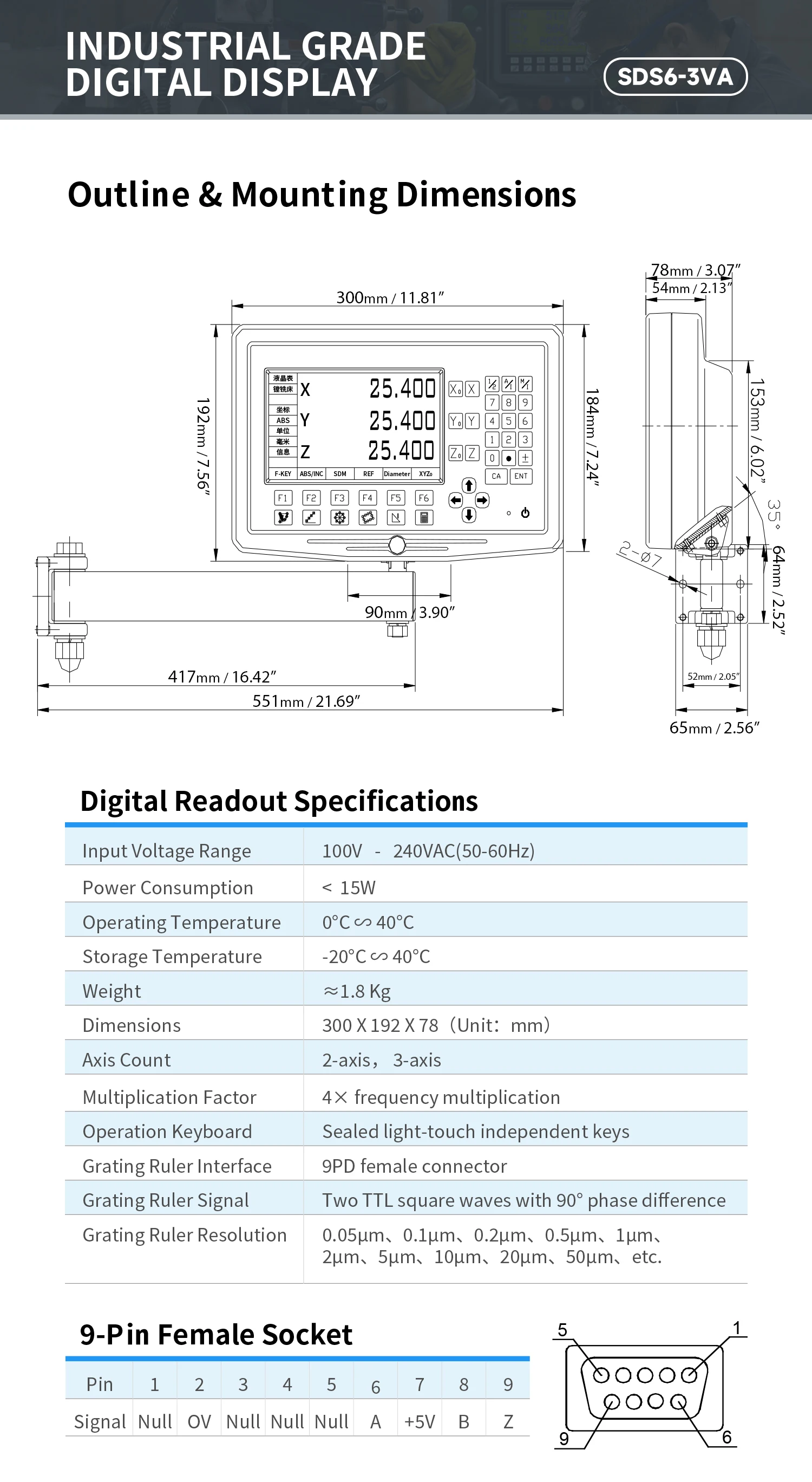

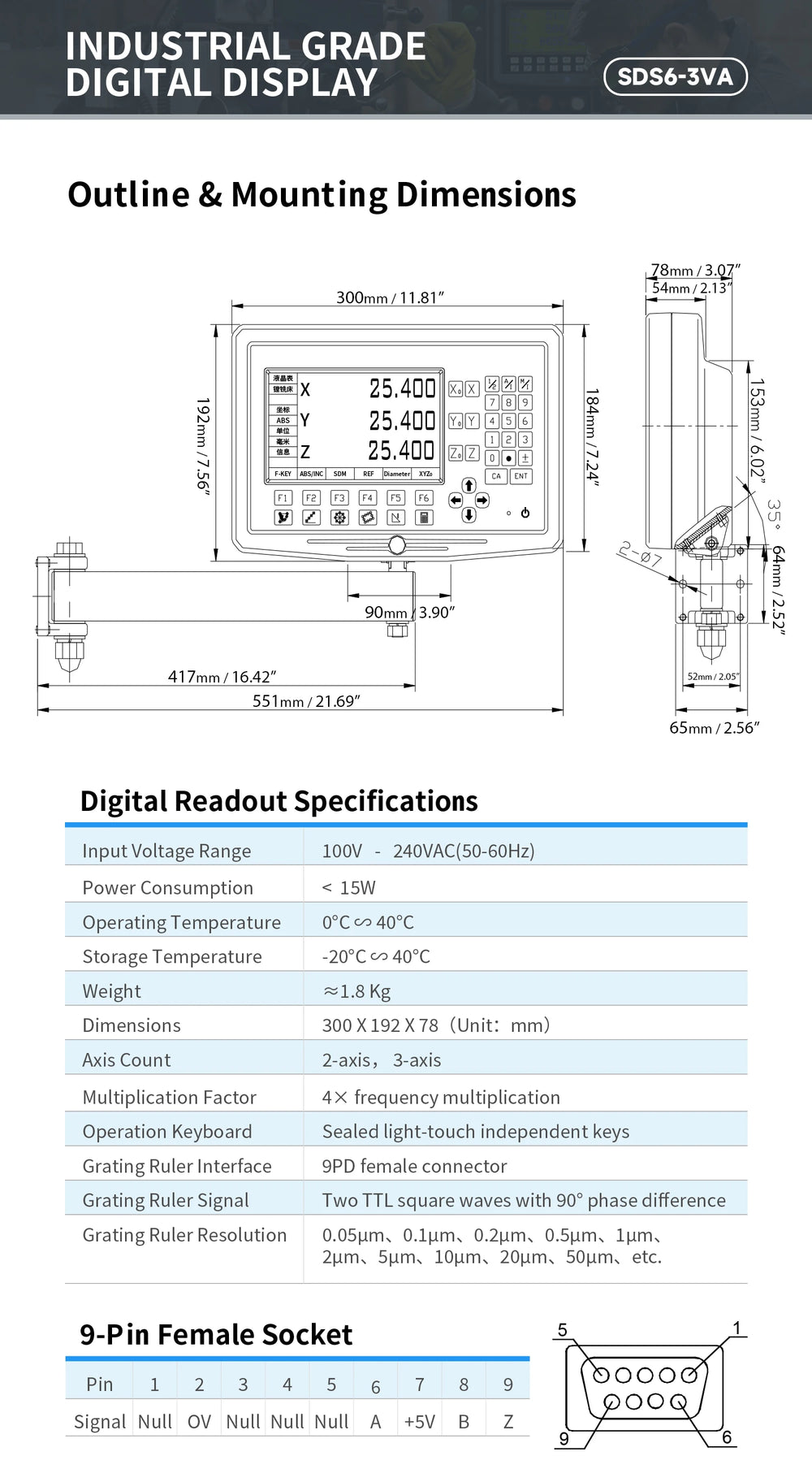

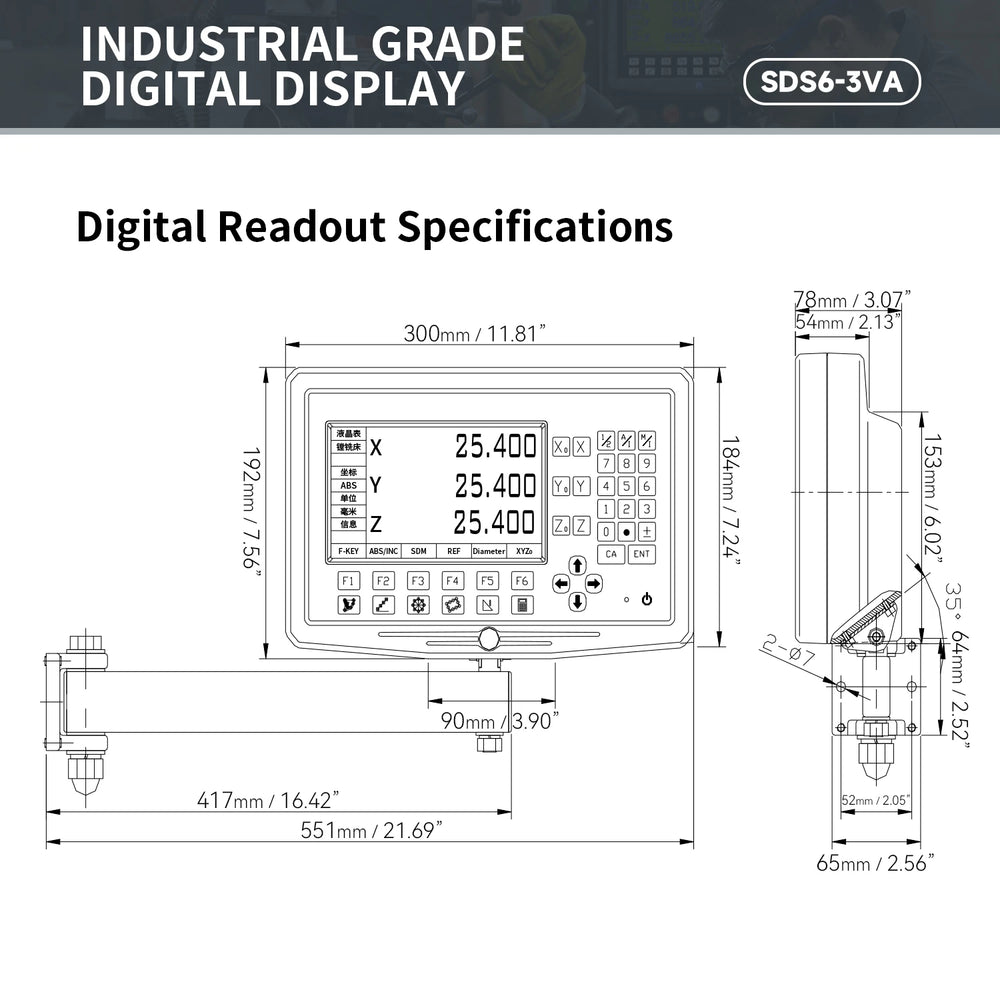

Dimensions: 300 * 192 * 78 mm

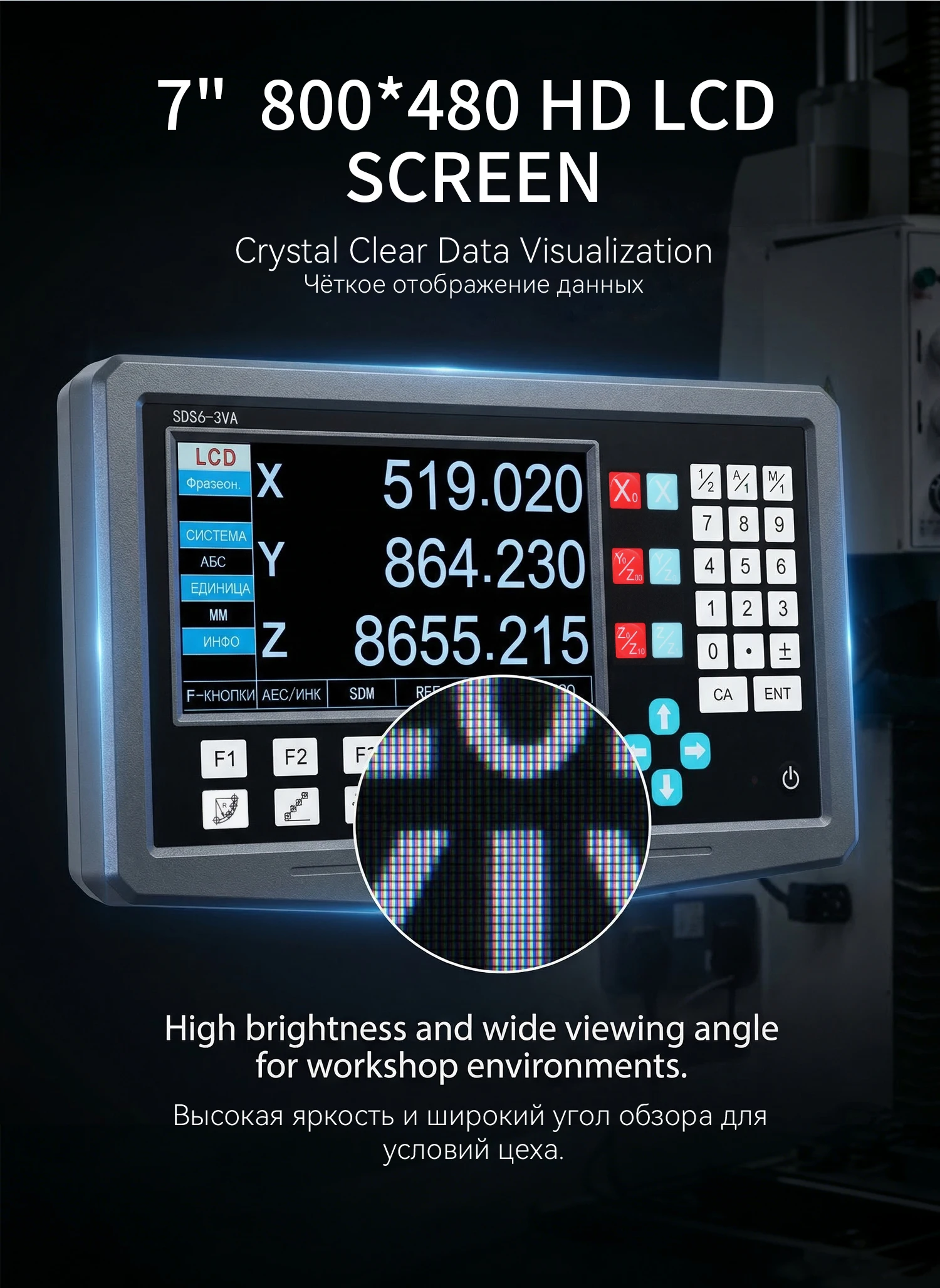

Display: 7-inch TFT True Color LCD
Display Axes: 2-axis or 3-axis
High-concerned chemical: None
Keyboard: Sealed, Tactile, Independent Keys
Model Number: sds6-3va
Origin: Mainland China
Power Consumption: < 15W
Power Supply: AC 100V-240V (50-60Hz)
Quadrature Factor: 4x
Resolution Options: 0.05μm, 0.1μm, 0.2μm, 0.5μm, 1μm, 2μm, 5μm, 10μm, 20μm, 50μm

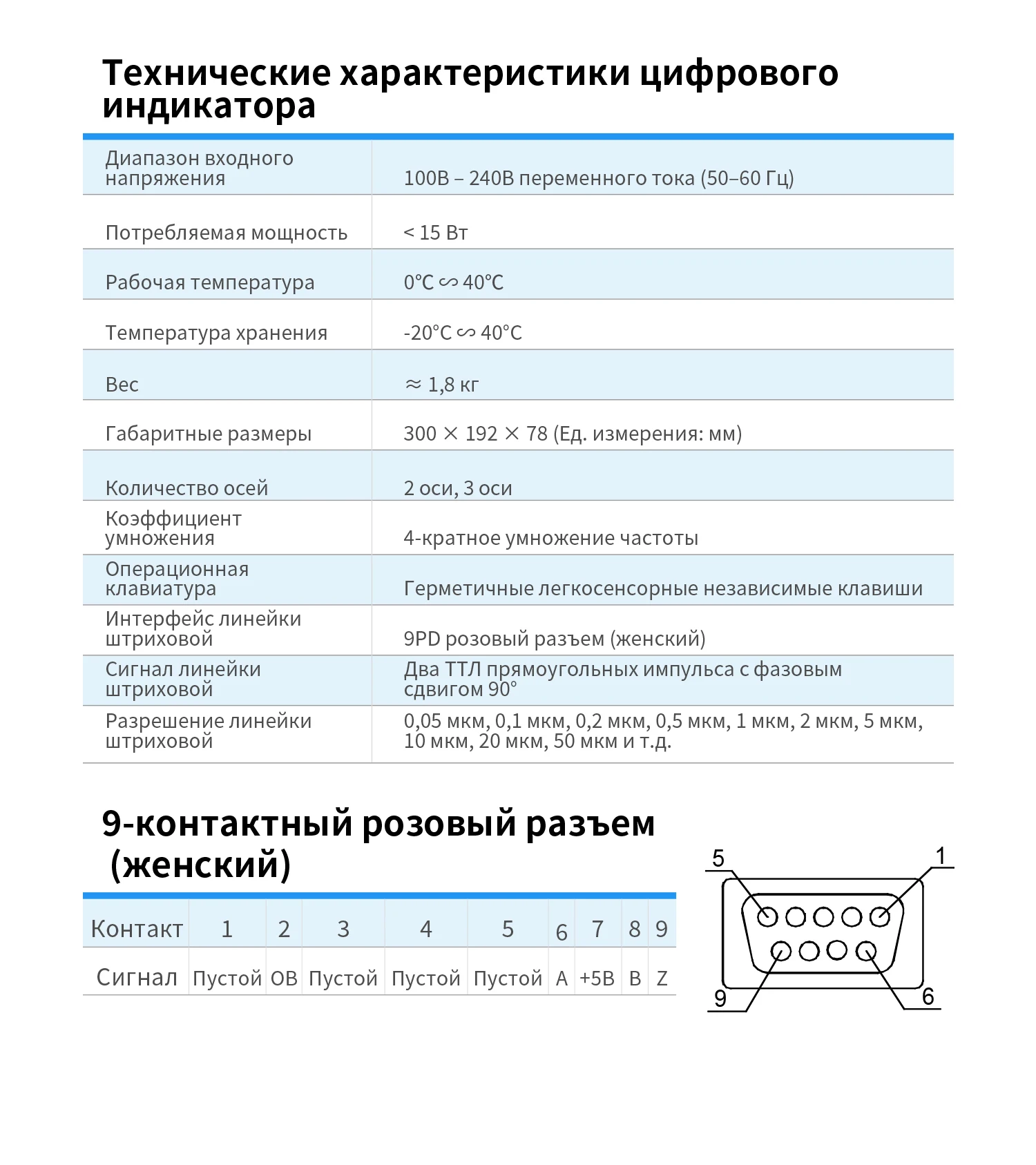

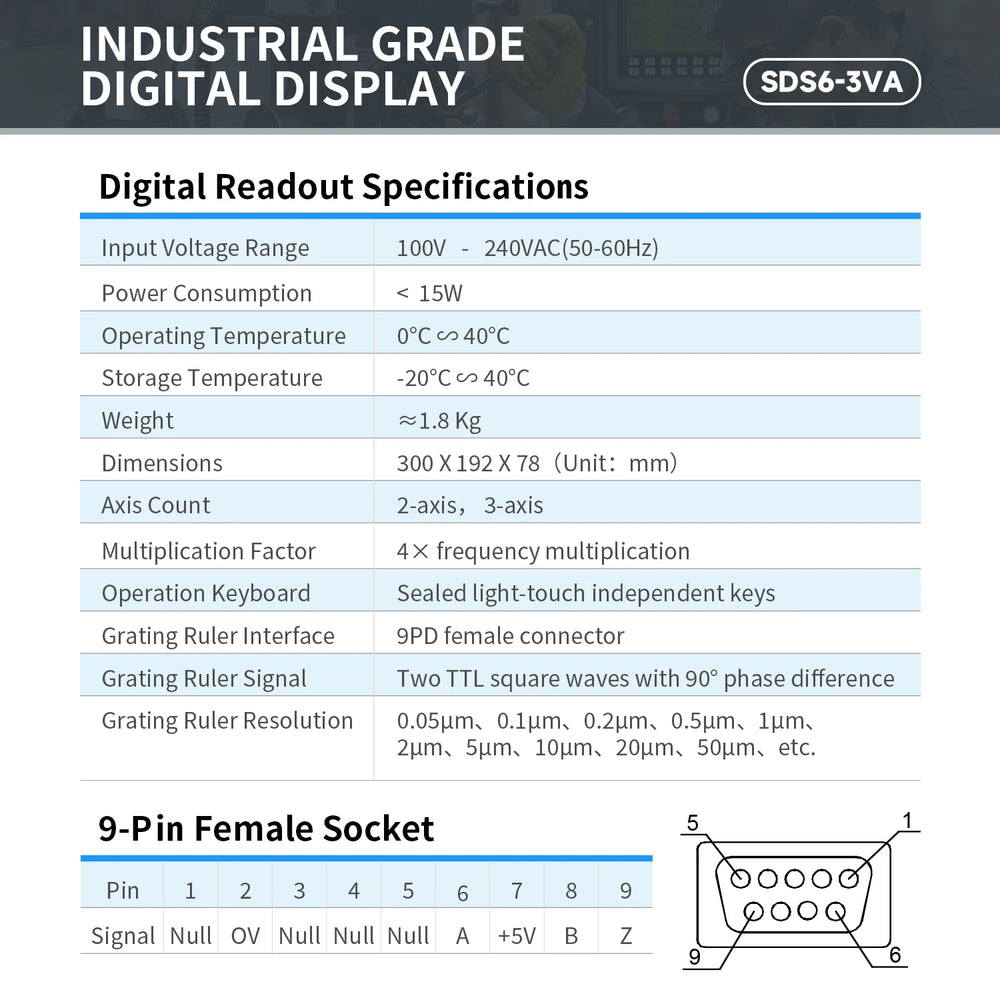

Scale Interface: 9-pin Female Socket
Scale Signal: Two TTL square waves with a 90° phase difference
semi_Choice: yes

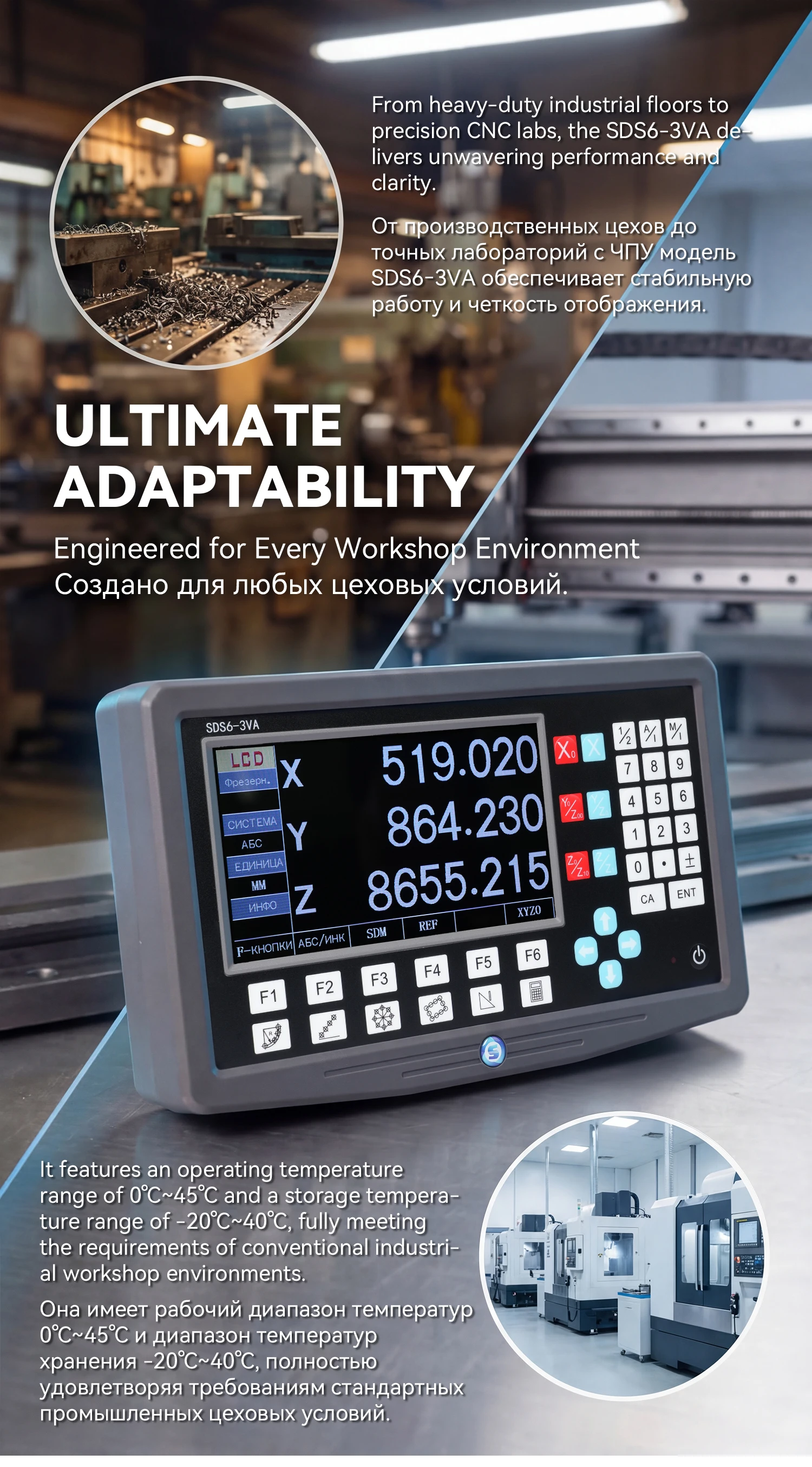

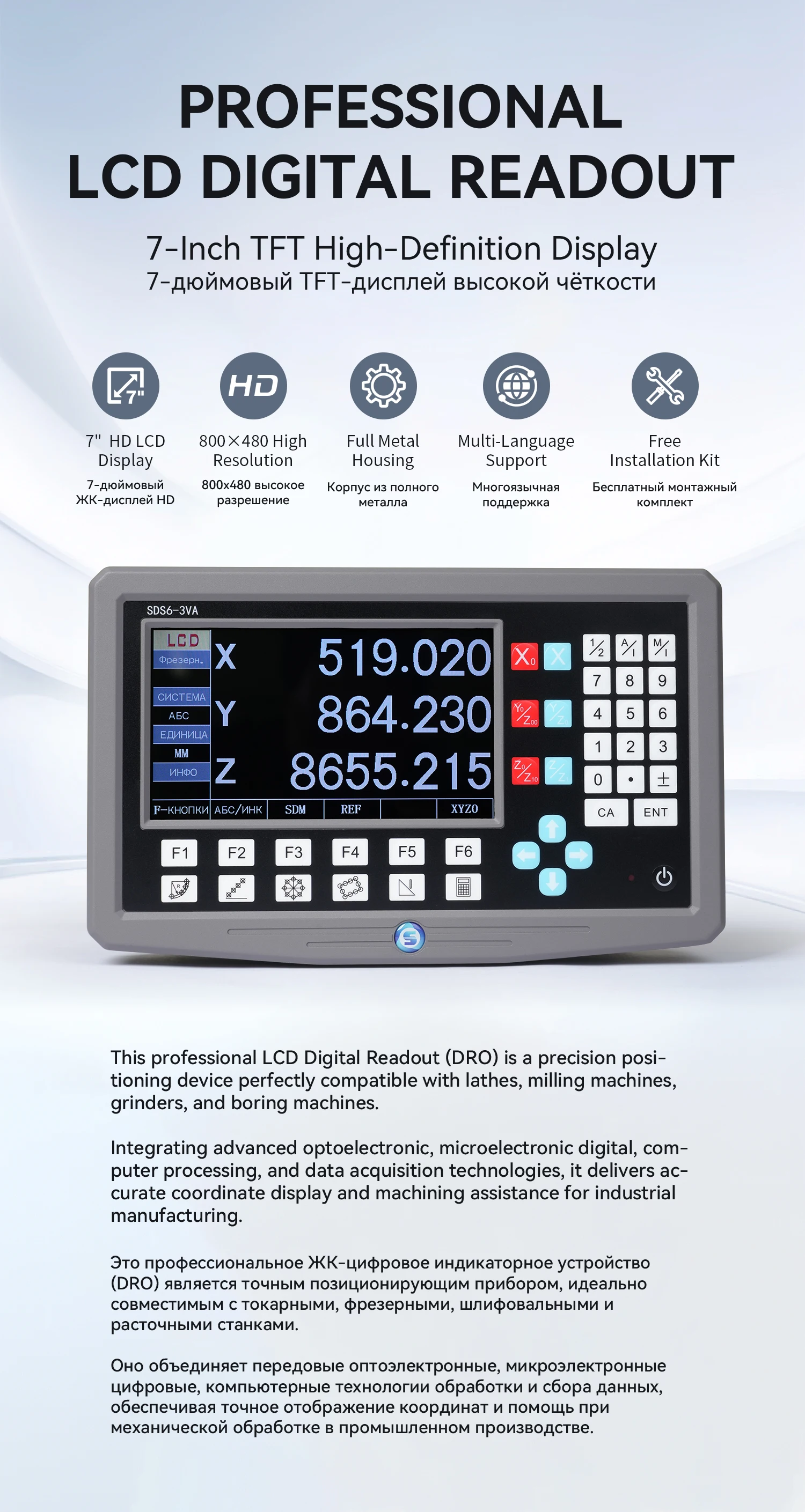

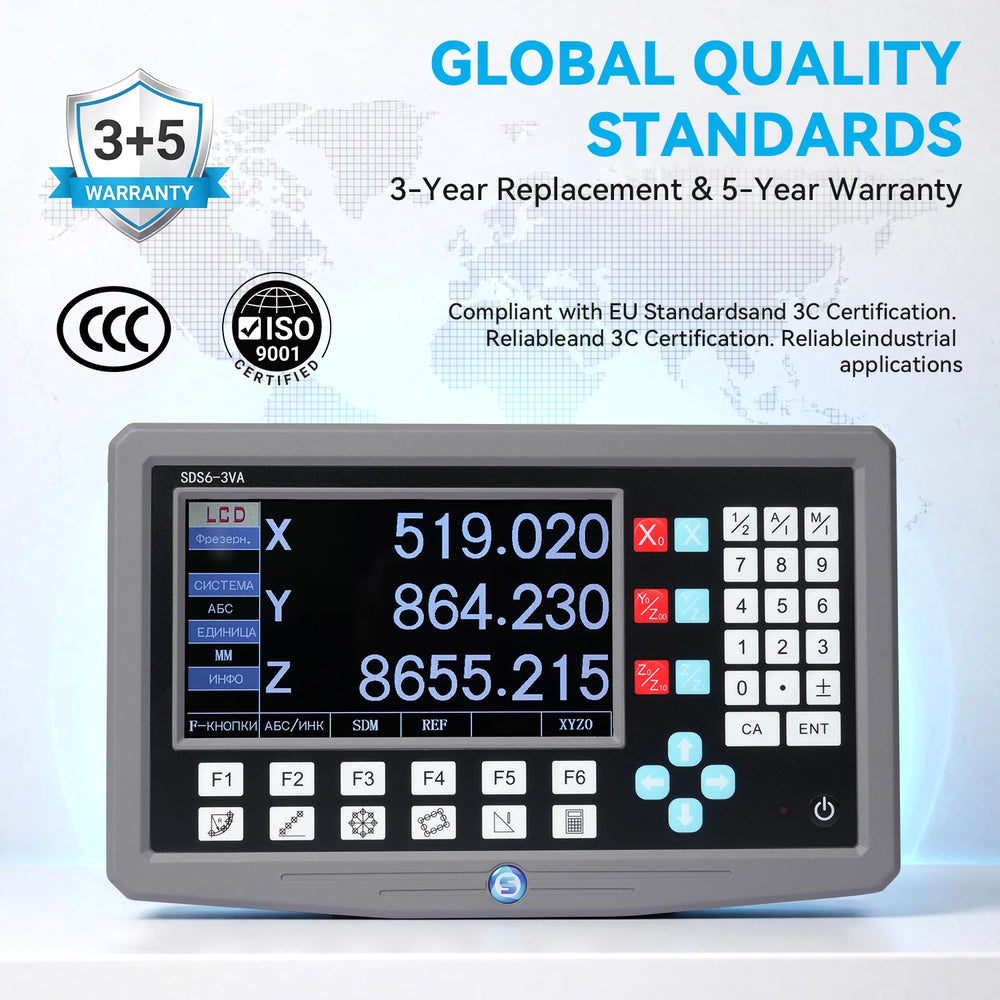

7-inch True Color LCD & Intuitive Operation: Features a large, high-resolution 7-inch TFT color display for clear, intuitive reading of coordinates and easy navigation through its sealed tactile keypad.

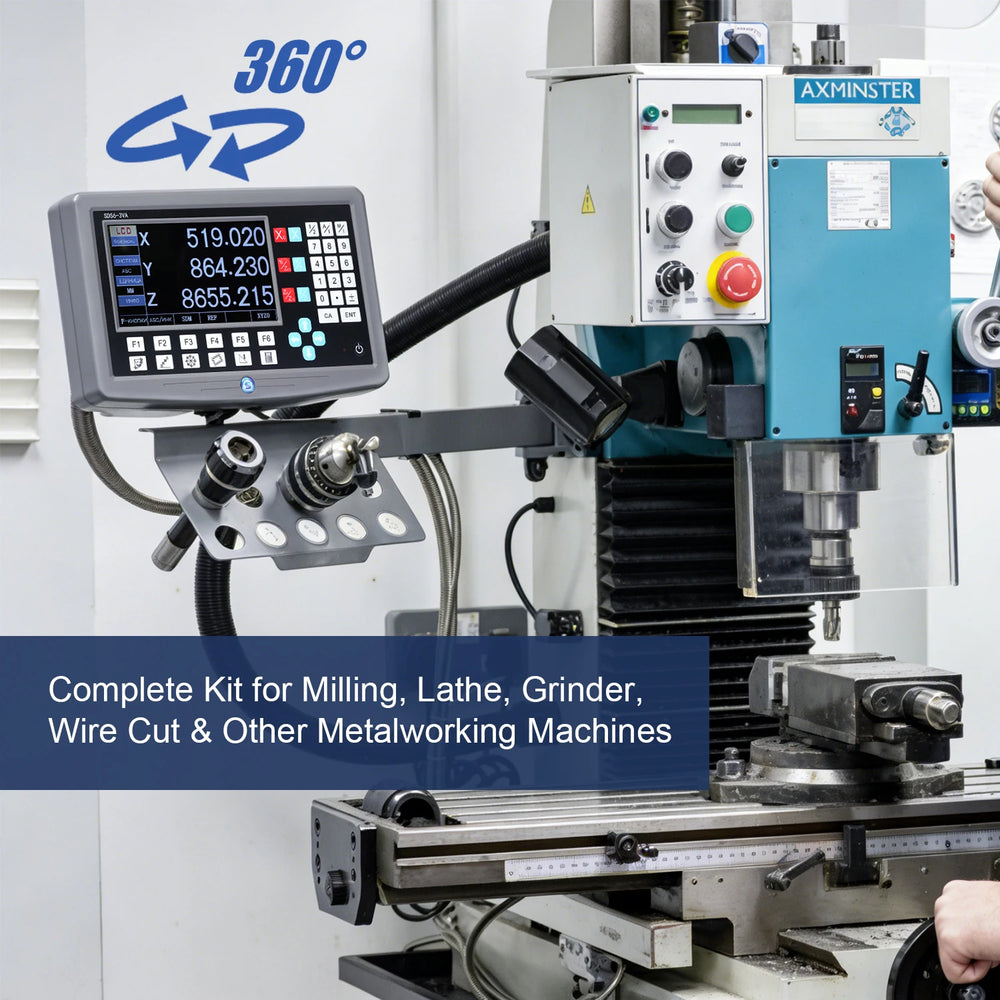

Advanced Machining Functions: Offers specialized functions including diagonal hole dividing, circular hole dividing (PCD), slope machining, arc machining (with smoothness control via MAX CUT), and grid drilling to enhance productivity on milling, lathe, and grinding machines.

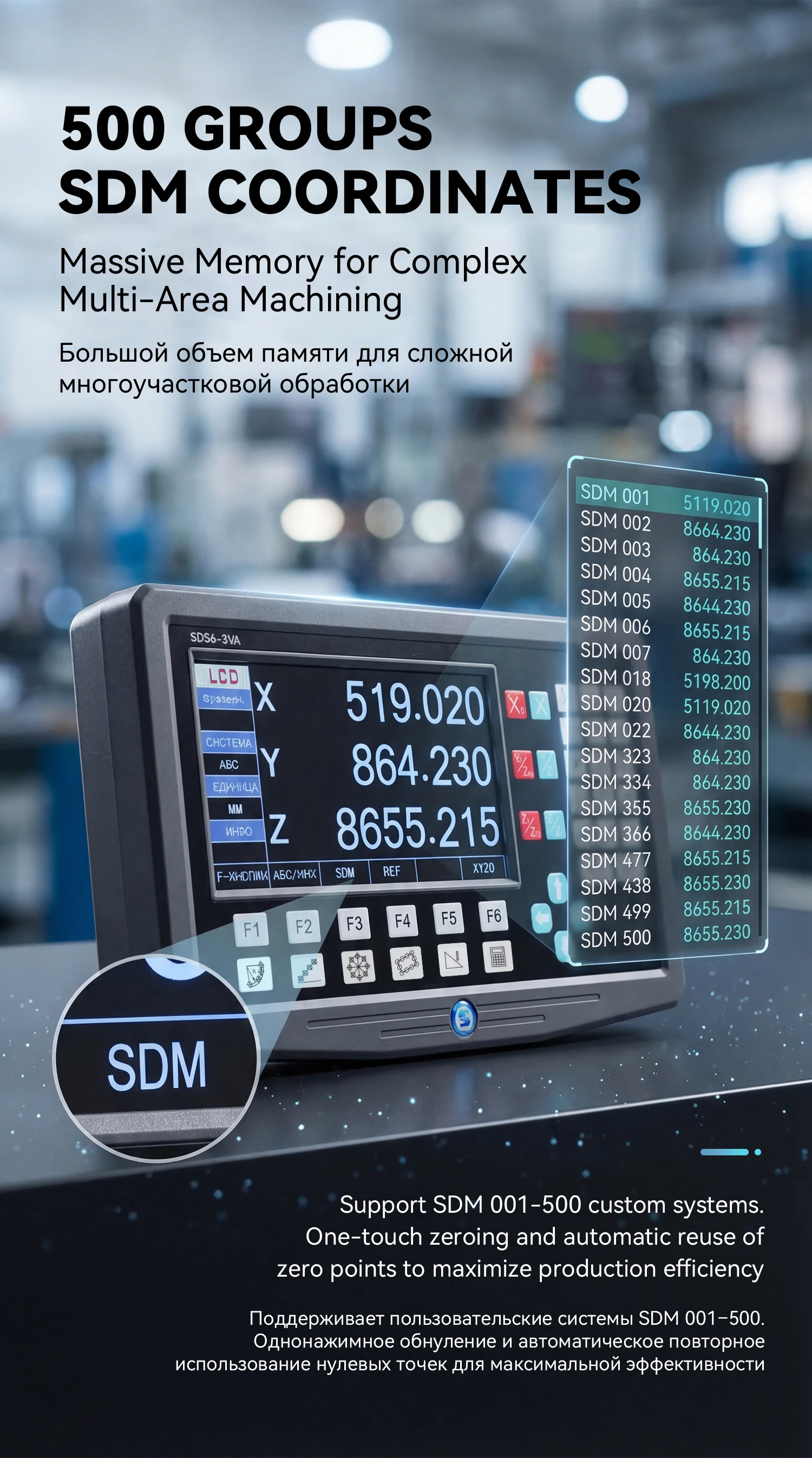

500 User Coordinate Systems (SDM): Provides up to 500 auxiliary zero points (SDM) for complex setups and batch processing, allowing quick switching between different workpiece origins without re-calibration.
Comprehensive Compensation & Settings: Supports both linear and non-linear (sectional) error compensation for high accuracy. Includes extensive internal settings for resolution, counting direction, interface type (scale/encoder), and machine type (milling, grinding, lathe).
Robust Data Security & Convenience: Equipped with power-off memory to retain position and settings, a REF function to find the mechanical origin, sleep mode for energy saving, and a built-in calculator with result transfer capability.
