SPECIFICATIONS
Brand Name: TOPDON
Certification: CE
Display: LCD 10.1 Inch 1280 x 800 dpi
Display Resolution: 1280*800
Display Size: 10.1 inches
Electronic: Yes
External Testing Certification: ce
Function 1: Full OBD 2 function
Function 2: 1 year software free update
Function 3: All system diagnostic
Function 4: CAN-FD/DOIP
Function 5: Unlock Renault/FCA/VW/Nissan Infiniti Access
Function 6: Bluetooth Wireless Diagnostics With J2534 VCI
Hardware Version: OBD2 Diagnostic Tool
High-concerned chemical: None
Is Batteries Included: Yes
Item Height: 4
Item Length: 31
Item Type: Multimeters & Analyzers
Item Weight: 1.6
Item Width: 20.7
Material: ABS
Model Name: TOPDON ONE LITE
Origin: Mainland China
Software Update: Yes
Software Version: Android 12.0
Special Features: Wifi
Use: Not Telecommunication
Wireless Support: Bluetooth
👍Description
It is a highly cost-effective, comprehensive system diagnostic tool. Featuring a 10-inch large screen with 1280*800 resolution, it offers 50+ hot functions capable of performing deeper and more advanced maintenance. Equipped with the standard J2534 protocol, it enables low-cost, OEM-level repairs. The tool supports ECU coding for BMW, Benz, VW, and is compatible with a wider range of gateway protocols, significantly expanding vehicle coverage to over 120+ models.
Additionally, it includes an AI diagnostic assistant and a repair database, which help eliminate misjudgments and trial-and-error troubleshooting, thereby improving repair efficiency. The dual Wi-Fi wireless connection module ensures more stable connectivity, faster data transmission, and reduced operational failure rates.
👍Features：
Full System Diagnostics For 120+ Brands:With the One Lite scanner, users can conduct a thorough scan across all vehicle systems, encompassing the engine, transmission, airbag, ABS, ESP, TPMS, immobilizer, gateway, steering, radio, and air conditioning for over 120 different brands.
✅50+ Special Reset Service Functions:
1.Oil Reset Service
2.Throttle Body Adaptation
3.Brake Pad Replacement
4.ABS Bleeding
5.SAS Reset
6.Diesel Particulate Filter (DPF) Regeneration
7.Fuel Injector Coding
8.Battery Adaptation
9.Tire Pressure Monitoring System (TPMS) Reset
10.Airbag System Reset
11.Sunroof Initialization
12. Seat Calibration
13. Door/Window Calibration
14.Suspension System Adaptation
15.AdBlue / DEF System Reset (Urea System Reset)
16.Air-Fuel Ratio (A/F) Adjustment / Adaptation
17.NOx Sensor Reset / Nitrogen Oxide Sensor Reset
18. Start-Stop System Settings
19.Headlight Adaptation
20.Transmission Adaptive Value Learning (Gear Learning)
21.Language Setting
22.Transport Mode Deactivation
23. Gasoline Particulate Filter (GPF) Service
24.Transmission Adaptation
25. Exhaust Gas Recirculation (EGR) Self-Learning
26. Electric Coolant Pump Activation
27.Tire modification
28.Cylinder Balance Test
29. Turbocharger Adaptation
30. Odometer (ODO) Reading
31. EEPROM Adapter
32.Clutch Adaptation
33.Speed & Power Service
34. Footwell Module (FRM) Reset
35.High Voltage Battery Service
36. Cruise Control System Calibration
37.Air Conditioning System Relearning
38. Rain/Light Sensor Calibration
39. Control Unit Reset
40.Relative Compression Service
41.High Voltage System Deactivation / Activation
42. Coolant / Refrigerant Replacement
43.Resolver Sensor Calibration
44. Camshaft Learning
45.Vehicle Identification Number (VIN) Service
46.Personalization Settings
47.Motor Position Sensor Calibration
48.A/C Compressor Test
49.On-Board Charger (OBC)
50.DC-DC Converter Reset
51.48V Mild-Hybrid System Component Service
52.Dynamic ADAS Calibration
✅AutoVIN & AutoScan + All Available System Access :
This powerful, all-in-one diagnostic scan tool reads and erases codes, views live data, retrieves ECU version info, and performs active tests and service functions across every system—ECM, TCM, ABS, SRS, BCM, BMS, TPMS, SAS, Fuel System, Light System and A/C system and more. The AutoVIN & AutoScan features allow the TOPDON ONE LITE scan tool to automatically connect with all available ECU modules across onboard systems, performing a full scan to pinpoint faults and getting instant identification and diagnostics.
✅Professional-Grade OBD2 Code Reader:
Discover the power of TOPDON’s One Lite, the ultimate OBD2 code reader that elevates your diagnostic capabilities to a professional level. With a lifetime of access to all 10 modes of OBD2 testing, it provides comprehensive information on a wide range of vehicles. Unlock a world of possibilities with features like reading DTCs, clearing DTCs, Live Data analysis, I/M Readiness Monitor Status, Freeze Frame Data viewing, O2 Sensor Testing, On-board Monitor Testing, Evap Testing, Vehicle Information retrieval, and DTC Look Up functionality.
✅OE Level Topology Map:
Displays the real vehicle bus topology, allowing users to intuitively grasp the interconnection between all ECUs.
✅Live Data Display:
Multi-Parameter Viewing View up to 12 live parameters simultaneously for easier comparison. Sorting and grouping options allow technicians to analyze sensor behavior and system performance with clarity during diagnostic work.
✅Custom Solutions with ECU Coding:
which is compatible with Benz, BMW, VW，Take advantage of offline code to achieve personalization of vehicle functions, enable/disable features, or match new accessories by modifying configuration parameters in the ECU via diagnostic equipment. Transform your shop’s capabilities and boost efficiency.
✅Active Test & Bi-directional control:
one lite supports over bi-directional control functions, Send precise commands to multiple systems and components to check their working status. Achieve fast, accurate diagnostics and take control like never before.
✅Dual-Band Wi-Fi Module :
to maintain stable communication and high-speed data transfer between the tablet and VCI. This design provides a more responsive experience than Bluetooth-based connections, especially during system scans, live data viewing, and coding operations.
✅Bluetooth Wireless Diagnostics With VCI:
The ONE LITE scan tool comes with a Bluetooth 5.0 VCI, which supports a wireless diagnostic range of up to 33 feet (10 meters), allowing you to diagnose without being confined to cables or tight spaces. Stable and fast wireless diagnosis provides a comfortable repair environment. It also offers VCI cables to increase connectivity options.
✅Diagnostics with CAN-FD/DOIP:
CAN-FD enables high-performance real-time communication between ECU within the vehicle.DOIP brings the possibility of high-bandwidth, long-distance transmission for vehicle diagnostics.Support BMW/Benz/VW/Audi/Volvo/JLR/Nissan/GM/Renault/Porsche.Coverage includes 2013+ BMW, 2016+ VW and Volvo, 2017+ Jaguar, 2018+ Mercedes-Benz, 2020+ GM and Chrysler models, and other systems that rely on advanced communication standards.
✅Unlock Renault、FCA、VW、Nissan Infiniti Access:
This trusted feature grants access to crucial vehicle data, enabling precise and reliable repairs on Renault、FCA、VW、Nissan Infiniti models, ensuring a higher level of service and accuracy.
✅AI Topfix:
Navigate complex diagnostics effortlessly using the advanced guided function, you’ll experience step-by-step assistance, making it easier to diagnose. Instantly decode, analyze, and resolve DTCs with AI-powered insights, minimizing downtime and maximizing accuracy. Perfectly tailored for a vast range of makes and models, ensuring versatility in every garage with this TOPDON scanner. Slash diagnostic time by 50% and tackle more jobs daily. Reduce comebacks, elevate customer trust, and grow your revenue.
✅15 Languages Support:
English, French, German, Spanish, Portuguese, Russian, Japanese, Korean, Italian, Traditional Chinese, Chinese, Turkish, Polish, Serbian, Slovak
Please note: The vehicle software need to be re-downloaded after you change the language.
👍Specifications(Tablet):
CPU: 8-core processor, 2.0 GHz
Memory: 4 GB RAM
Storage: 128 GB ROM
Display: 10.1-inch LCD, 1280 × 800 resolution
Battery: 10,000 mAh (3.8V), PD fast charging (5V/3A, 9V/3A, 12V/2.5A)
Camera: 8 MP rear camera with flash, 77.1° field of view, autofocus
Bluetooth: Bluetooth 5.0 (range: 33 ft / 10 m)
Wi-Fi: Dual Wi-Fi modules, STA/AP modes
Wi-Fi pairing with subordinate devices
2.4 GHz IEEE 802.11 b/g/n; 5 GHz IEEE 802.11 a/n/ac
I/O: Power button, USB-A (host), USB-C (host/device)
Sensors: Ambient light sensor (ALS), temperature sensor, acceleration sensor (G-sensor)
Operating System: Android 12.0 (closed system)
Operating Temperature: −10°C to 50°C (14°F to 122°F)
Storage Temperature: −20°C to 70°C (−4°F to 158°F)
Product Dimensions: 311 × 207 × 39 mm (12.24 × 8.15 × 1.54 in)
Net Weight: 1,574 g (3.47 lb)
👍Specifications(VCI):
-Bluetooth: 5.0 (range: 33 ft / 10 m)
-Wi-Fi: AP mode; 802.11 b/g/n; 2.4 GHz; 2T2R; 300 Mbps
-Operating Temperature: −10°C to 50°C (14°F to 122°F)
-Storage Temperature: −20°C to 70°C (−4°F to 158°F)
-Product Dimensions: 114.8 × 51.0 × 29.0 mm (4.52 × 2.00 × 1.14 in)
-Net Weight: 96 g (3.39 oz)
👍Packing List:
1*TOPDON ONE
1*ONE VCI
1*Charger
1*Diagnostic extension cable
1*USB-C to USB-C cable
1*USB-A to USB-C cable
1*Quick user guide
1*Product list
1*Carrying case
1*Packaging box
Please check the Vehicle List below before Purchase
NEW Tire Pressure Monitor Sensor TPMS Activation Tool

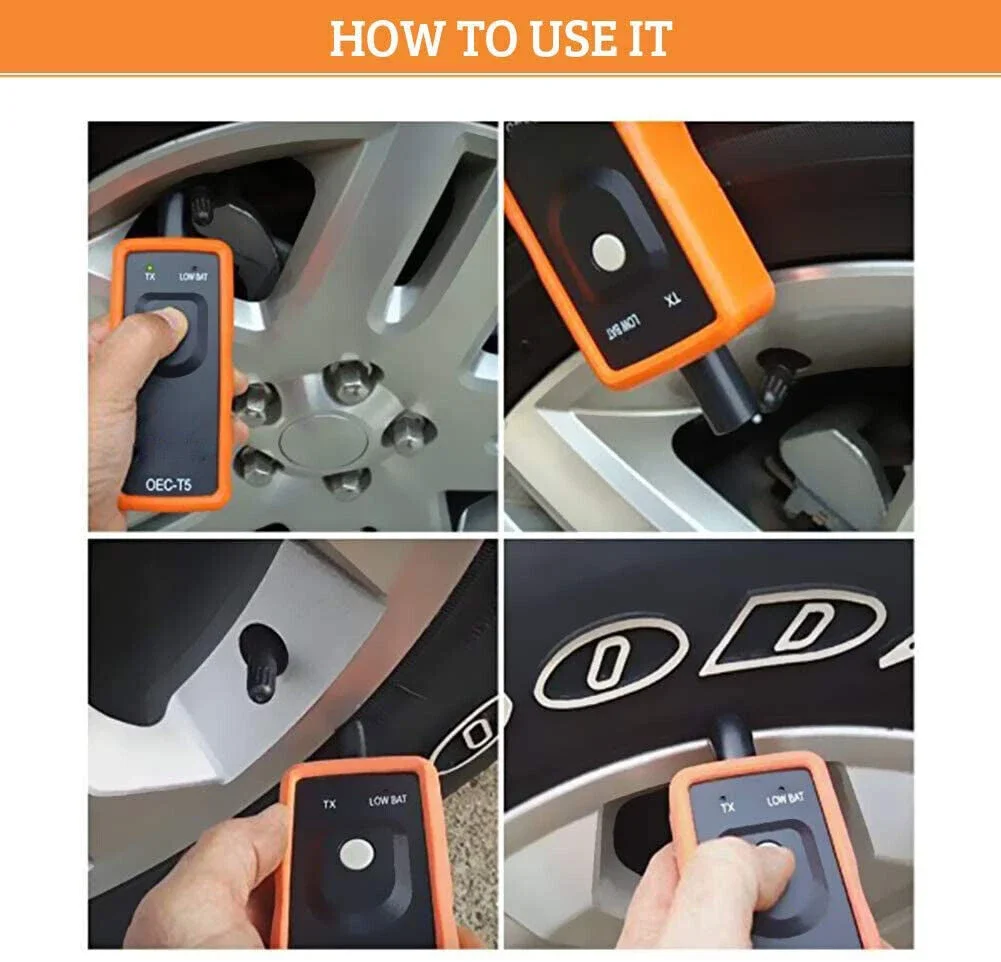

Step 2 - Read tire pressure sensor information
Step 3 - Same method to read other tire pressure information
Packing List:

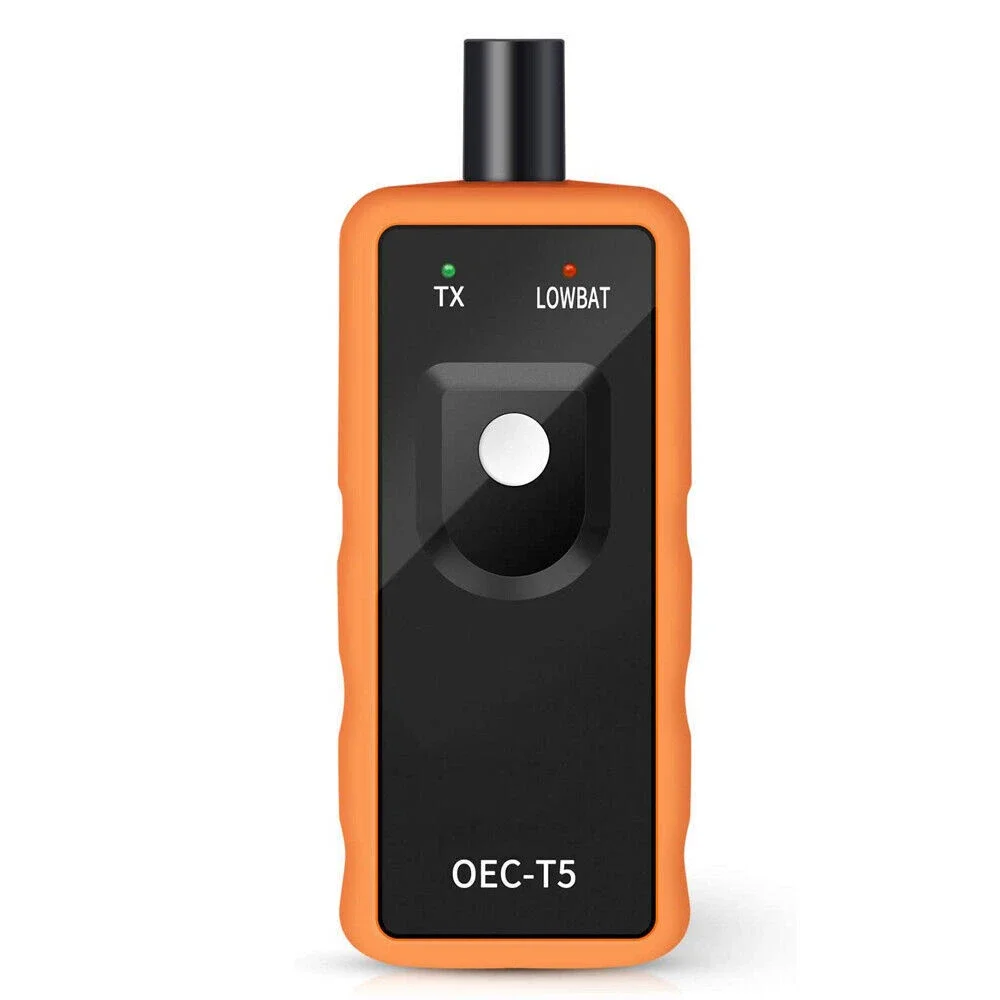

1*TPMS Reset Tool

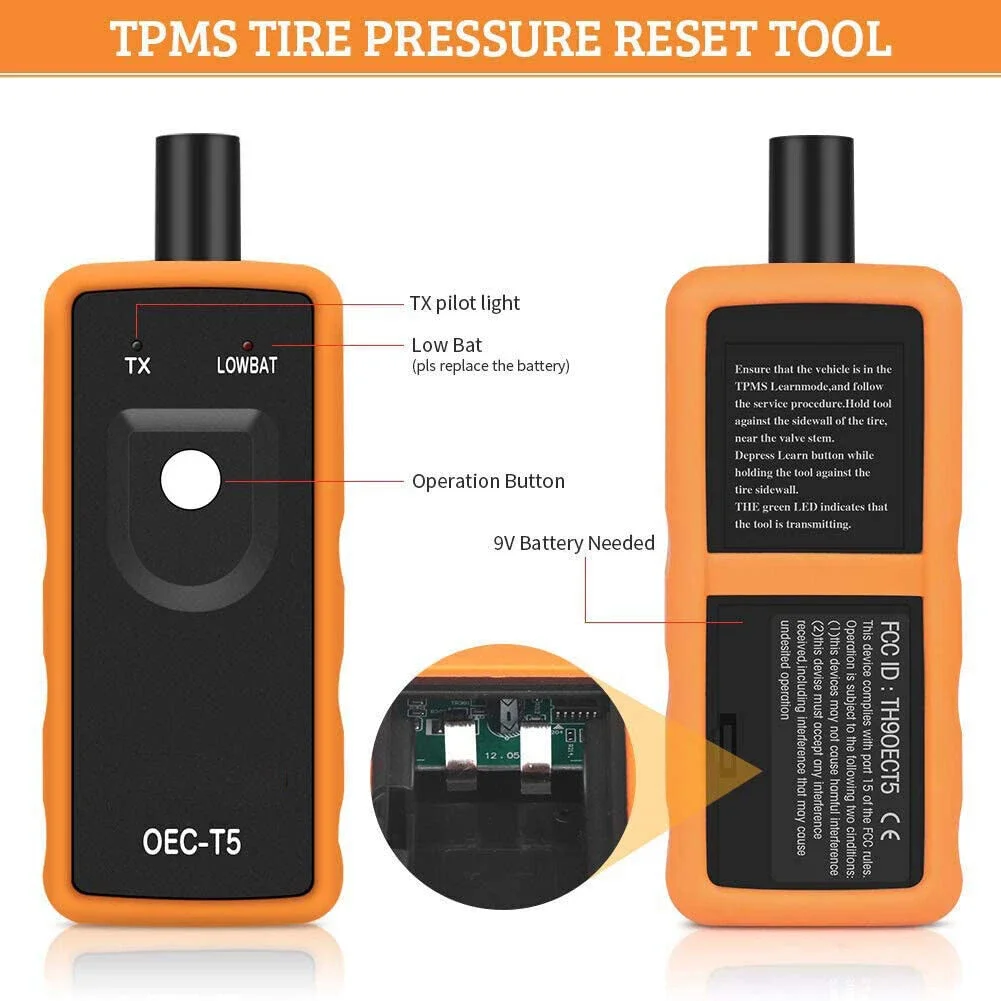

NOTE: The package does not include the charger and battery, please buy them by yourself

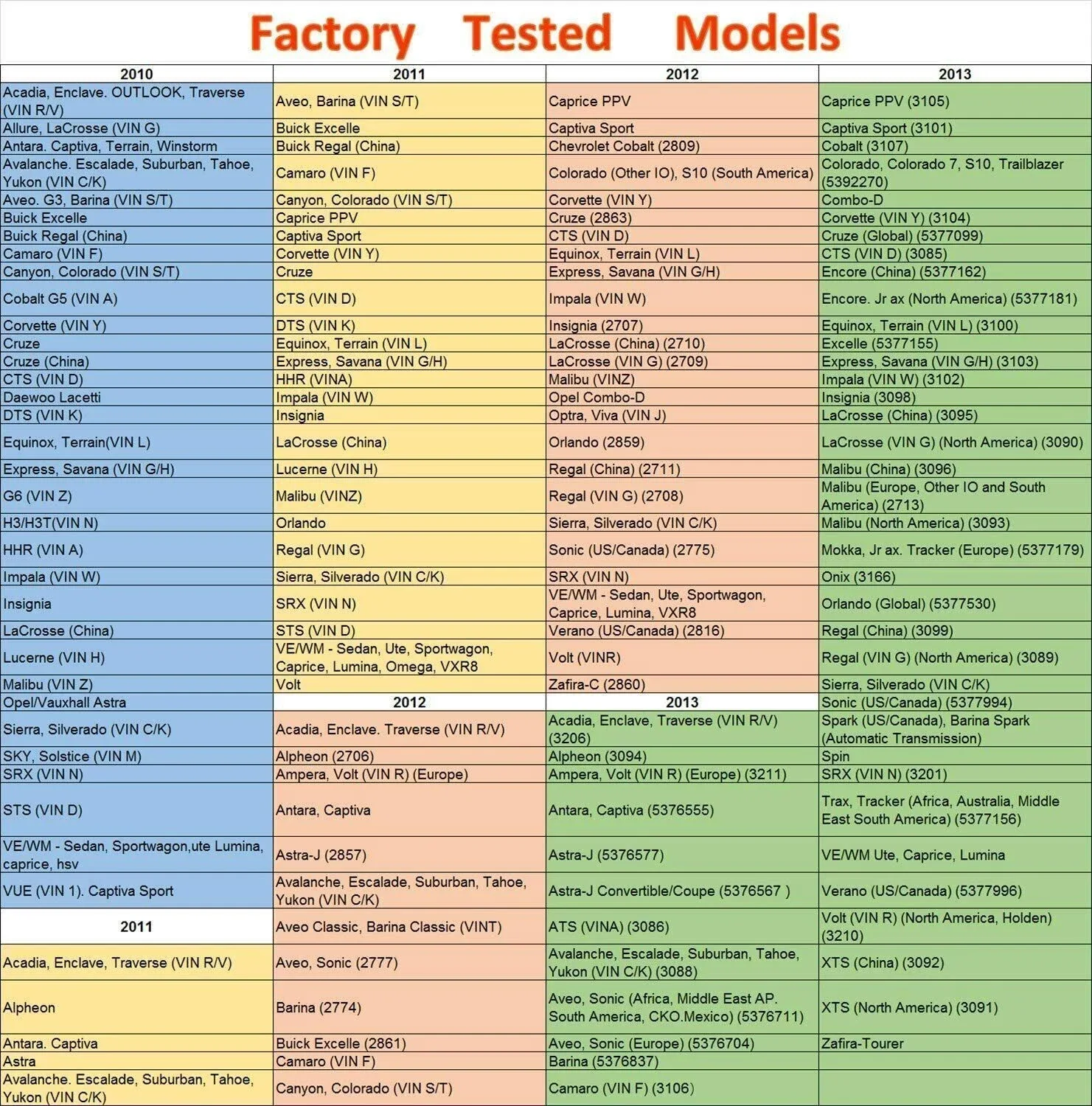

Vehicle List:
