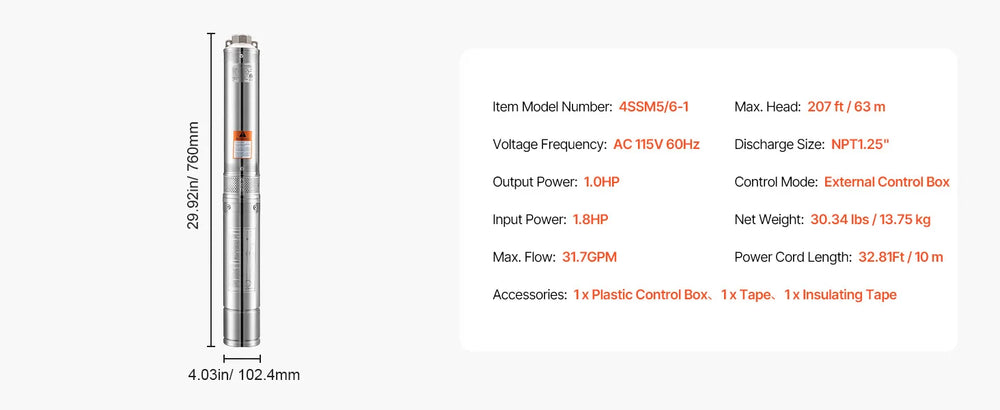

SPECIFICATIONS
Brand Name: Amocart
Certification: CE
Control Mode: External Control Box / Built-in
Discharge Size: NPT1.25"
Does it include batteries: Not included
Fuel: Electric
High-concerned chemical: None
Input Power: 1.8HP / 1.8HP / 2.5HP / 3.1HP
Item Model Number: 4SSM5/6-2, 4SSM5/6-1, 4SSM5/8-1, 4SSM5/12-1
Max. Flow: 31.7GPM
Max. Head: 207 ft / 63 m, 207 ft / 63 m, 276 ft / 84.12 m, 450 ft / 137.16 m
Net Weight: 29.54 lbs / 13.4 kg, 30.34 lbs / 13.75 kg, 34.28 lbs / 15.55 kg, 38.74 lbs / 17.55 kg
Origin: China Mainland
Output Power: 1.0HP / 1.0HP / 1.5HP / 2.0HP
Power Source: Electric
Structure: Submersible Well Pump
Voltage Frequency: AC 230V 60Hz / AC 115V 60Hz
【Large Flow, High Lift】:

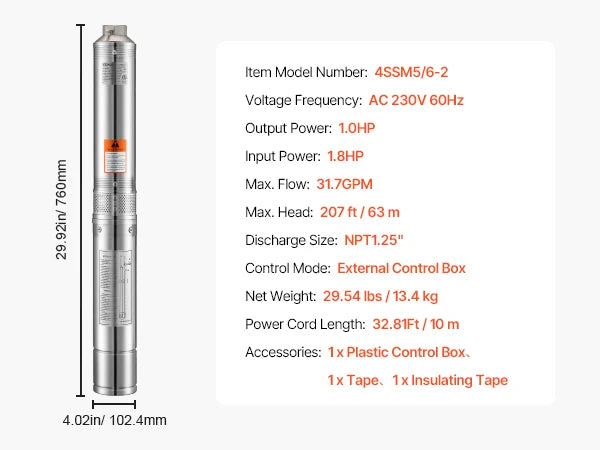

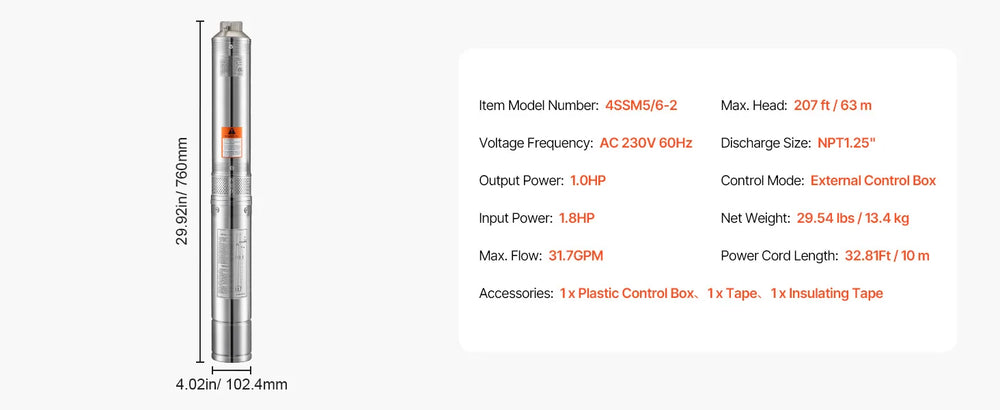

1HP 230V External——This 230V deep well submersible pump delivers 1.8HP input power and 1HP output, offering exceptional flow and lift capabilities. With a maximum lift of 207 ft (63 m) and a flow rate of up to 31.7 GPM, it meets a wide range of water supply needs. Enjoy strong water pressure and a continuous, reliable flow across multiple applications.

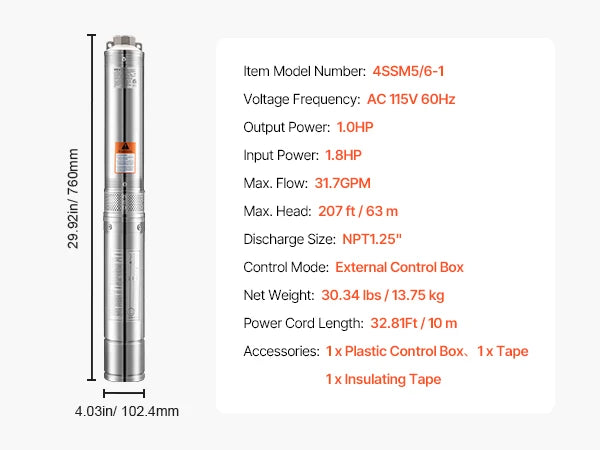

1HP 115V External——This deep well submersible pump delivers 1.8HP input power and 1HP output, offering exceptional flow and lift capabilities. With a maximum lift of 207 ft (63 m) and a flow rate of up to 31.7 GPM, it meets a wide range of water supply needs. Enjoy strong water pressure and a continuous, reliable flow across multiple applications.

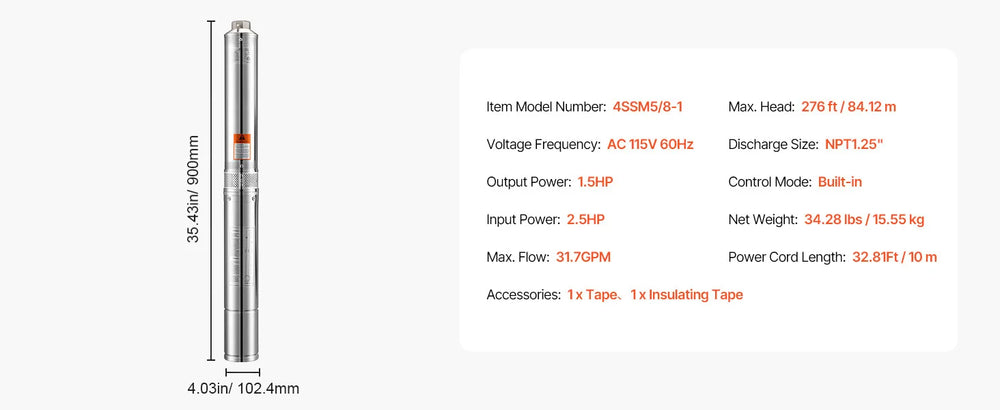

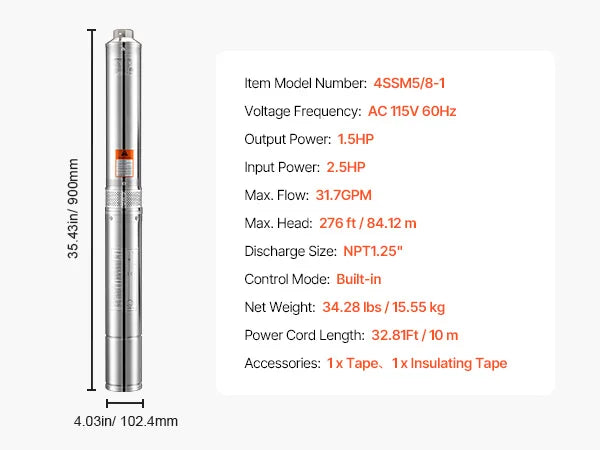

1.5HP 115V Built-in——This deep well submersible pump delivers powerful performance with 2.5HP input and 1.5HP output. Capable of reaching a maximum lift of 276 ft (84.12 m) and a flow rate of 31.7 GPM, it provides strong water pressure and a continuous, reliable water flow for all your needs.

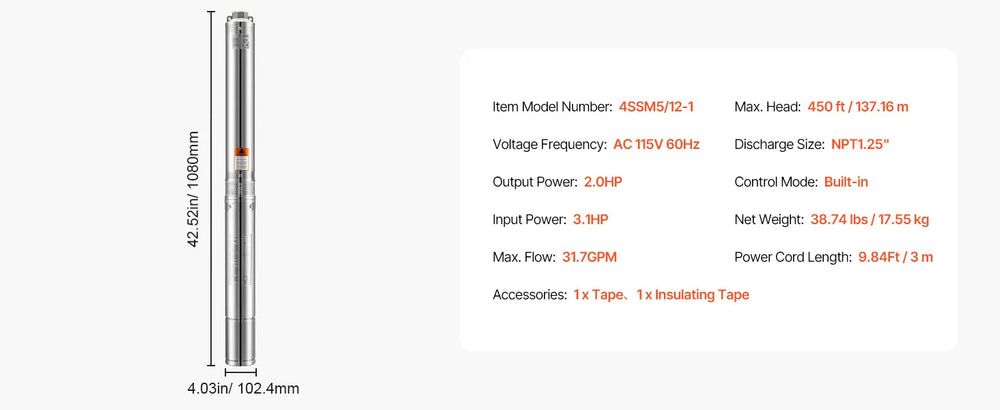

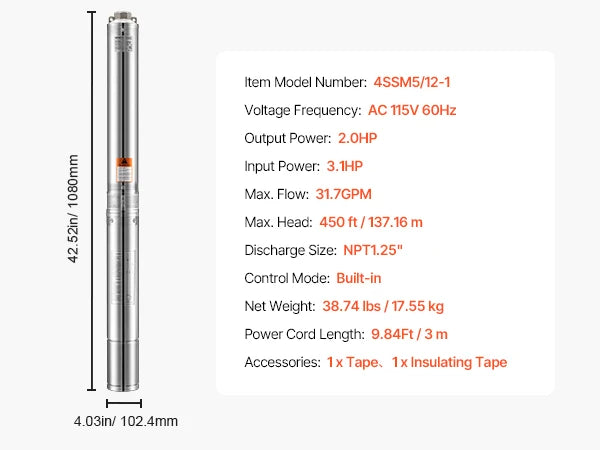

2HP 115V Built-in——This deep well submersible pump delivers powerful performance with 3.1HP input and 2HP output. Capable of reaching a maximum lift of 450 ft (137.16 m) and a flow rate of 31.7 GPM, it provides strong water pressure and a continuous, reliable water flow for all your needs.

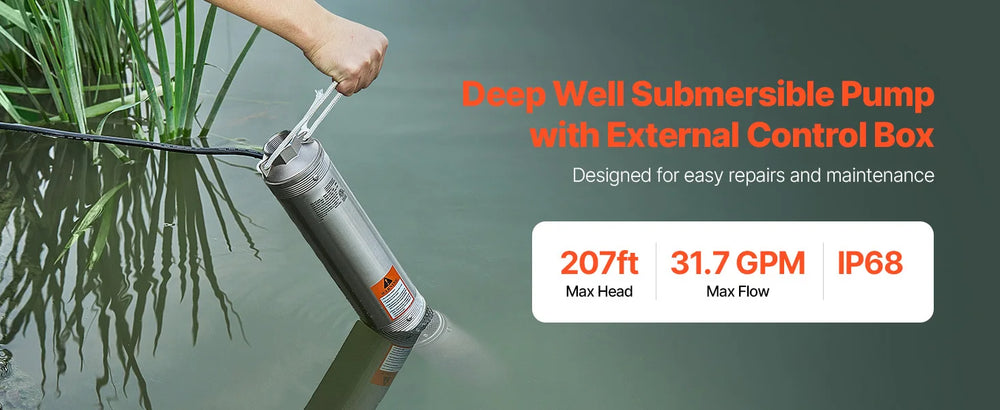

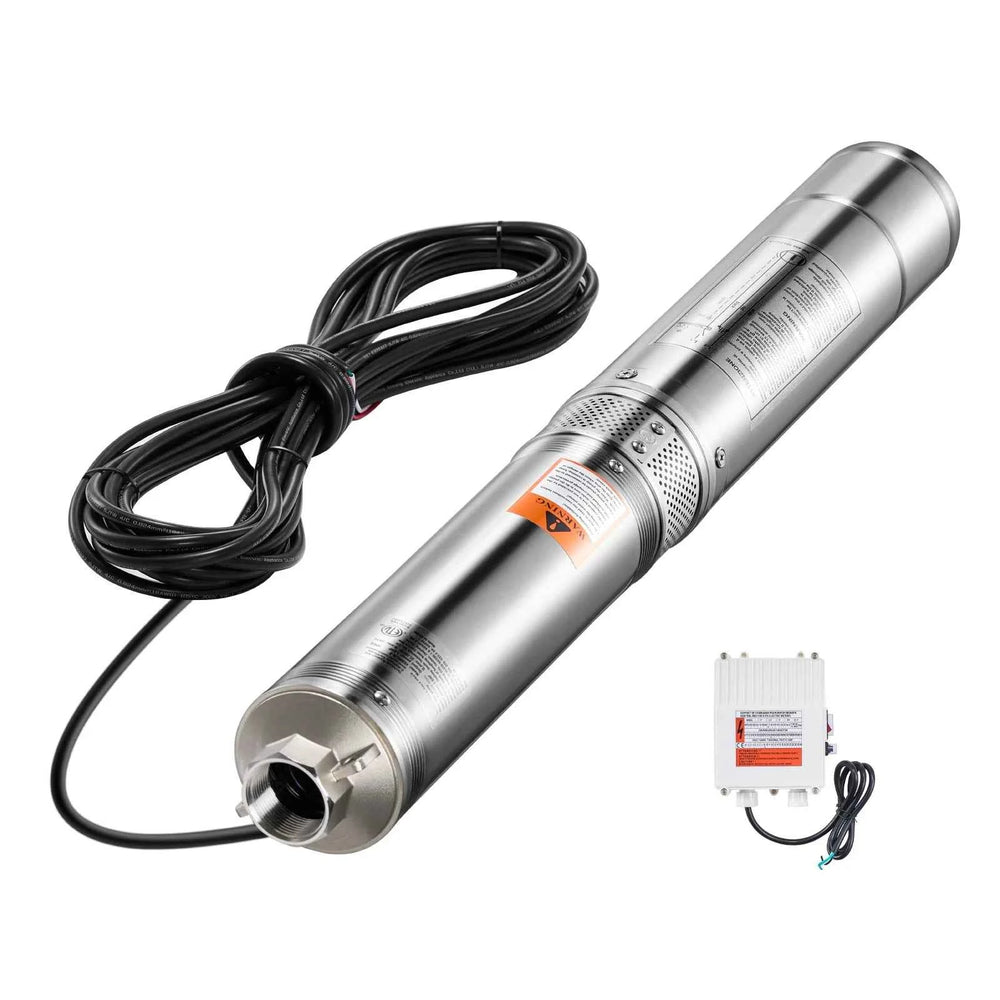

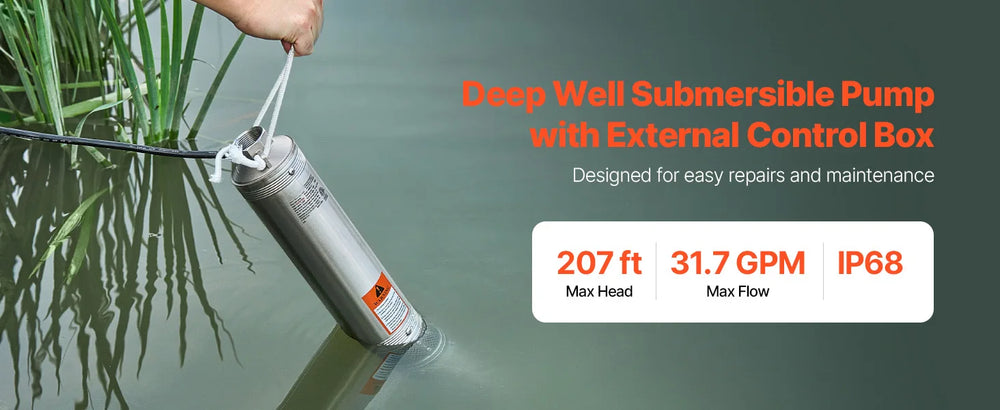

【With External Control Box】: 1.5HP 115V Built-in / 2HP 115V Built-in——This deep well pump comes with an external control box for easy operation and maintenance. Featuring a copper motor, it provides strong, stable water flow, ensuring reliable performance for all your water needs.

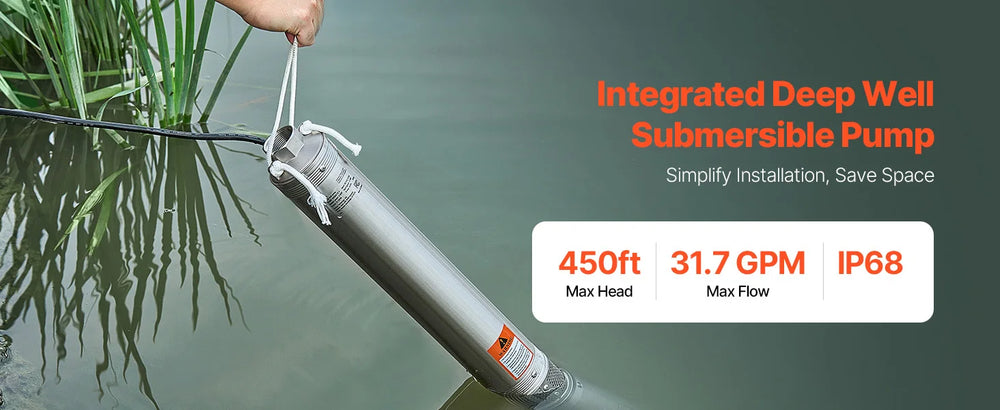

【Space-Saving Integrated Design】: 1HP 230V External / 1HP 115V External——This deep well pump features a built-in control box seamlessly integrated with the pump body, making installation a breeze. Save space, reduce external wiring needs, and enjoy easy setup—even in tight spaces.

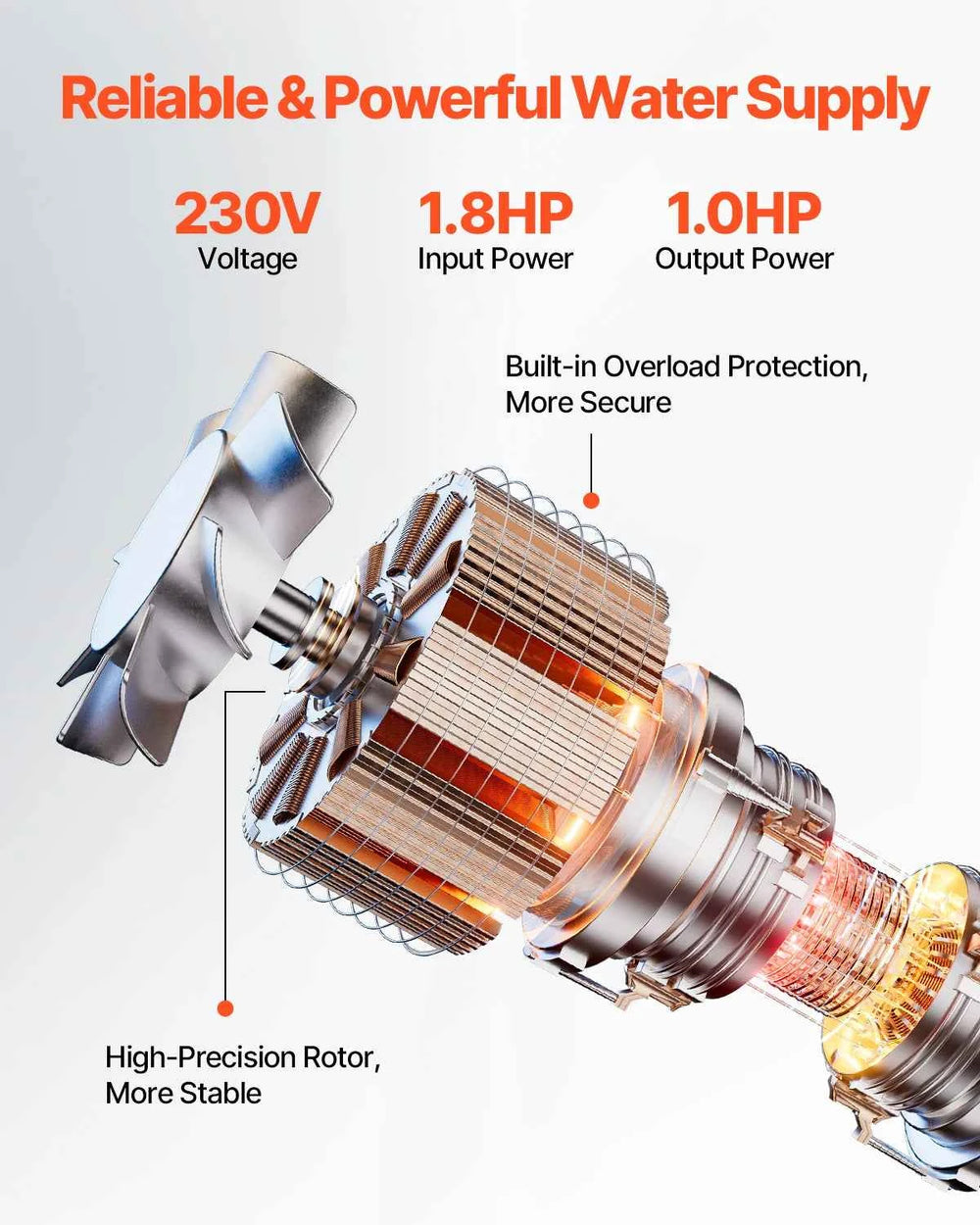

【Powerful Pure Copper Motor】: Equipped with a copper wire motor, this deep well submersible water pump delivers strong and stable water flow. The motor is designed with overheat protection to avoid overheating, ensuring optimal performance for reliable, long-lasting operation.

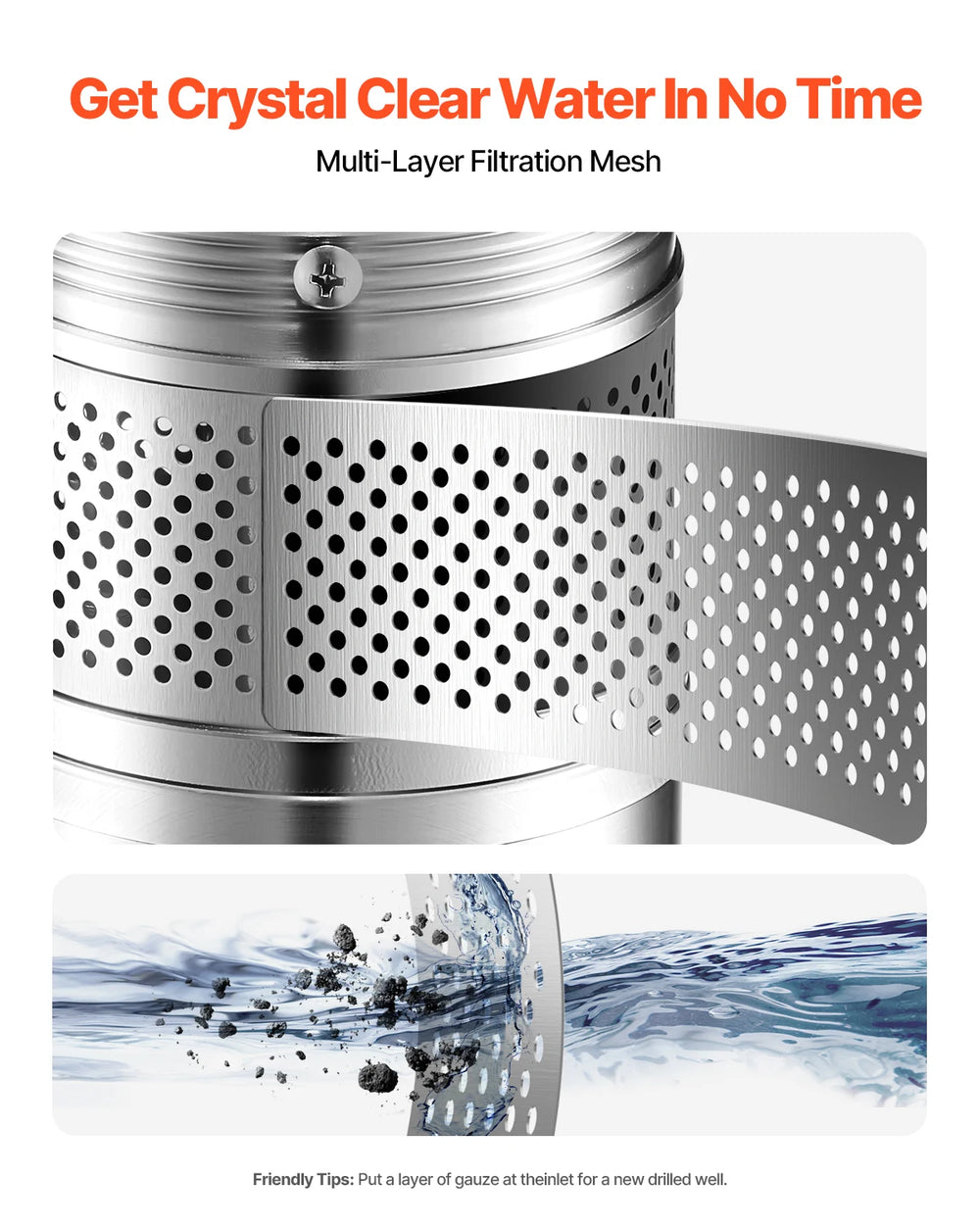

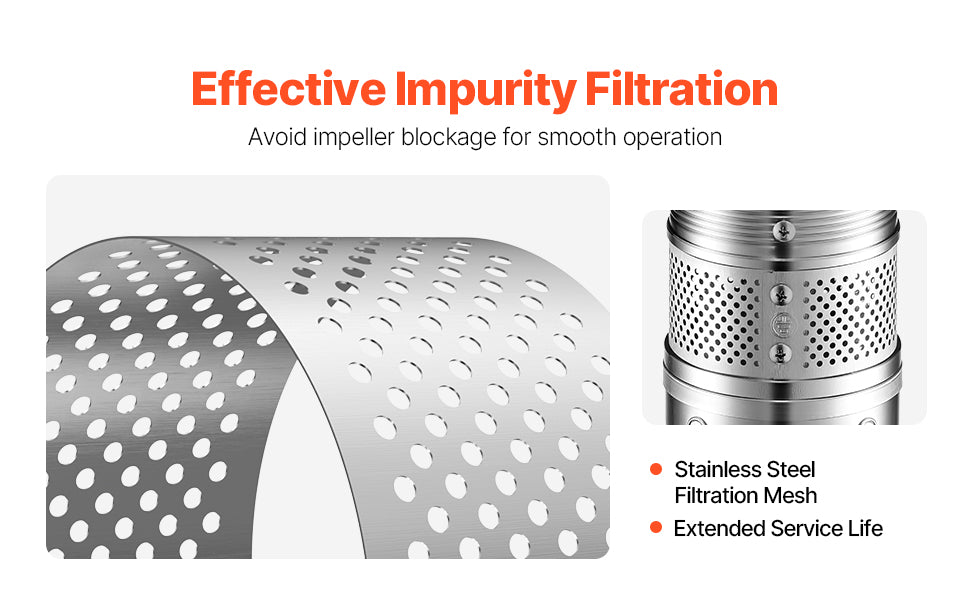

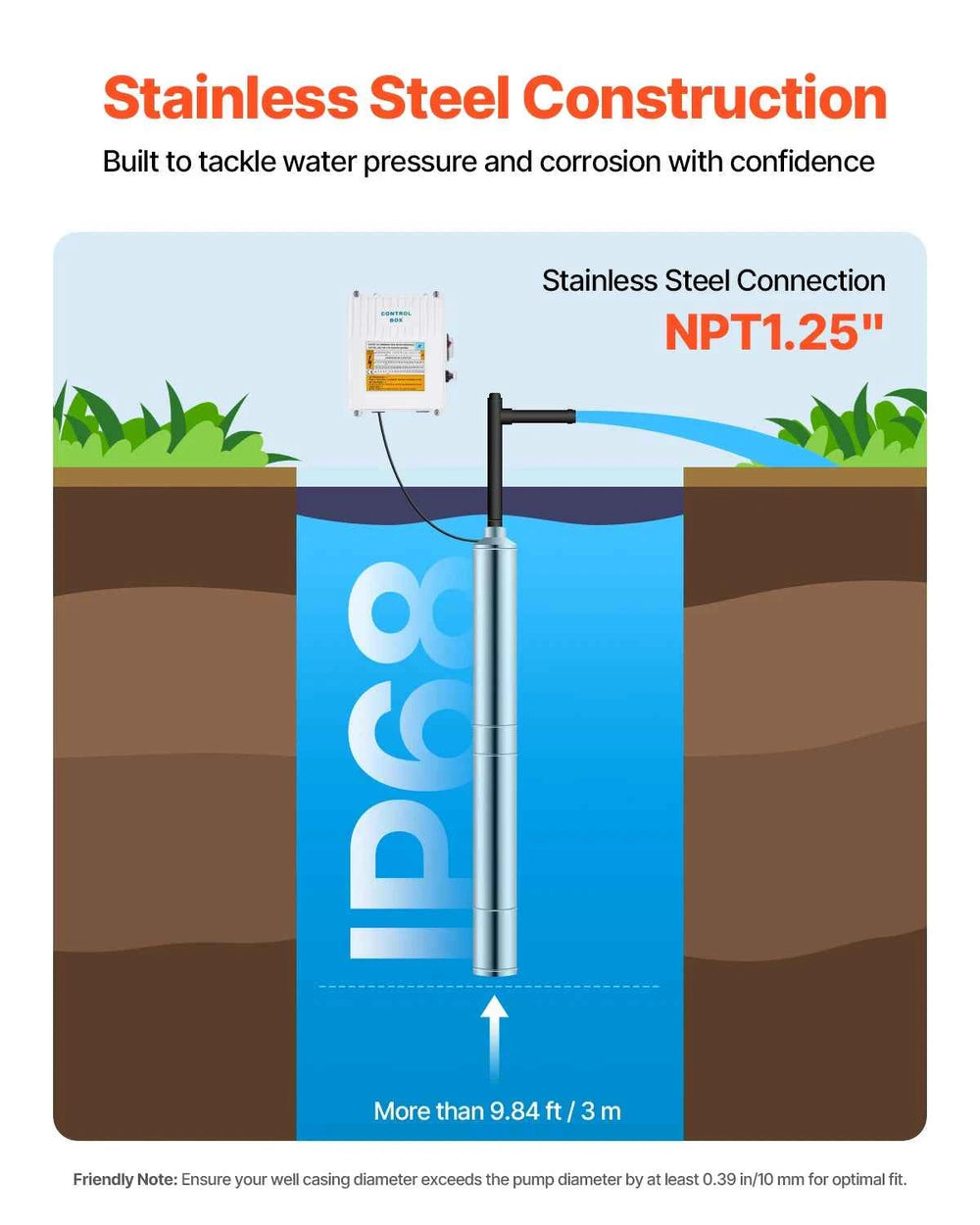

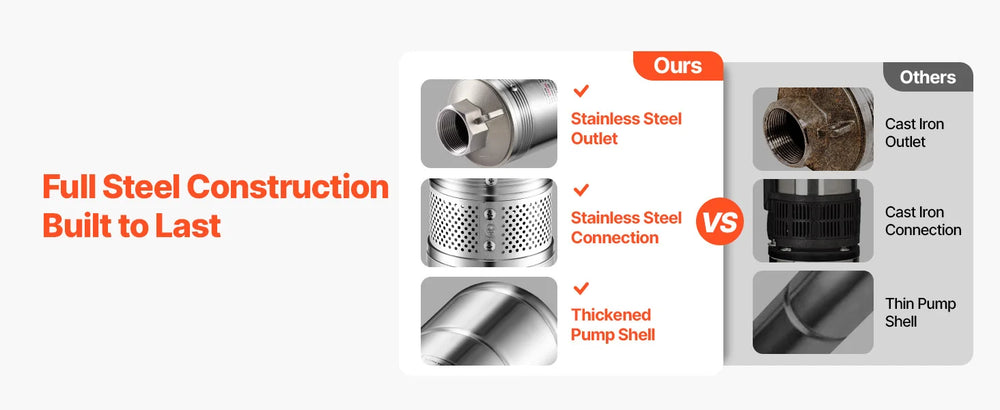

【Built to Last, Corrosion-Resistant】: Designed for durability, our deep well submersible pump boasts an IP68 waterproof rating and is crafted with stainless steel stainless steel connection and filtration mesh. This corrosion-resistant construction resists rust and keeps debris out, effectively protecting the motor.

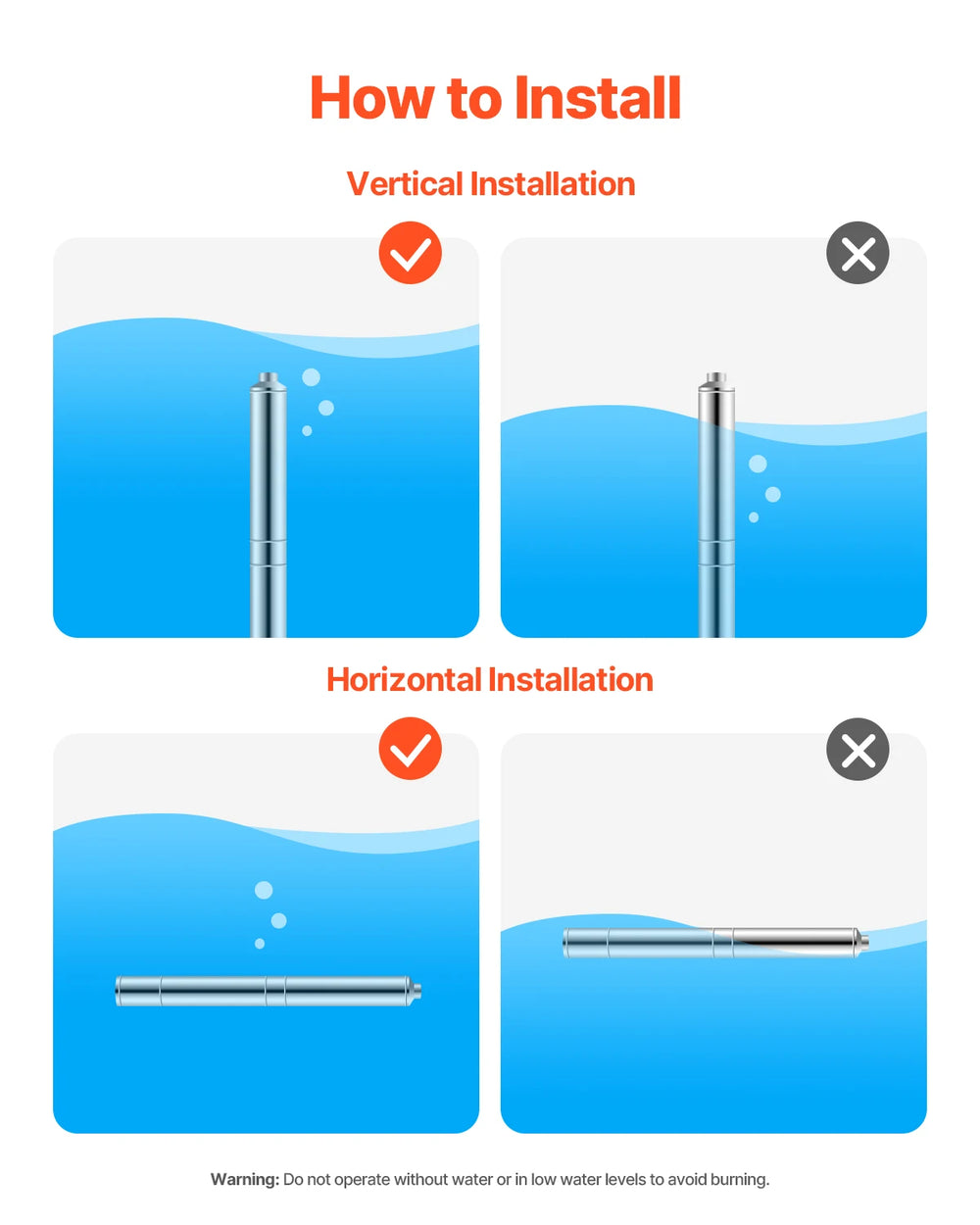

【Ideal for Any Water Source】: Our deep well pump is built to handle a variety of water sources, making it ideal for agricultural irrigation, livestock watering, residential water supply, river extraction, and pond maintenance. Warning: Put a layer of gauze at the inlet for a new drilled well. Ensure your well casing diameter exceeds the pump diameter by at least 0.39 in/10 mm for optimal fit. Do not use it without water or at low water levels to avoid burning.
1HP 230V External
