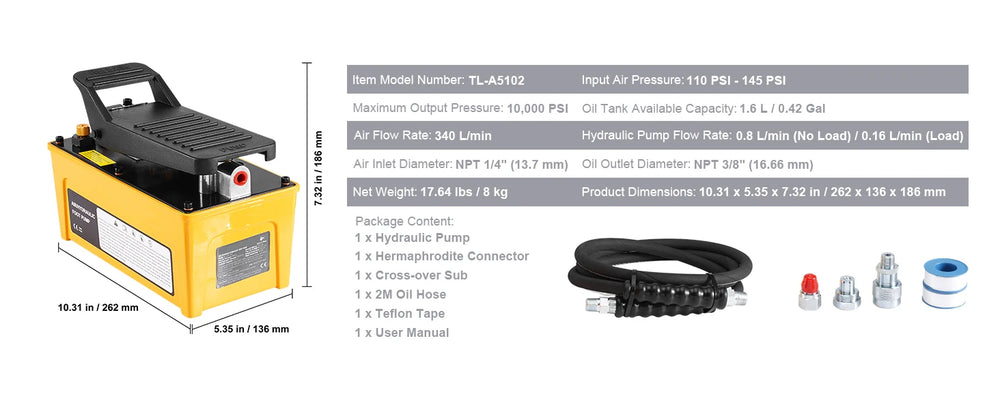

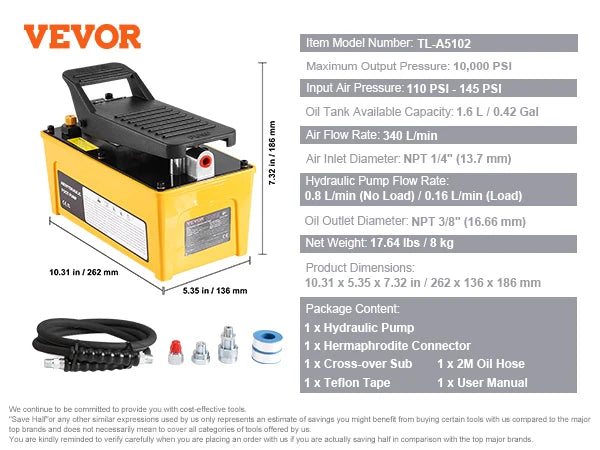

SPECIFICATIONS
Air Flow Rate: 340 L/min
Air Inlet Diameter: NPT 1/4" (13.7 mm)
Brand Name: Amocart
Certification: CE
Hign-concerned Chemical: None
Hydraulic Pump Flow Rate: 0.8 L/min (No Load) / 0.16 L/min (Load)
Input Air Pressure: 110 PSI - 145 PSI
Item Model Number: TL-A5102
Maximum Output Pressure: 10,000 PSI
Net Weight: 17.64 lbs / 8 kg

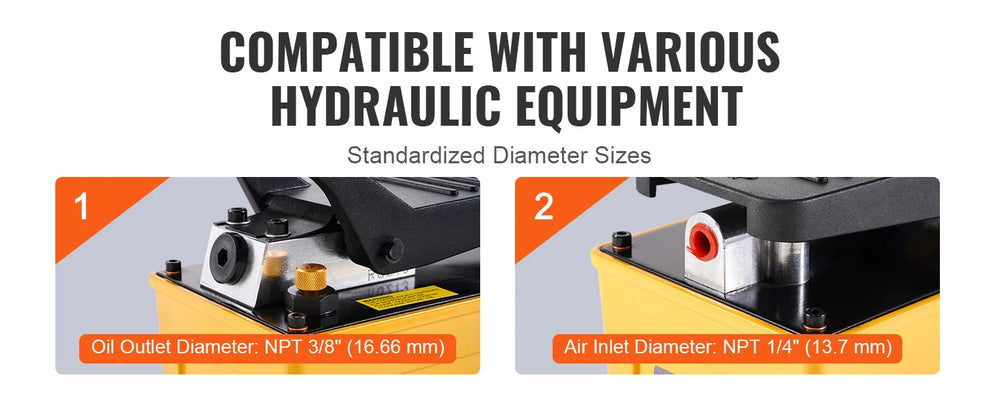

Oil Outlet Diameter: NPT 3/8" (16.66 mm)
Oil Tank Available Capacity: 1.6 L / 0.42 Gal
Origin: Mainland China
Product Dimensions: 10.31 x 5.35 x 7.32 in / 262 x 136 x 186 mm

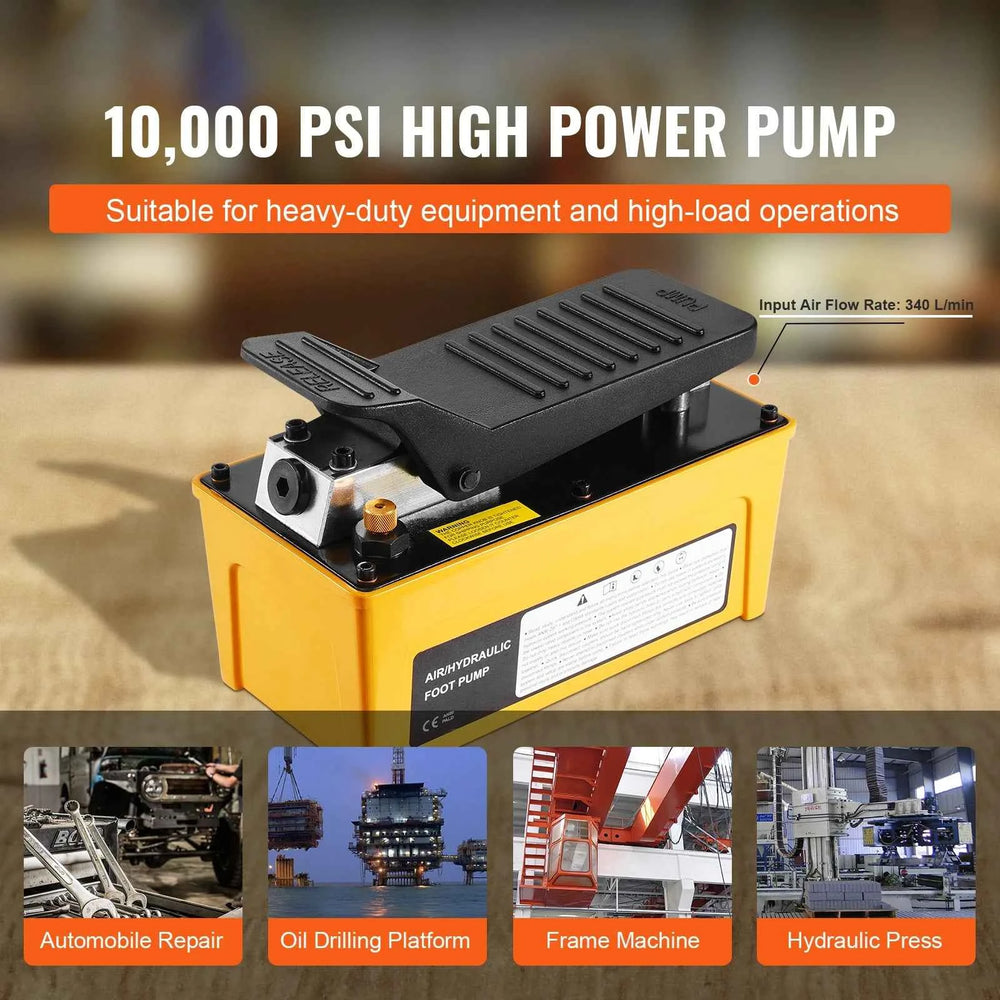

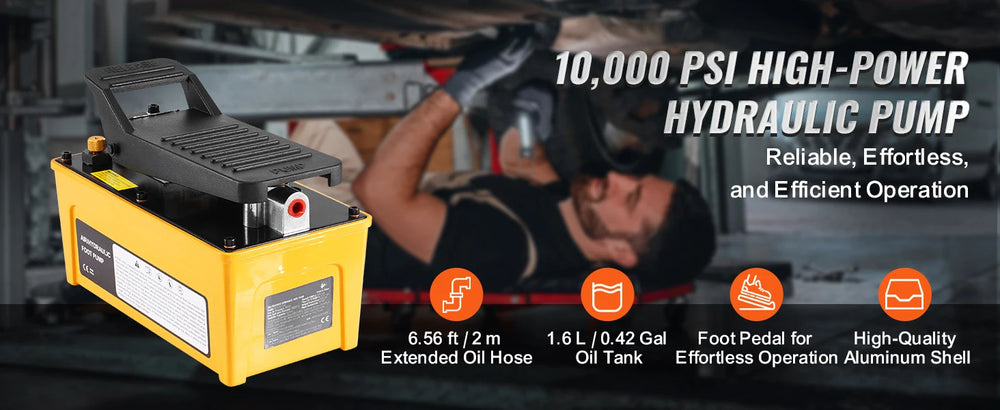

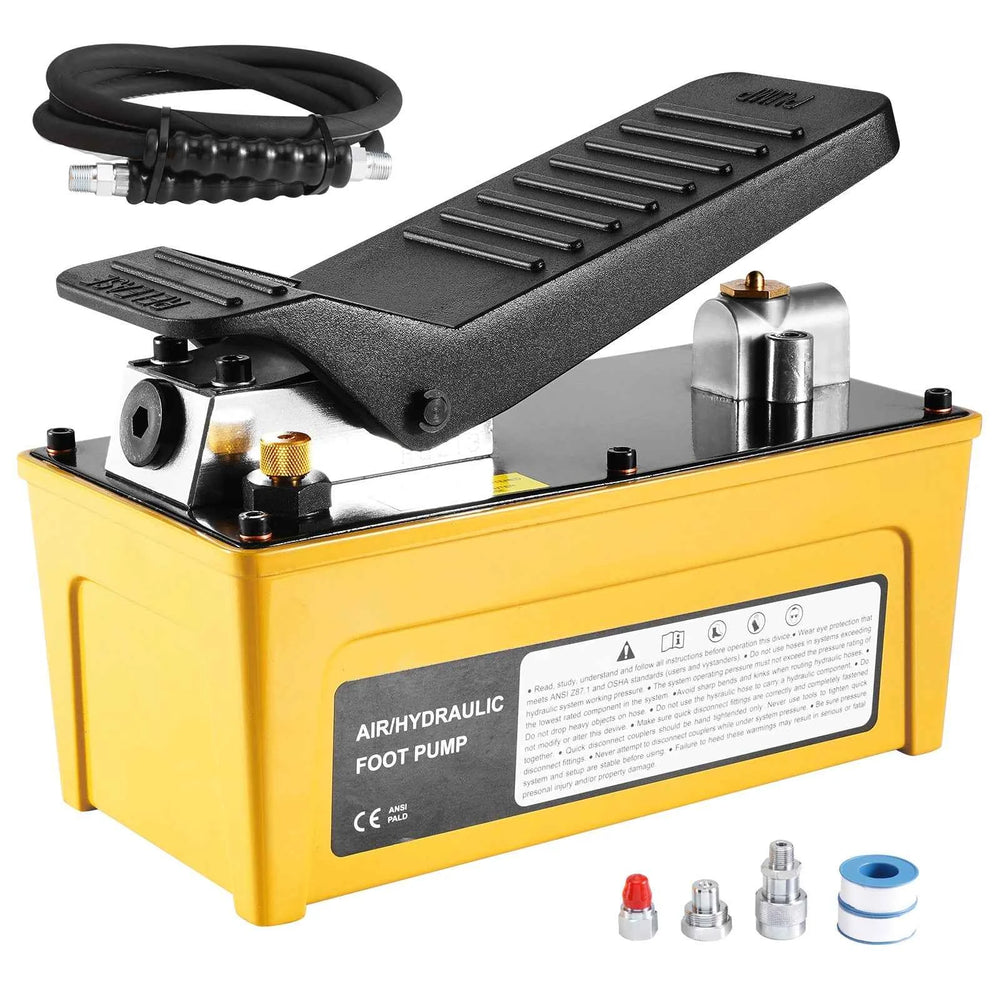

10,000 PSI High Power: Achieve up to 10,000 PSI of hydraulic pressure with an airflow of 340 L/min. This air hydraulic foot pump offers 0.8 L/min (no load) and 0.16 L/min (load) flow rates, making it ideal for heavy-duty tasks like lifting, pressing, bending, straightening, cutting, assembling, and disassembling.

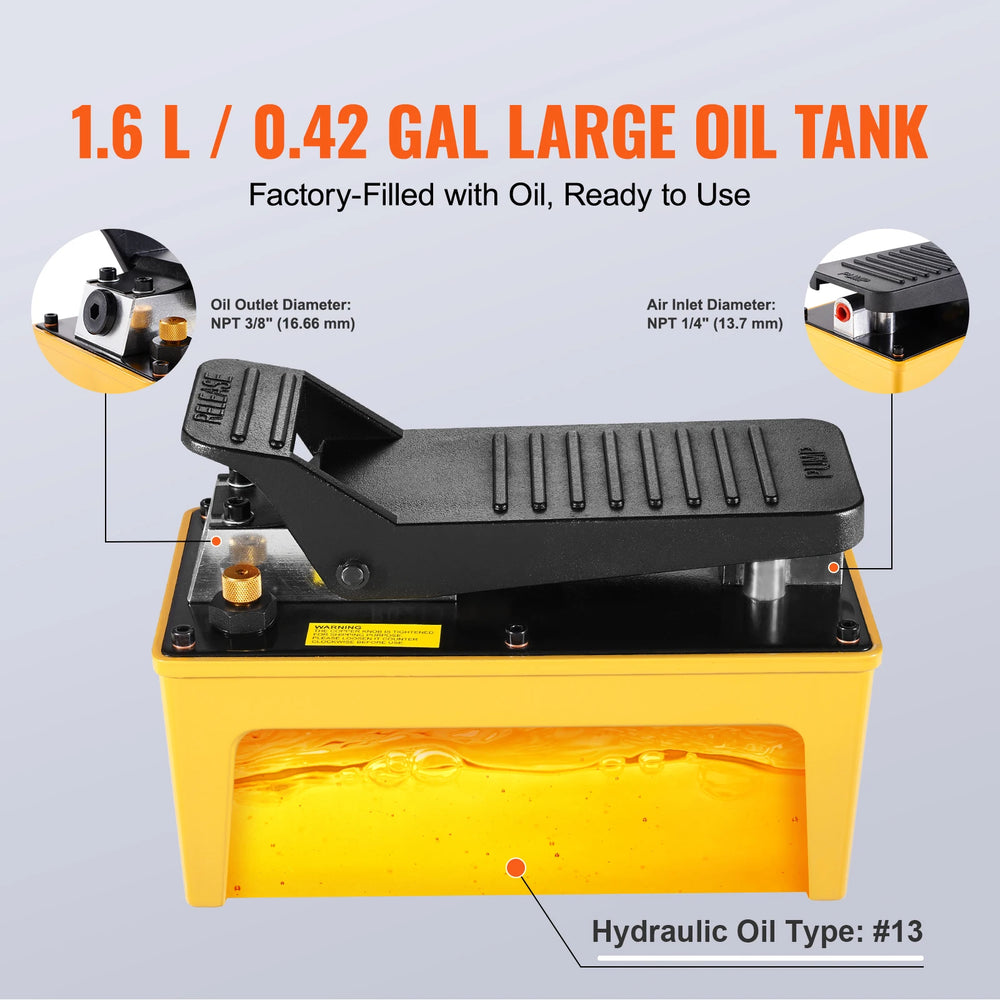

Factory-Filled with Oil: This air hydraulic pump comes with a large 1.6 L / 0.42 gal tank factory-filled with hydraulic oil (#13) so you can start working immediately. This feature cuts down on setup time and effort. It includes an air inlet with NPT 1/4 in and a high-pressure output with NPT 3/8 in.

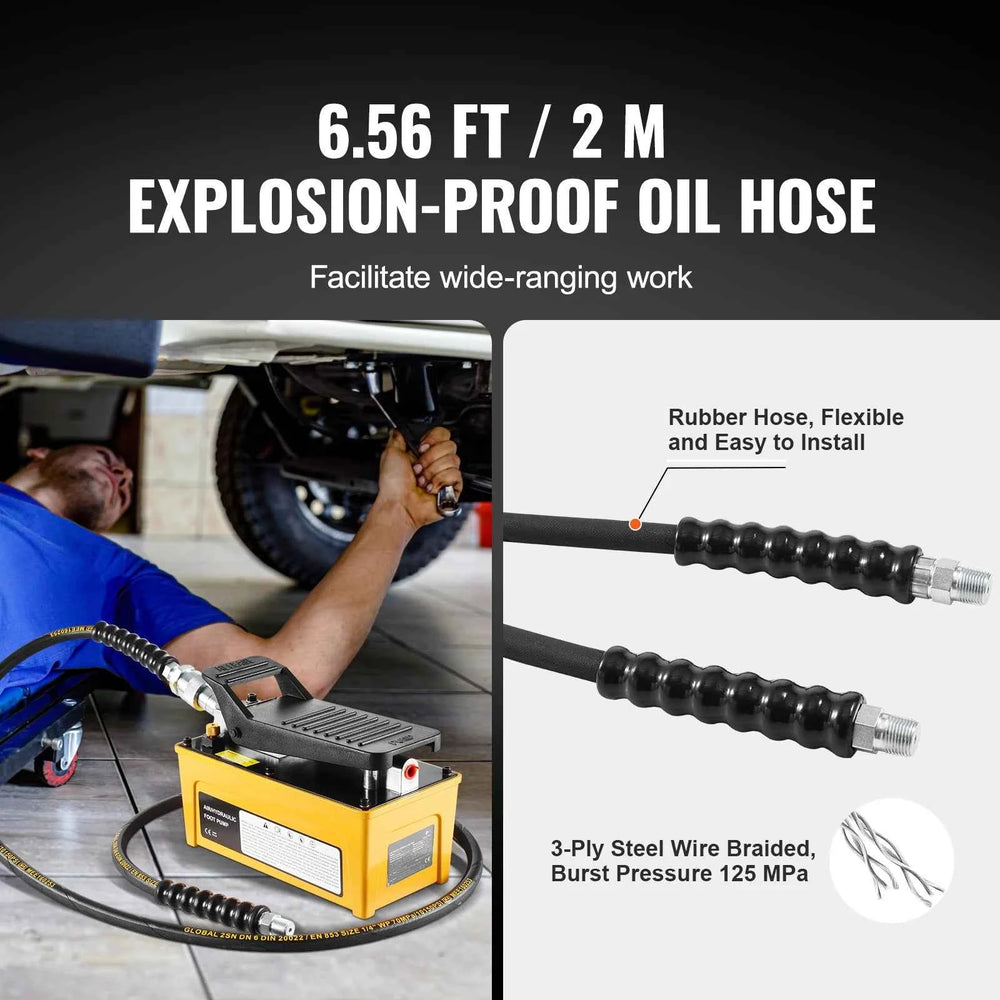

Long Oil Hose: This air actuated treadle foot pump equipped with a 6.56 ft / 2 m rubber hose reinforced with three layers of steel wire, capable of handling pressures up to 125 MPa. This design prevents leaks and allows for flexible, long-distance operation.

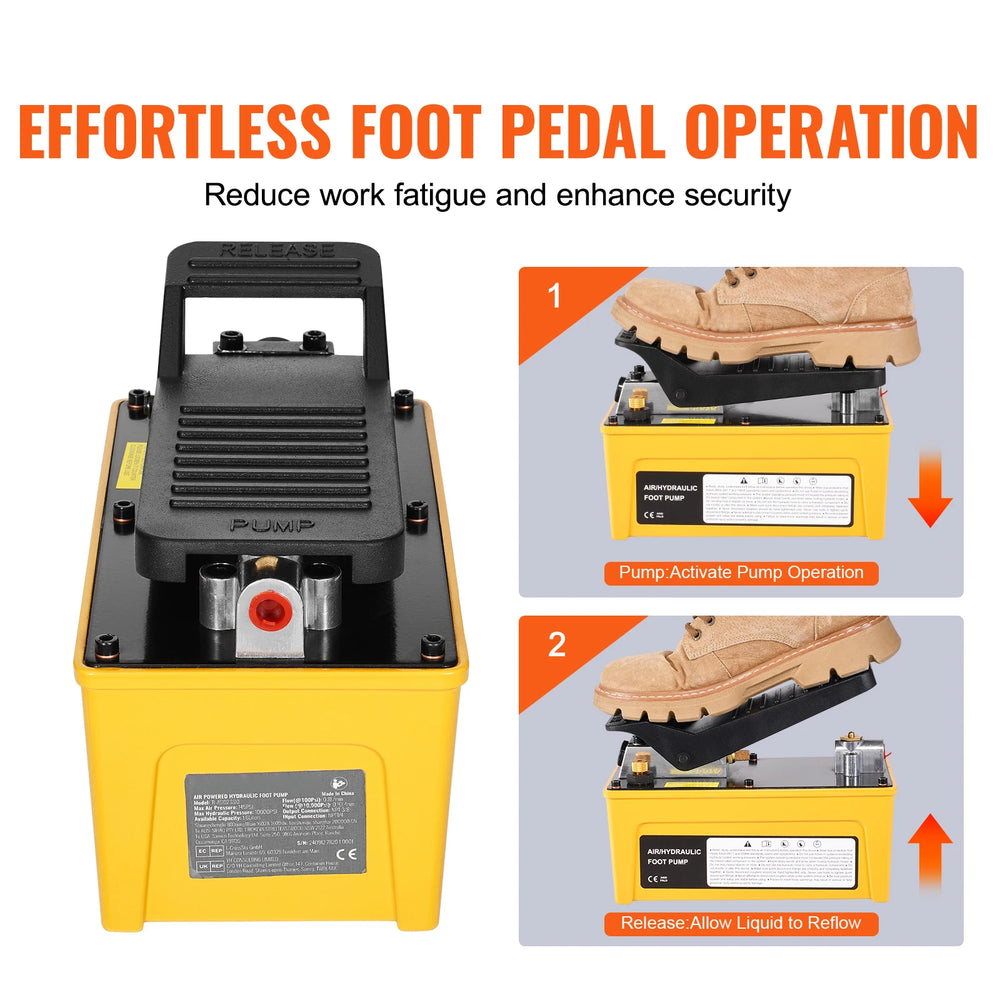

Effortless Foot Operation: The foot-operated air hydraulic pump includes hydraulic oil-no extra purchases are needed. Press down to build pressure and release quickly, making your job more straightforward and efficient.

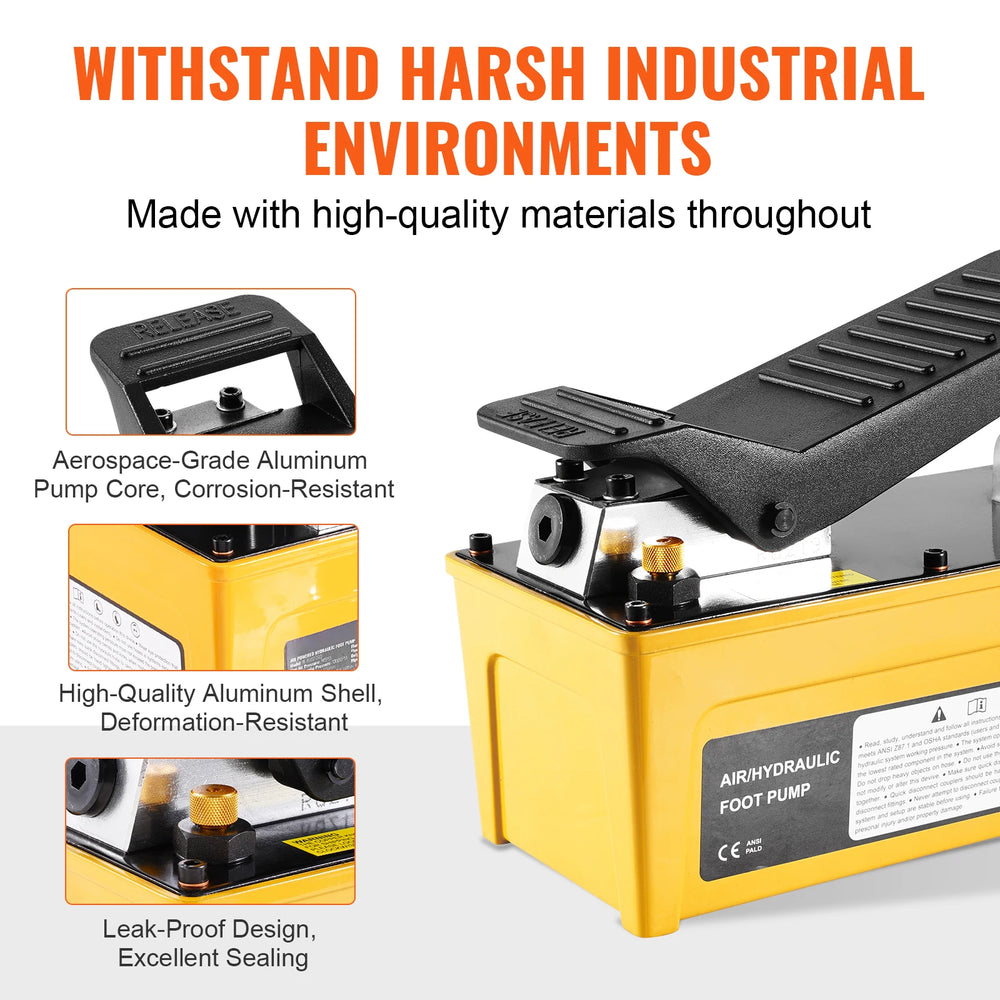

Durable and Tough: Made with aerospace-grade aluminum and a high-quality casing, this air hydraulic pump is built to withstand harsh industrial environments. The internal relief valve ensures reliable protection for the hydraulic components under pressure.
