SucceBuy Milling Working Table 7.3 X 4 Inch Worktable Compound Slide Table for All Drill Stands Bench Drilling Milling Machine

$74.78
Verfügbarkeit:
Auf Lager
Artikelnummer:
14:173#7.3 X 4 Inch;200007763:201336106
Produkttyp:
Unbekannter Typ
Anbieter
AMOCART
Sammlungen:
24/48 HOUR DELIVERY
SHIPPING TRACKING
GUARANTEED PRODUCTS

SPECIFICATIONS

Bottom size: 6.7 x 5 in / 170 x 130 mm

Brand Name: succebuy

Dial Spacing Length: 0.0004 in / 0.01 mm

Groove Interval Width: 1.3 in / 33 mm

High-concerned chemical: None

Item Dimensions(L x W x H): 7.3 x 4 x 4 in / 18.5 x 10 x 10.2 mm

Maximum Workpiece Weight: 66 lbs / 30 kg

Net Weight: 22 lbs / 10.1 kg

Origin: Mainland China

T-Shaped Groove Length: 2/5 in / 10 mm

The Spindle Spacing Length: 0.08 in / 2 mm

Travel Length: 3 in / 80 mm

Vertical Travel: 3 in / 75 mm

Working Height: 4 in / 102 mm

Working Table: 4 x 7.3 in / 185 x 100 mm

Product Description
Milling Machine Worktable
High Precision & Extended Worktable & Smooth Operation
This milling machine worktable was suitable for all drill stands, drilling, and milling machines and compatible with all types of positioning, milling, drilling, optical viewing, and staging. Easy-to-use cranks, widened table-board, t-shaped grooves, sliding table, and stable base, all of those make it.

  • Ergonomics and Accuracy

  • Reinforcement and Reliability

  • Easy to Adjust

  • Improved Processing Precision

Tough Equipment & Tools, Pay Less
SucceBuy is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, SucceBuy is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, SucceBuy's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose SucceBuy?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features

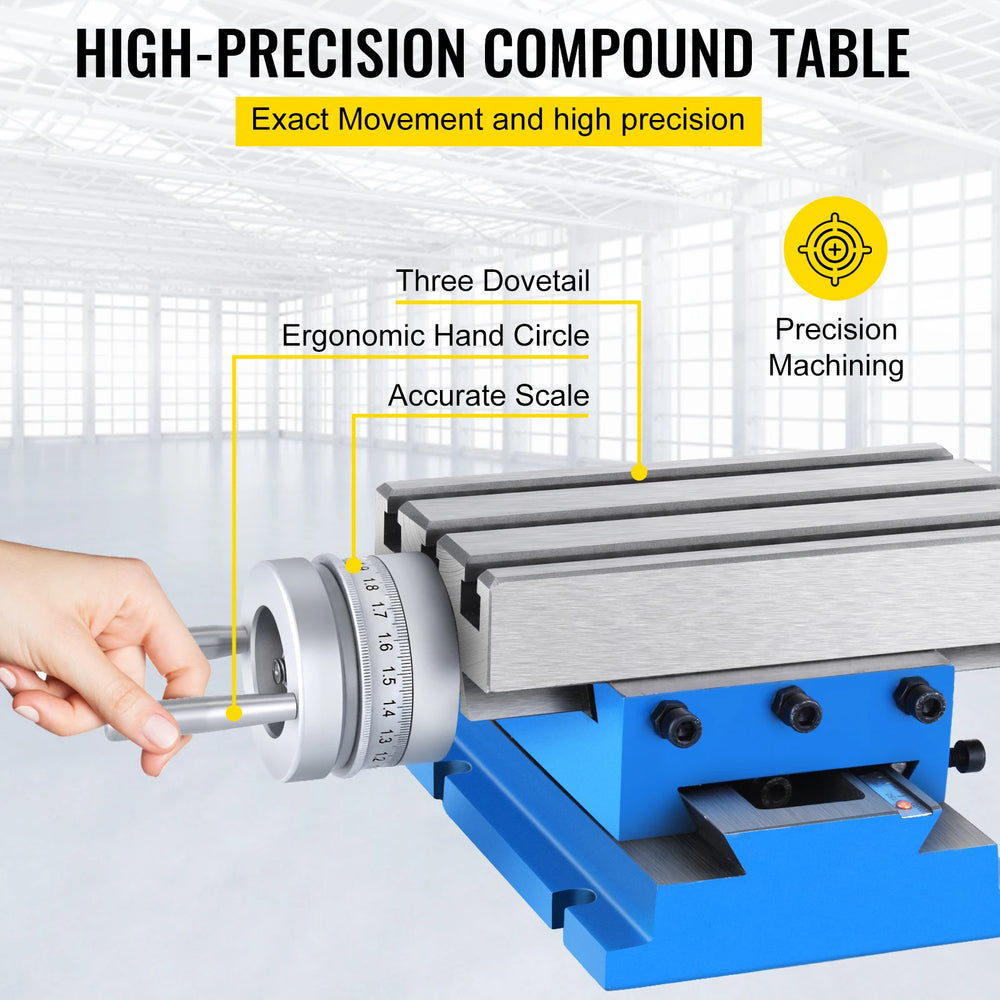

Easy-to-use Cranks
We adopted ergonomics in cranks design in the hope of best improving user experience. Meanwhile, the most precise scale was provided for the most accurate adjustment.
Widened Table-board
The table-board was widened to 100mm so as to better meet various forms of processing needs, exempting you from unnecessary misgivings about the compatibility.
T-Shaped Ggrooves
The item has three grooves that have a length of 10 mm (2/5 inch) and an interval width of 35 mm (1.3 inch), clamping processed objects tightly.

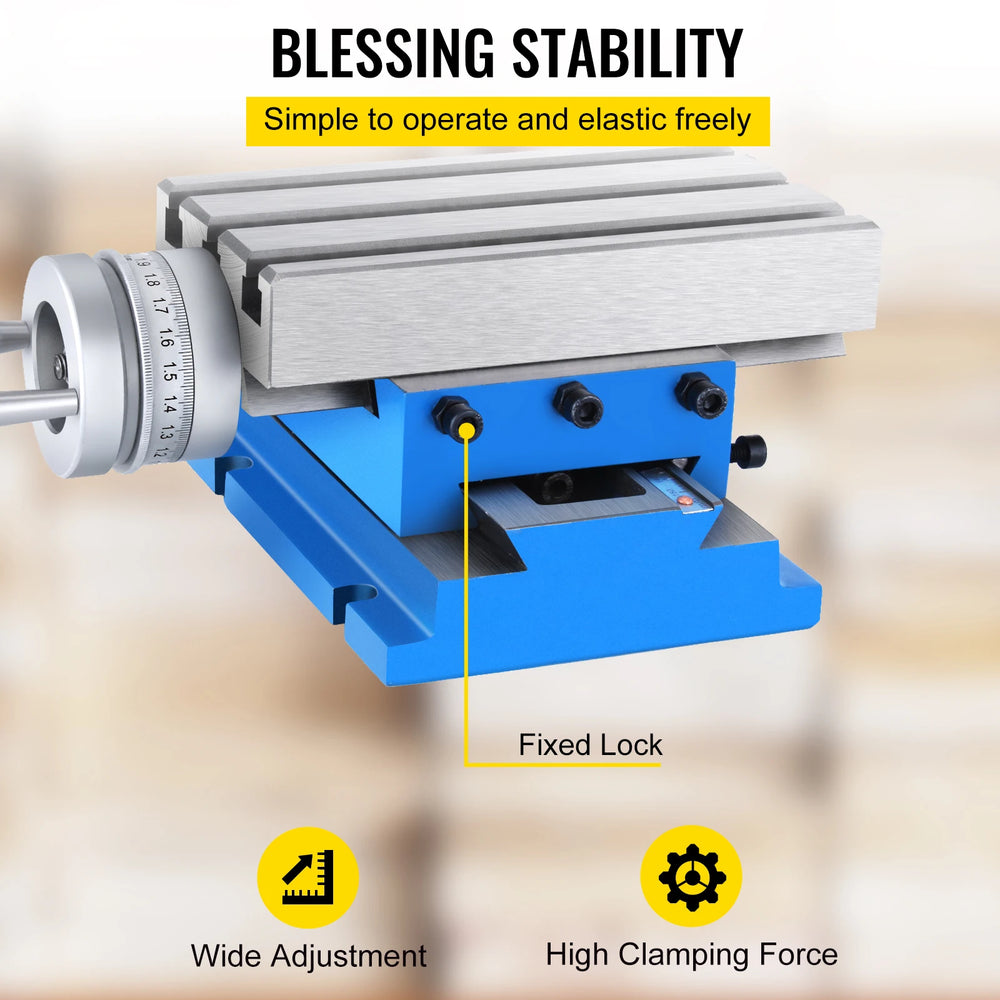

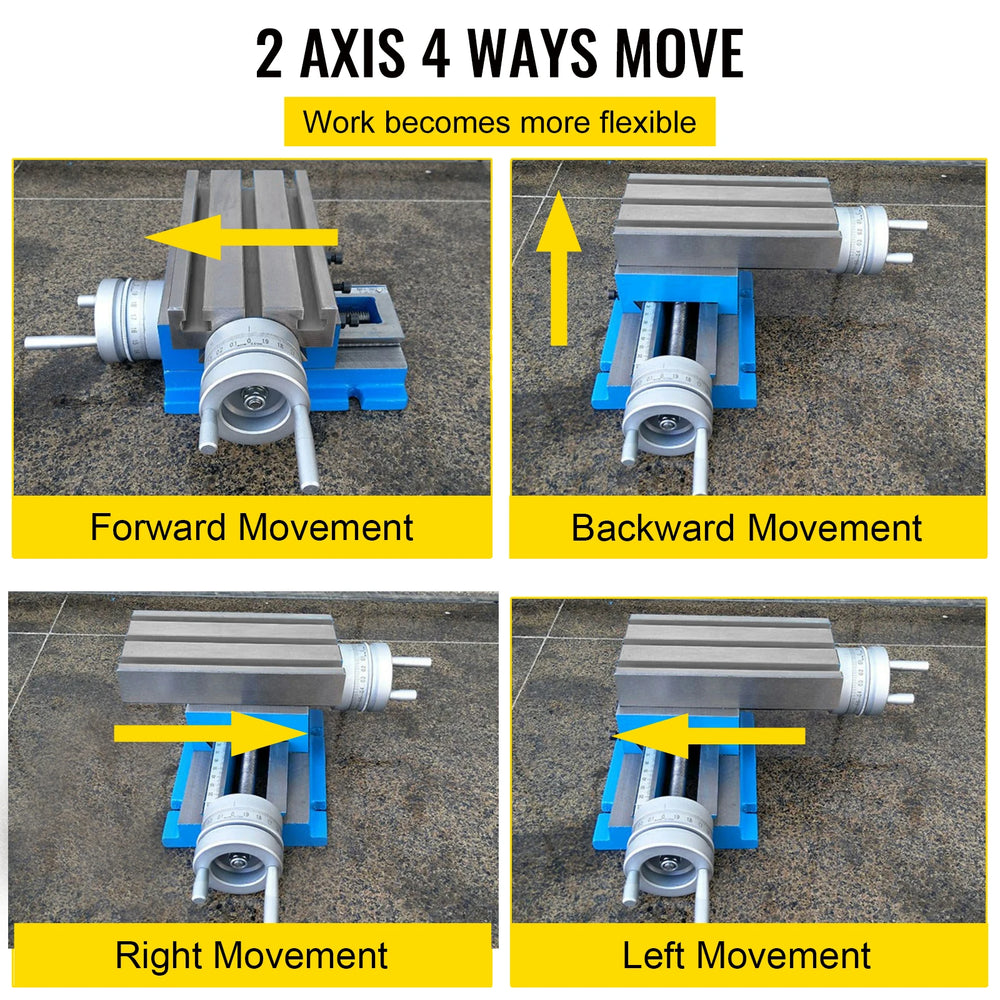

Movement of Sliding Table
The table could be moved in any direction by merely twisting three screws. There are total 6 screws, 3 for forward and backward movement, 3 for leftward and rightward.

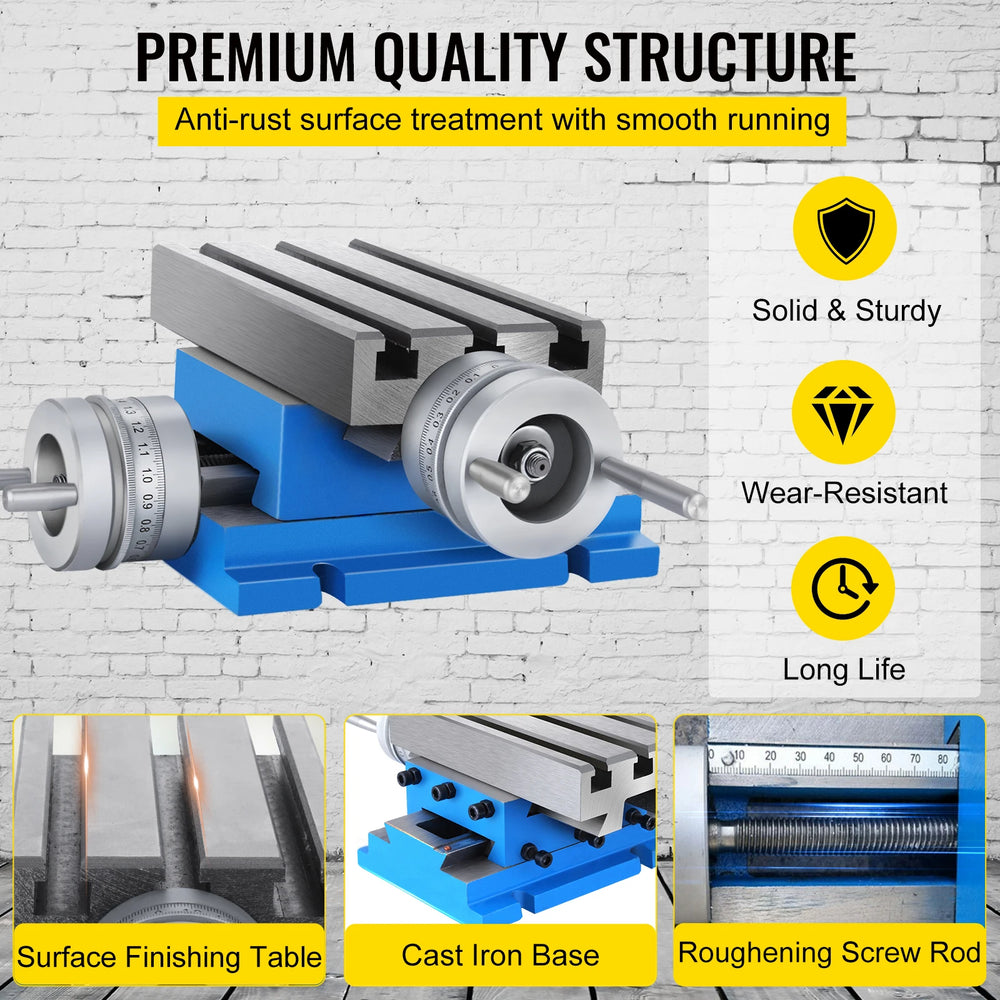

Stable Base
The base of cast iron was solid and robust enough to keep steady in work and make great contributions to boosting processing precision.

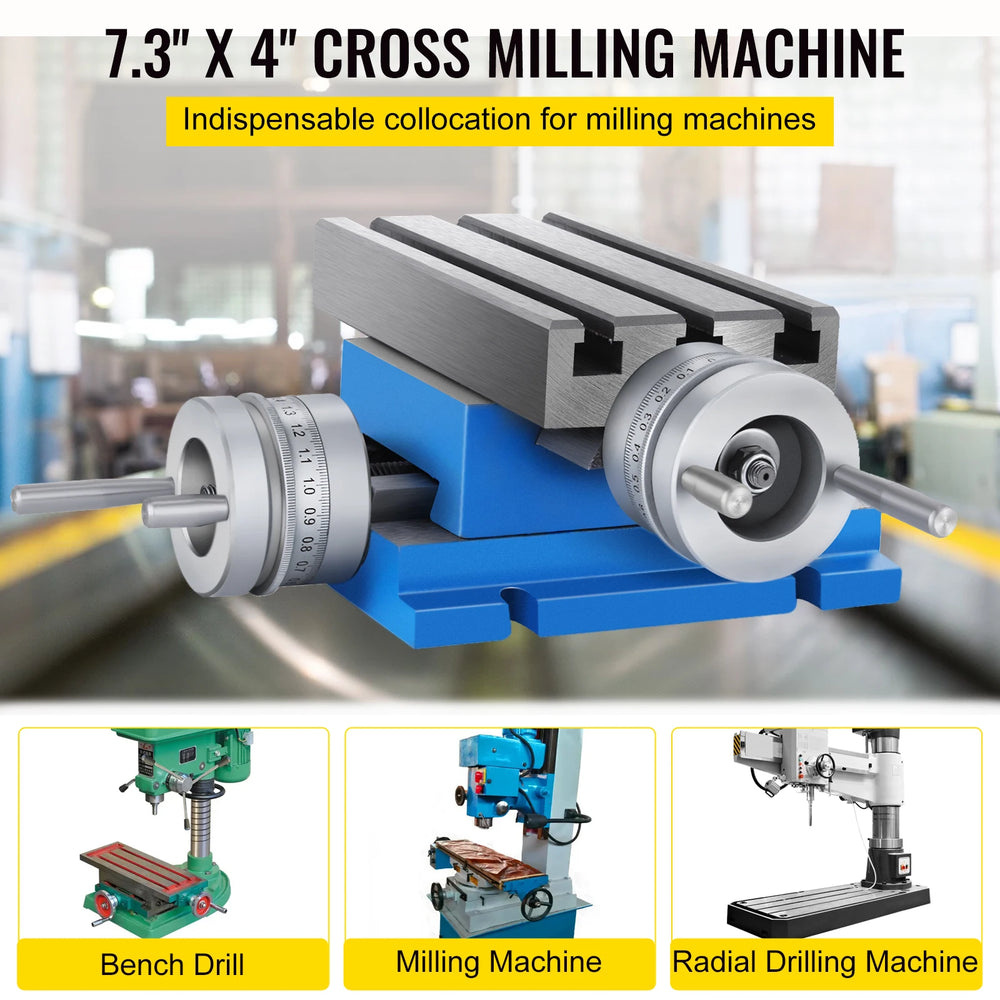

Extensive Uses
Suitable for all drill stands, drilling, and milling machines; compatible with all types of positioning, milling, drilling, optical viewing, and staging.

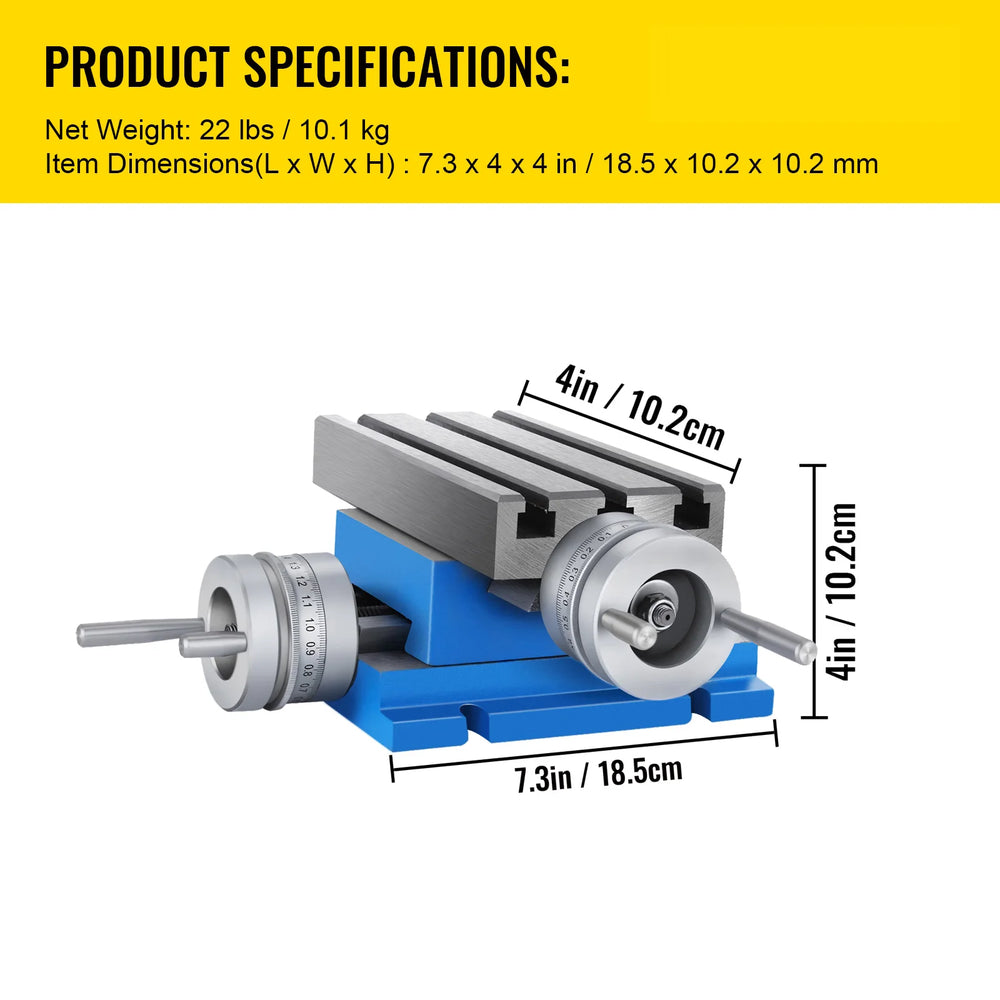

Specifications

  • Working Table: 4×7.3 in / 185 x 100 mm

  • Travel Length: 3 in / 80 mm

  • Vertical Travel: 3 in / 75 mm

  • T-Shaped Groove Length: 2/5 in / 10 mm

  • Groove Interval Width: 1.3 in / 33 mm

  • The Spindle Spacing Length: 0.08 in / 2 mm

  • Dial Spacing Length: 0.0004 in / 0.01 mm

  • Working Height: 4 in / 102 mm

  • Maximum Workpiece Weight: 66 lbs / 30 kg

  • Bottom size: 6.7 x 5 in / 170 x 130 mm

  • Net Weight: 22 lbs / 10.1 kg

  • Item Dimensions(L x W x H) : 7.3 x 4 x 4 in / 18.5 x 10 x 10.2 mm

Package Content

  • 1 x MX-75 Multifunction Milling Support Table Worktable


Features & Details

  • Ergonomics and Accuracy: Solid cranks adopting ergonomic design were easy to handle, which could save you great effort when in work; cranks were designed to vary in length to meet individual demands. Furthermore, they bear a precise scale that helps you in micro adjustment with the precision of about 0.01 mm and make processing parts more accurate.

  • Reinforcement & Reliability: Solidified and widened tabletop(100 mm) together ensure a long service life and steady processing, providing a high-level security for you. Convenient and effort-saving, such a table-board could satisfy various processing needs. On the other hand, this milling working table has three T-shaped grooves that are straight and noticeable. Those grooves give tight and reliable clamping; no need to worry about loosening.

  • Easy to Adjust: The movable table could be slid forward and backwards, leftwards and rightwards according to your needs. The movement could be finished by merely twisting screws. Besides, the internal lead-screw that has been treated with high temperature was really abrasion-resistant.

  • Improved Processing Precision : Sturdy and stable base of milling vise was made of cast iron, whose excellent stability helps to improve processing precision and work efficiency and avoiding latent security hazards.

  • Wide Application: The compound slide milling drilling working table can be used for all types of positioning, milling, drilling, optical viewing, and staging; Ideal for all drill stands, drilling, and milling machines.
