SucceBuy Linear Guide Rail HGR20-1000 mm

Precision Engineering for Smooth Movement and Longevity

The SucceBuy HGR20-1000 mm Linear Guide Rail system includes two 1000 mm (39.4") HGR20 rail shafts, four blocks, and a ballscrew kit, crafted from high-grade steel to ensure durability and extended service life. This guide rail system provides precise, smooth operation with minimal wear and noise, making it ideal for high-performance applications.

• Premier Linear Guiding System: Delivers superior performance and reliability. Easy to Assemble: Simplifies setup and integration. 1000 mm HGR20 Linear Guide Rail: Provides stable and accurate movement. High-Quality Steel Material: Enhances durability and longevity.

Key Features

•


• Effortless to Install


• Designed with pre-drilled holes in the steel support rail and featuring stainless steel bearings, our linear guides are easy to install and require no maintenance, ensuring a hassle-free setup.


• Versatile Application


• Suitable for various uses, including automatic and precision measuring equipment, this CNC linear rail set is perfect for any machinery that demands accurate linear movement.

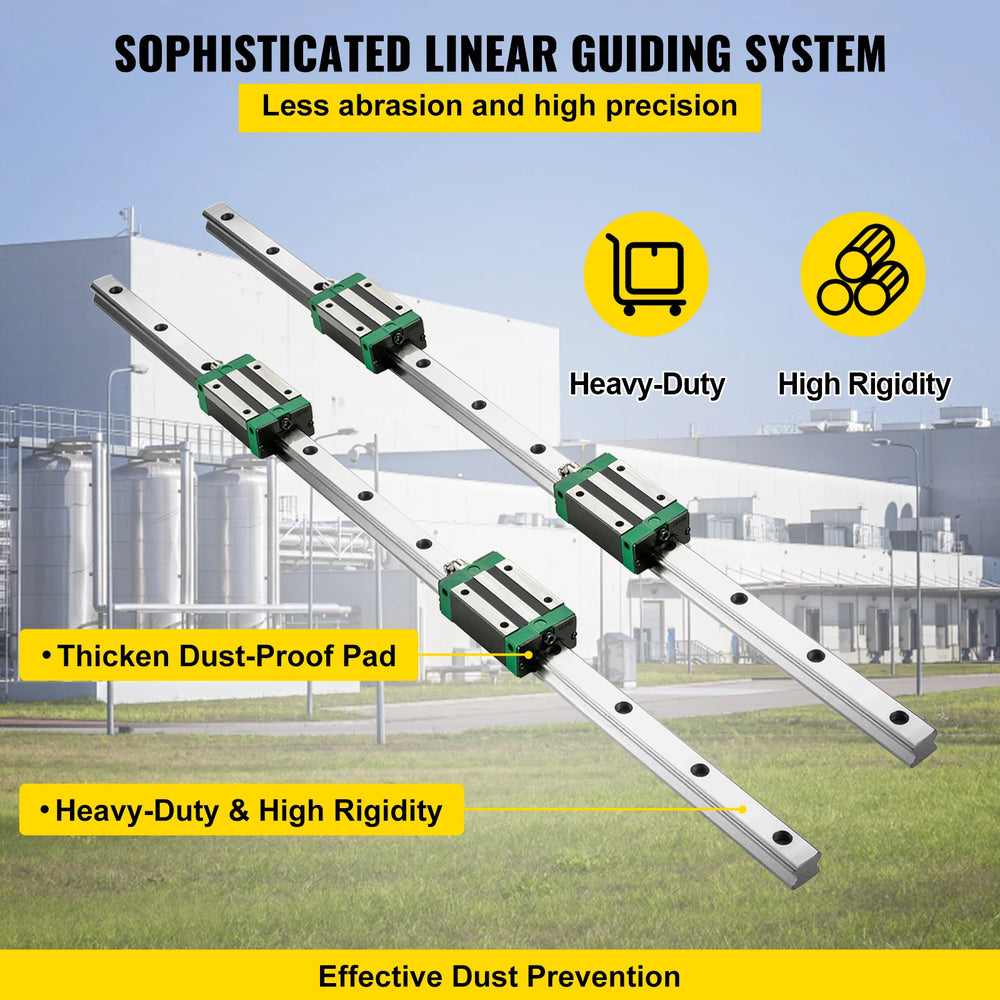

• Premier Linear Guiding System


• Achieve precise linear motion with our motor-driven guide rail, designed for minimal friction and high accuracy. Ideal for applications requiring exact movement and durability.


• High-Quality Steel Material


• Crafted from carbon steel and GCr15 bearing steel, our linear guides feature a chrome-plated surface for enhanced rust resistance and a hardness rating of HRC62, ensuring long-lasting performance.


• 1000 mm HGR20 Linear Guide Rail


• The set includes 2 HGR20-1000 mm linear guide rails, 4 blocks, a 1000 mm RM1605 ball screw with end machining, a RM1605 ball nut, a BF12/BK12 end support, and a plum coupling, providing a comprehensive solution for your guiding needs.

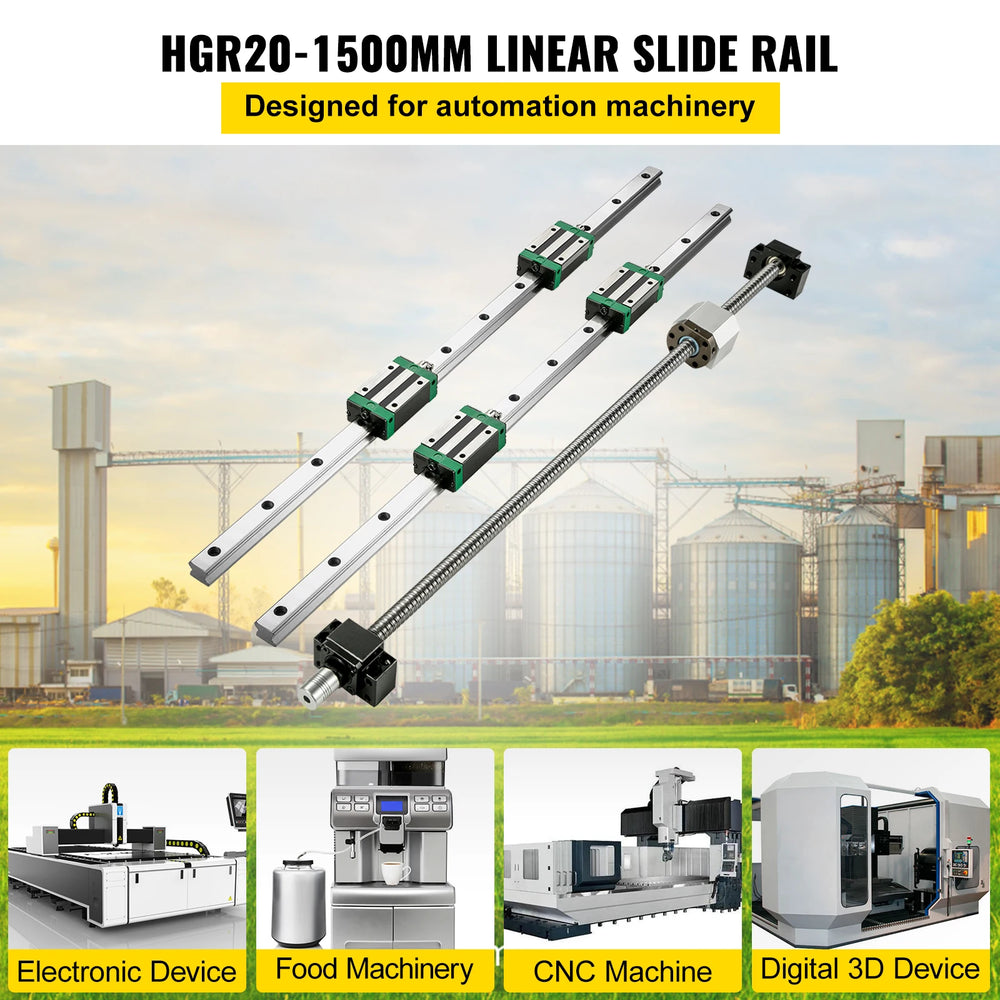

Versatile Use

Ideal for DIY routers, mills, lathes, and various automation and precision measuring equipment, this linear motion rail is versatile and widely applicable.

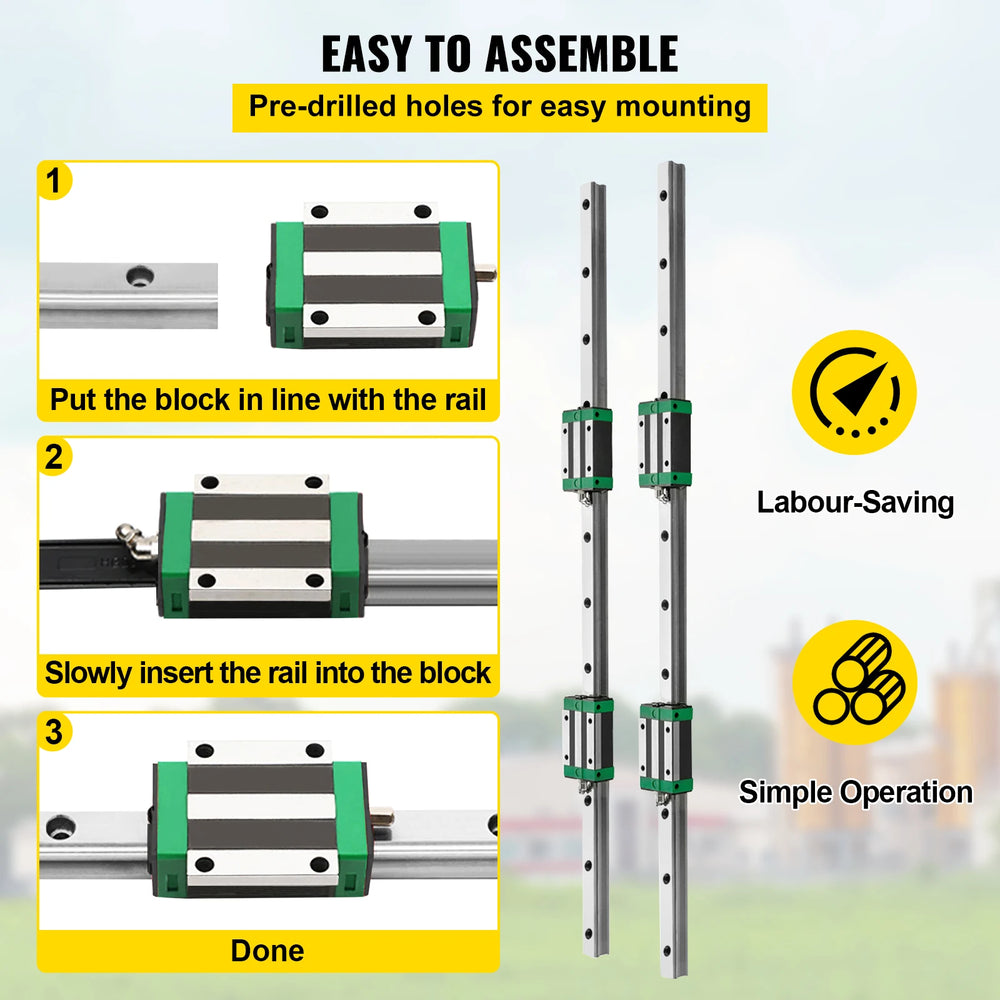

Simple Assembly

Pre-drilled holes on the support rail facilitate easy installation, streamlining the setup process and saving time.

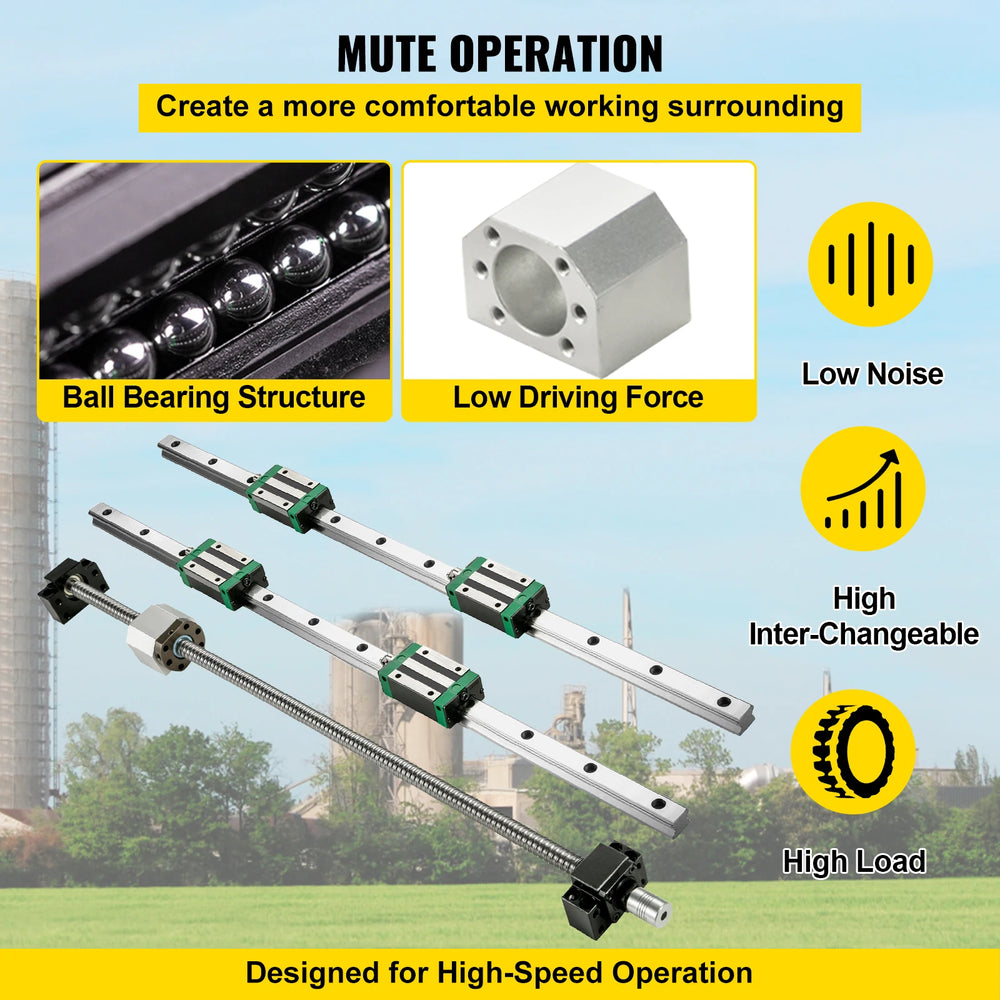

Efficient Sliding Performance

The professionally engineered rail and blocks ensure smooth, deflection-free movement with minimal wear and noise, enhancing the overall performance..

Superior Hardness & Rigidity

With a chrome-plated surface treatment and a hardness rating of up to HRC62, this rail provides exceptional rust resistance, accuracy, and durability.

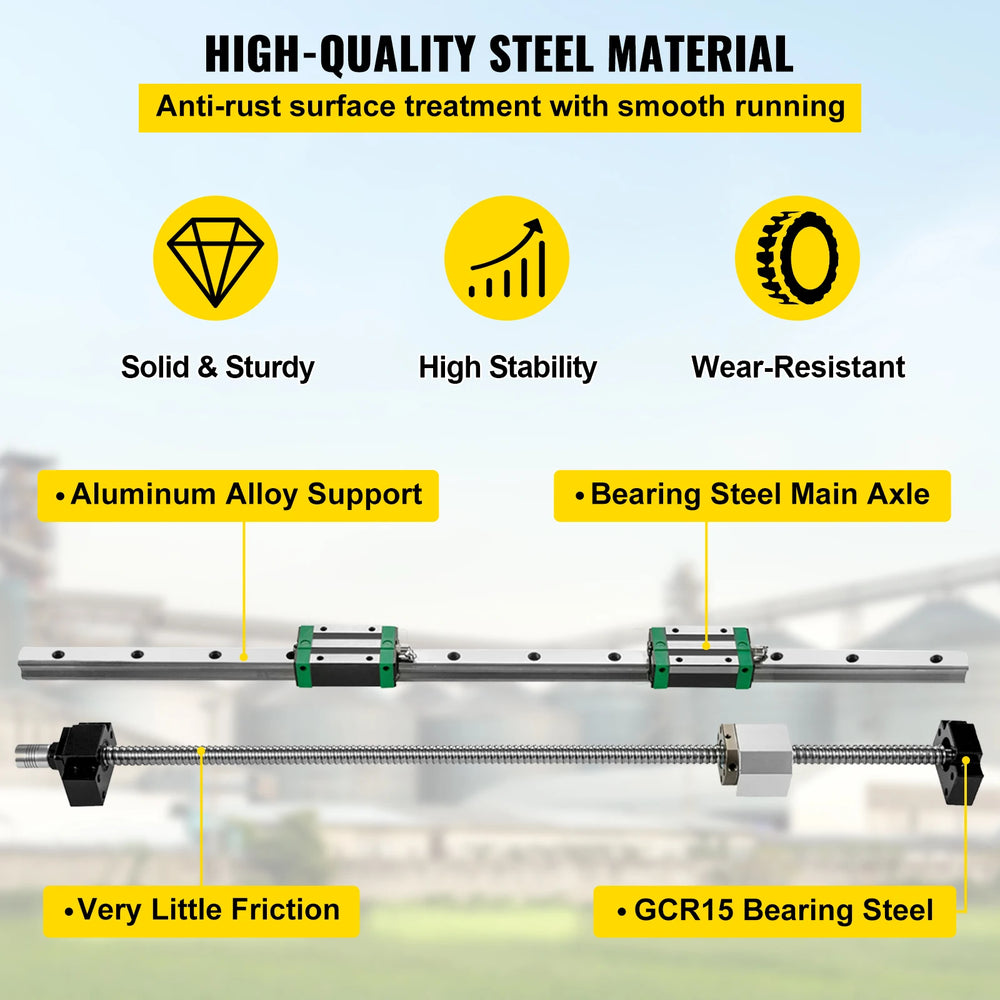

Premium Materials

Crafted from carbon steel for the main axle, GCr15 bearing steel for the rail blocks, and an aluminum alloy casing, this rail kit offers excellent resistance to corrosion, high strength, and durability.

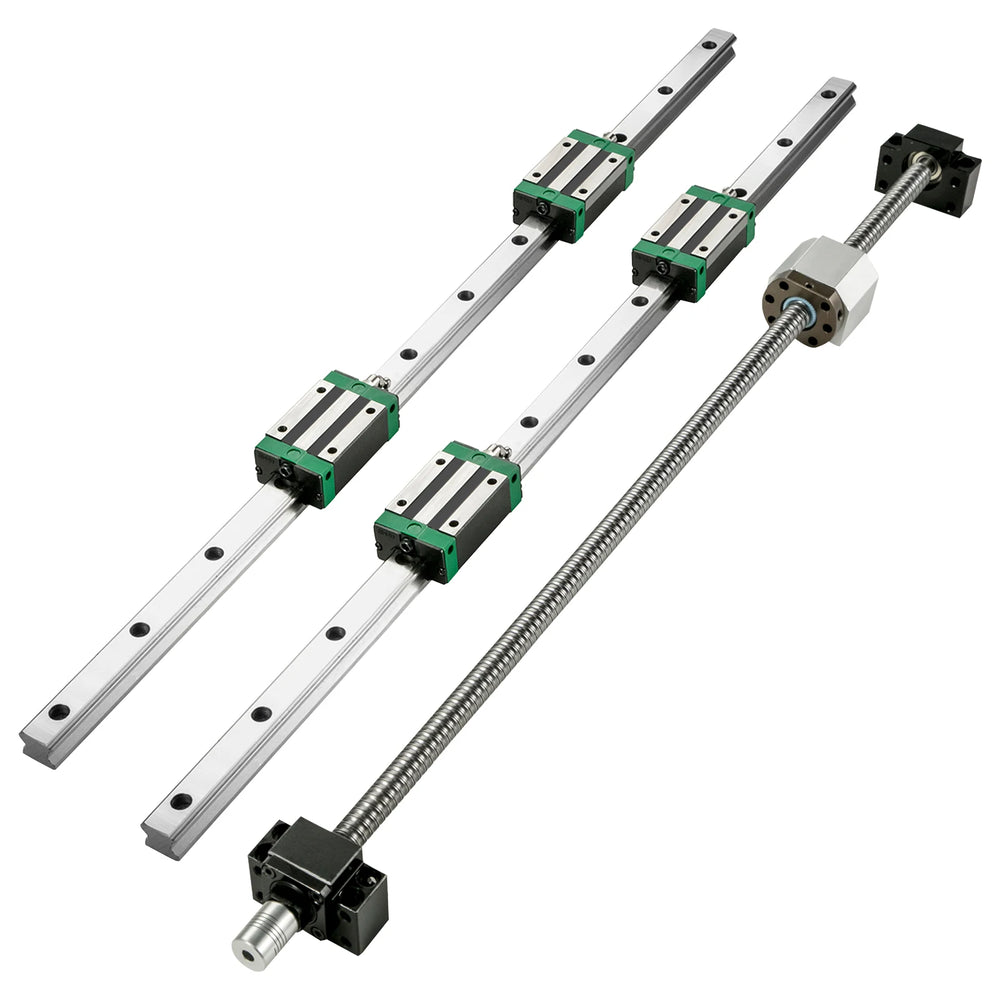

Complete Linear Rail Kit

This set includes two 1000 mm (39.4") HGR20 rail shafts, four blocks, and a ballscrew kit, providing everything you need for precise linear motion.

Specification

• Allowable Static Torque: 0.17 kN·m Fixing Screw Hole Size: M4 x 16 mm Block Dimensions (L x W x H): 7.3 x 4.2 x 3.4 cm (2.8 x 1.6 x 1.3 in) Material: Gcr15 Steel Rail Shaft Length: 100 cm (39.3 in) Nuts: BF12 / BK12 Nuts Net Weight: 11 kg (24 lbs) Performance: Smooth Motion, Low Noise Static Load Ratings: 25.31/li>

Package Content

• 1 x Ball Nut 1 x BF12 / BK12 Nut 1 x Plum Coupling 2 x HGR20-1000 mm Linear Guide Rails 4 x Slide Blocks 1 x RM1605-1000 mm Ballscrew
