SPECIFICATIONS

Bevel Gear Material: 40CR Steel

Brand Name: NONE

Certification: CE

Chuck Body Material: Cast Iron

Chuck Diameter: 125 mm (4.92")

External Jaw Clamping Range: 48-125 mm (1.89"-4.92")

Gross Weight: 10.84 lb (4.92 kg)

High-concerned chemical: None

Internal Jaw Clamping Range: 7-57 mm (0.276"-2.244")

Jaws Material: 40CR Steel

Model Number: K72-125

Number of Jaws: 4

Origin: Mainland China

Package Dimensions (LxWxH): 5.9"x5.5"x3.93" (15x14x10 cm)

Pinions Material: 20CR Steel

Power: Manual

Power Source: Manual

Tolerance: No more than 0.07 mm (0.003")

SucceBuy K72-125 4-Jaw Independent Lathe Chuck

Wide Clamping Range & Precision Adjustment & Includes Chuck Key

Upgrade your lathe setup with the SucceBuy K72-125 4-jaw independent chuck. Built from robust cast iron and fitted with four hardened steel jaws, this 5-inch chuck is designed to handle demanding tasks with ease. It offers a broad clamping range and precise adjustments using a single T-handle, making it versatile for various materials. Perfect for achieving high accuracy and reliability in your lathe operations, this chuck ensures exceptional performance and durability.

• Durable Cast Iron Construction Reversible Hardened Steel Jaws Versatile Clamping Range Precise and Flexible Adjustment

Key Features

•


• Broad Compatibility


• Designed with a compact structure, this 4-jaw independent metal lathe chuck is compatible with various metal lathe models and is capable of clamping workpieces of different shapes, enhancing its versatility in diverse machining tasks.


• Exceptional Durability


• Made from robust cast iron, this 4-jaw mini lathe chuck, with a diameter of 5 inches (125 mm), is built to last. It has undergone extensive quality testing to ensure high strength, toughness, and long-term reliability.


• Versatile Jaw Configuration


• Equipped with three inward stepped jaws, this lathe chuck can adapt to various raw material shapes by adjusting the jaws inward or outward. Its precision bevel gear ensures accurate operation.


• Precision Engineering


• This lathe chuck offers exceptional accuracy with a tolerance of ≤ 0.003 inches (0.07 mm), making it ideal for detailed metal processing. The included accessory screws enhance adaptability and compatibility with other jaws in the series.


• Flexible Operation


• The T-shaped chuck key facilitates the quick installation of different workpieces, reducing changeover time and improving operational efficiency. It supports internal jaw clamping from 0.276"" to 2.244"" (7-57 mm) and external clamping from 1.89"" to 4.92"" (48-125 mm).

Precise Operation

The K72 lathe chuck minimizes vibrations, ensuring precise and accurate results for your machining projects.

User-Friendly Adjustment

Comes with a T wrench for effortless adjustment of the jaws, simplifying the process of loosening or tightening them as needed.

Durable Cast Iron Construction

Crafted from high-quality cast iron, this lathe chuck offers robust rigidity and durability, combined with a sleek, low-profile design..

Versatile Use

Lightweight and convenient, this 4-jaw independent chuck is ideal for a range of lathe applications, enhancing your machining capabilities.

Reversible Jaw Functionality

Equipped with four reversible jaws that can move inward or outward, this chuck adapts easily to various material sizes and shapes.

Independent Jaw Movement

Featuring four independently adjustable jaws, this chuck allows each jaw to be set individually for versatile clamping and accurate positioning.

Specification

• Chuck Diameter: 125 mm (4.92 in) Internal Jaw Clamping Range: 7-57 mm (0.276-2.244 in) External Jaw Clamping Range: 48-125 mm (1.89-4.92 in) Tolerance: ≤ 0.07 mm (≤ 0.003 in) Accuracy: 0.051 mm (0.002 in) Maximum Speed: 3000 RPM Item Weight: 4.92 kg (10.9 lbs) Package Dimensions (L x W x H): 15 x 14 x 10 cm (5.9 x 5.5 x 3.93 in) Chuck Body Material: Cast Iron Jaws Material: 40CR Steel Bevel Gear Material: 40CR Steel Pinions Material: 20CR Steel Color: Silver Center Hole: 30 mm (1.2 in) Circle Diameter: 108 mm (4.3 in)/li>

Package Content

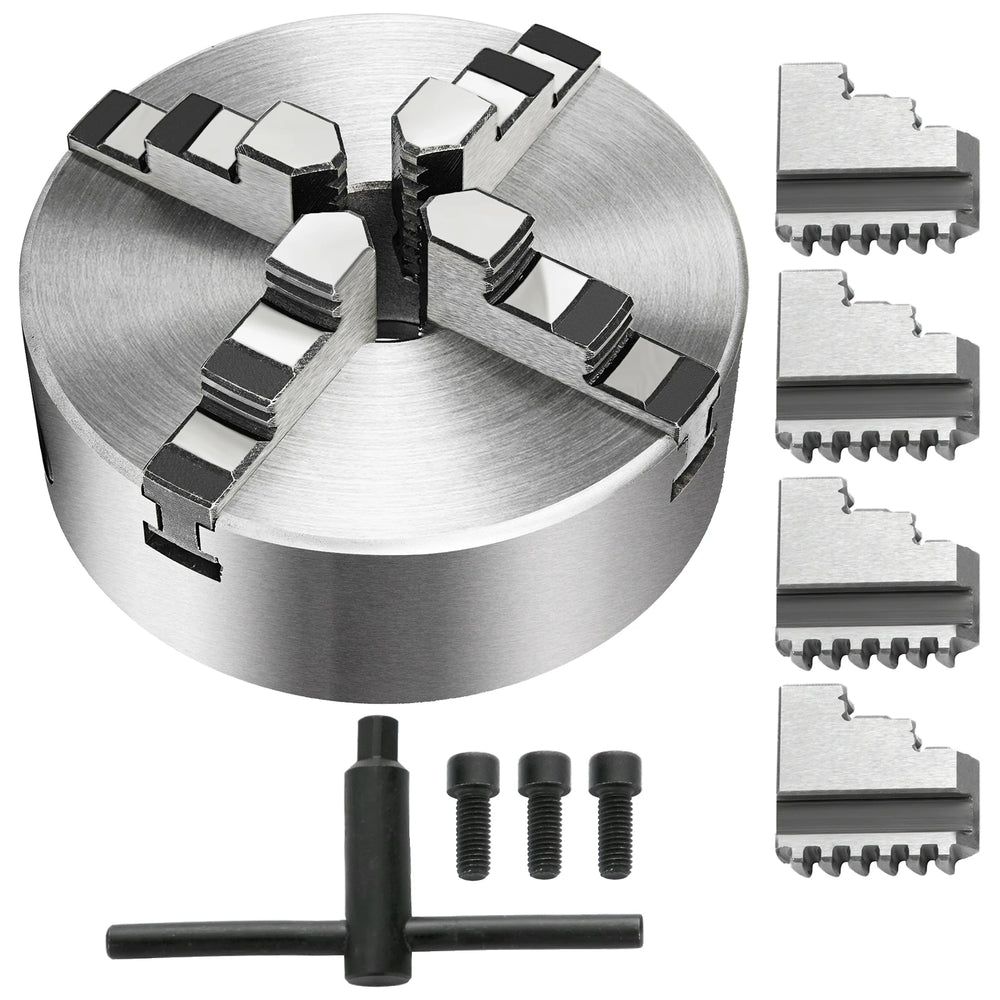

• 1 x Lathe Chuck 1 x Chuck Key 4 x Mounting Screws
