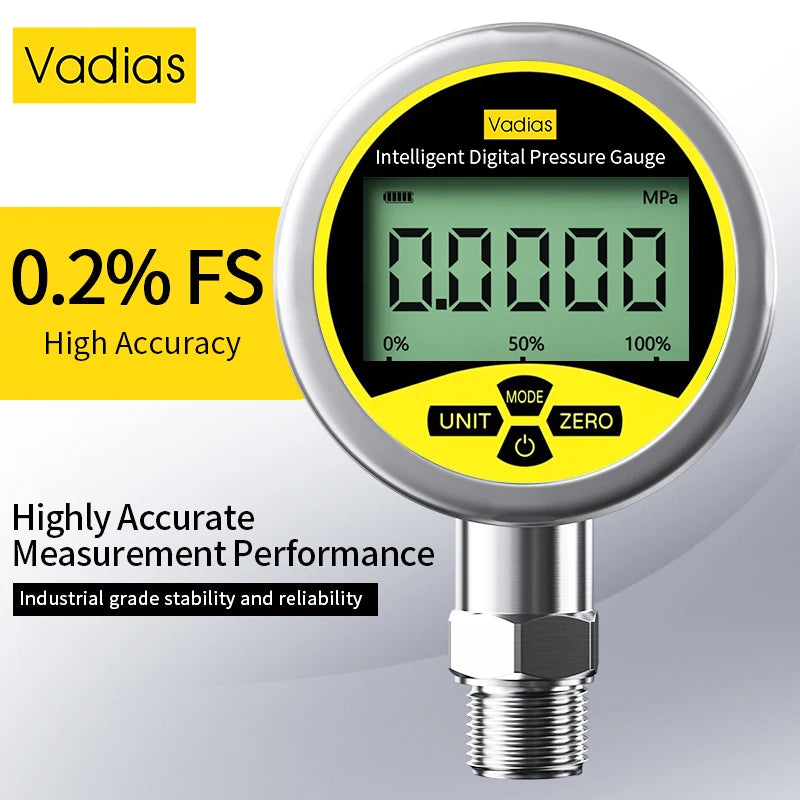

High precision measurement: 0.2% FS accuracy level, long-term stability ≤ 0.1%/year, suitable for industrial-grade precision pressure testing.

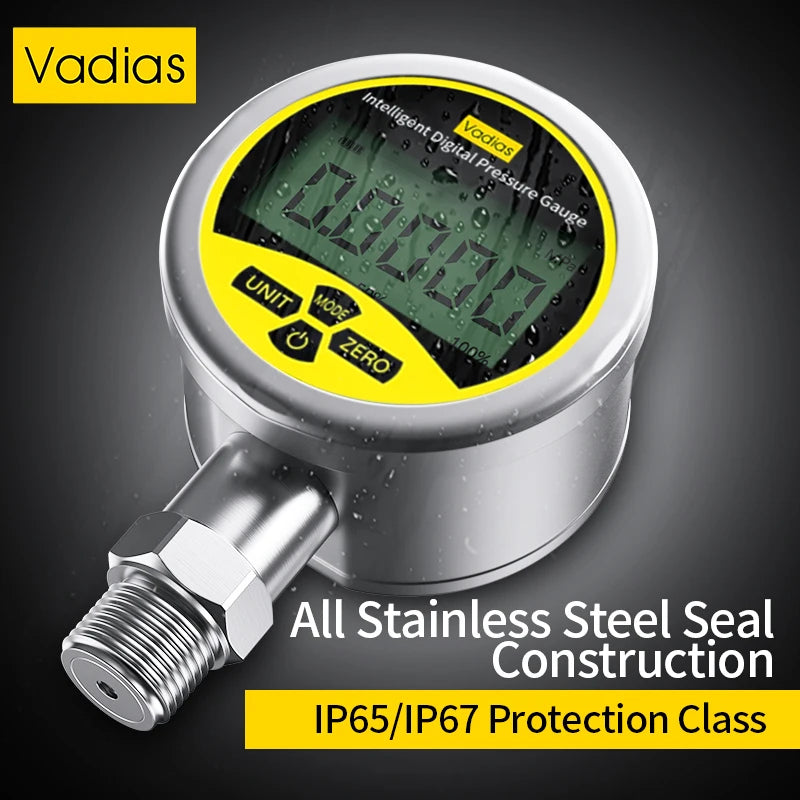

80mm stainless steel dial: 304 stainless steel shell and connector, anti-vibration, corrosion resistance, protection class IP54 (optional protective sleeve to upgrade to IP65).

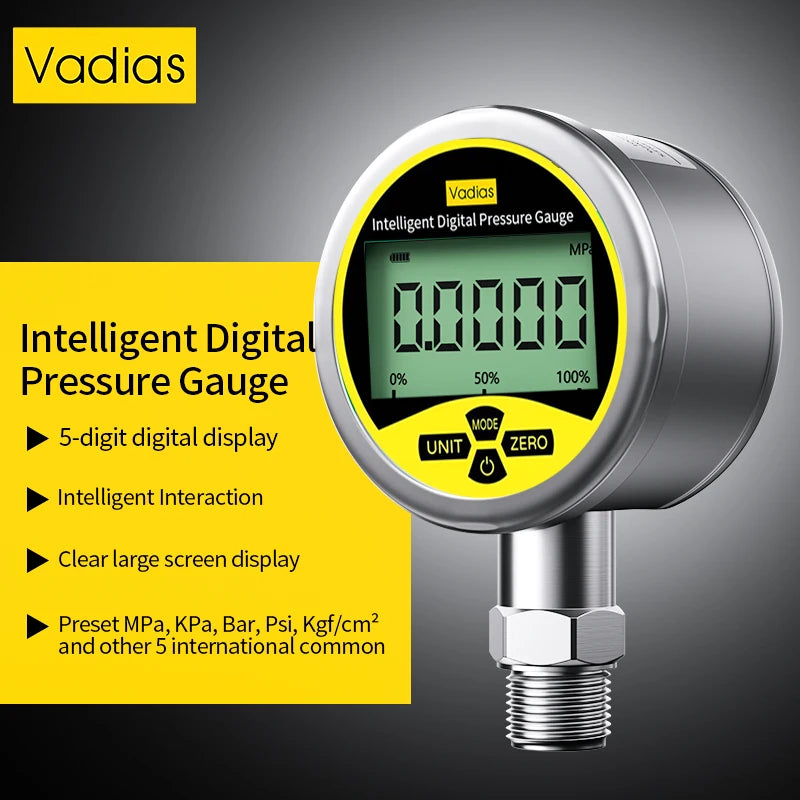

Multi-function display:

4-digit LCD liquid crystal screen, white backlight, support 11 kinds of units one-key switch (MPa, PSI, bar, etc.).

Peak recording function, real-time display of maximum/minimum value, with pressure percentage scale bar.

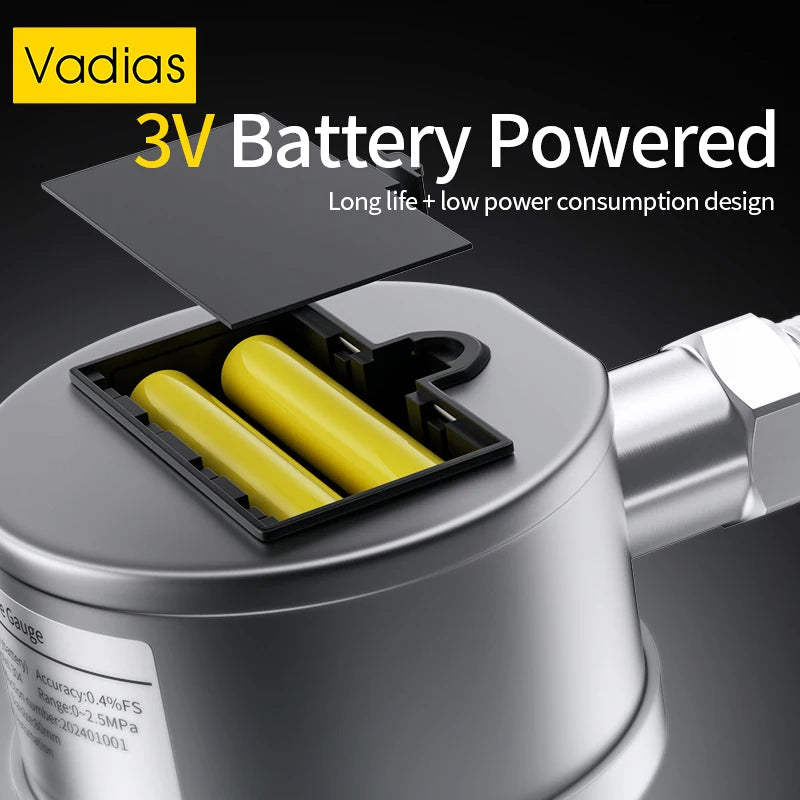

Ultra-long battery life: 2 AAA batteries power supply, low power consumption design, more than 12 months of life, support auto power off energy saving.

Explosion-proof certification: Exib IICT4 explosion-proof certification, suitable for petroleum, chemical and other hazardous environments.

Technical parameters

Parameters Specifications

Range -0.1~100MPa (support micro-pressure/conventional/high-pressure customization, such as 0~10kPa, 0~60MPa, etc.)

Accuracy 0.2%FS (some ranges can be selected 0.4%)

Display 0.56" LED or 80mm LCD large screen (white backlight)

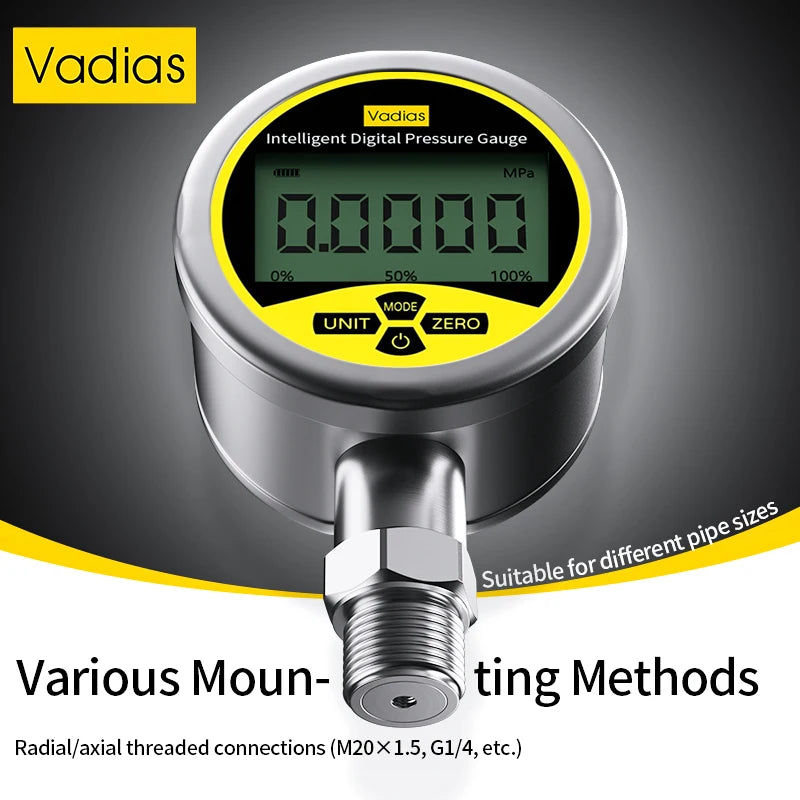

Interface Threads M20×1.5 (support G1/4, NPT1/4 etc. customized)

Power supply 3V battery power supply (AAA×2) or 24VDC external power supply

Media compatibility Water, oil, gas and other non-corrosive media for stainless steel

Operating temperature -20℃~70℃ (special customization can be extended to -40℃~150℃)

Protection level IP50 (standard), IP54 (with protective sleeve)

Application areas

Industrial equipment: hydraulic system, air compressor, engineering machinery pressure Monitoring.

Energy and environmental protection: water treatment, heat pipe network, oil and gas transmission pressure detection.

Laboratory and medical: precision instrument calibration, medical equipment pressure control.

Explosion-proof scenarios: chemical, petroleum and other hazardous environments (requires optional explosion-proof models).

Product description

Professional design:

All-electronic structure, imported piezoresistive sensors, 24-bit A/D conversion, ensuring accurate and stable data.

304 stainless steel material, anti-vibration and anti-impact, adapt to the harsh industrial environment.

Intelligent function:

one-key zero error, support the pressure unit fast switching, simplify the operation process.

Low voltage alarm function to avoid measurement deviation due to insufficient power.

Customized service:

supports personalized customization of range, interface thread, display unit, explosion-proof grade, and so on.

Certification and Warranty:

is CE certified, with 12 months warranty and lifetime maintenance service.

Package Information

Standard configuration: digital pressure gauge × 1, manual × 1, certificate of conformity × 1, AAA battery × 2.

Optional accessories: waterproof protective cover, shockproof carrying case, RS485/4-20mA remote transmission module.

Caution

Make sure the interface is concentrically aligned when installing to avoid thread damage.

Long-term storage should be in -20℃~70℃ dry environment, avoid direct sunlight.

Confirm material compatibility in advance when measuring corrosive media.
