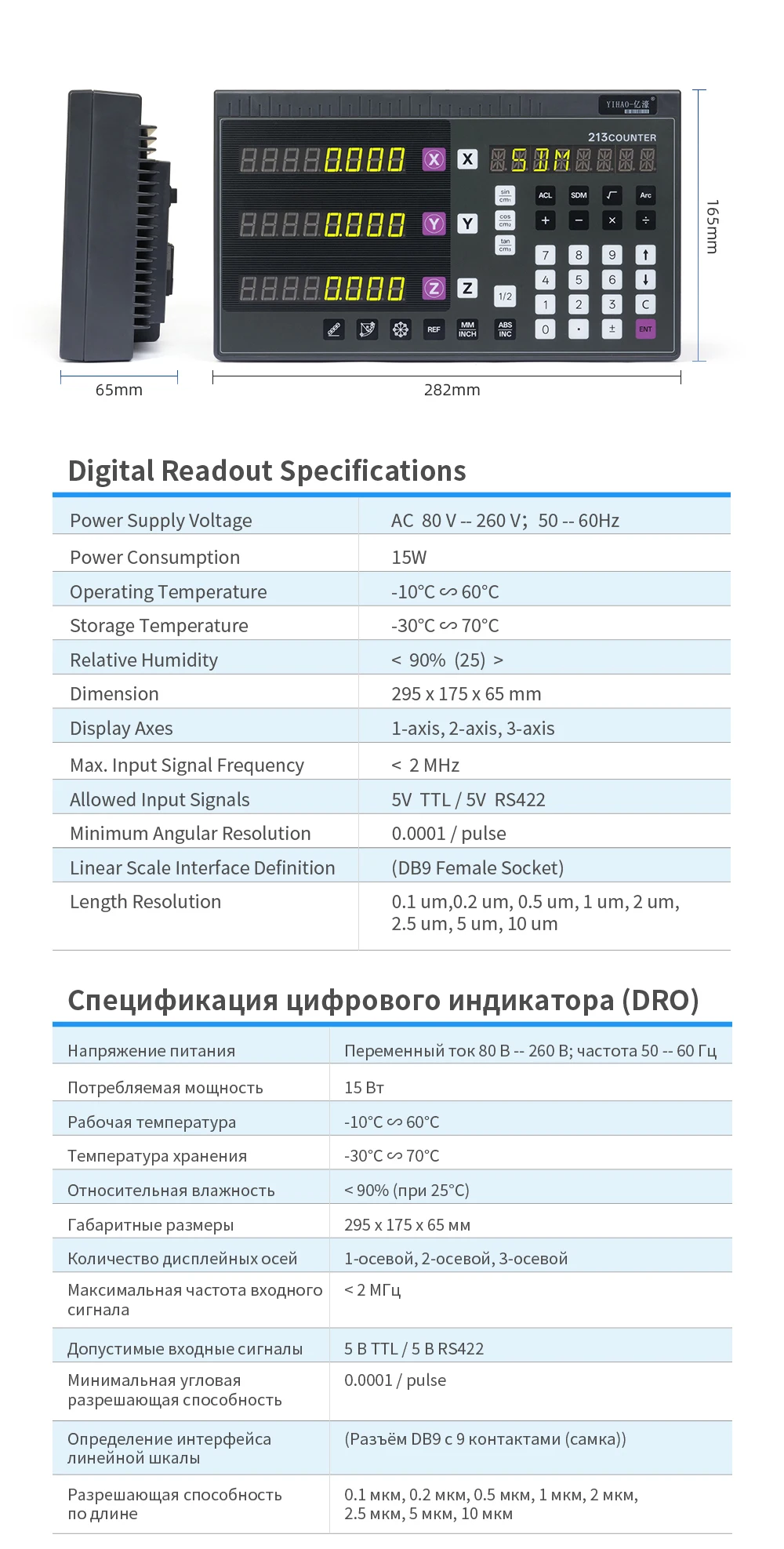

SPECIFICATIONS

Angle Resolution: Minimum 0.0001°/pulse

Brand Name: NONE

Certification: CE

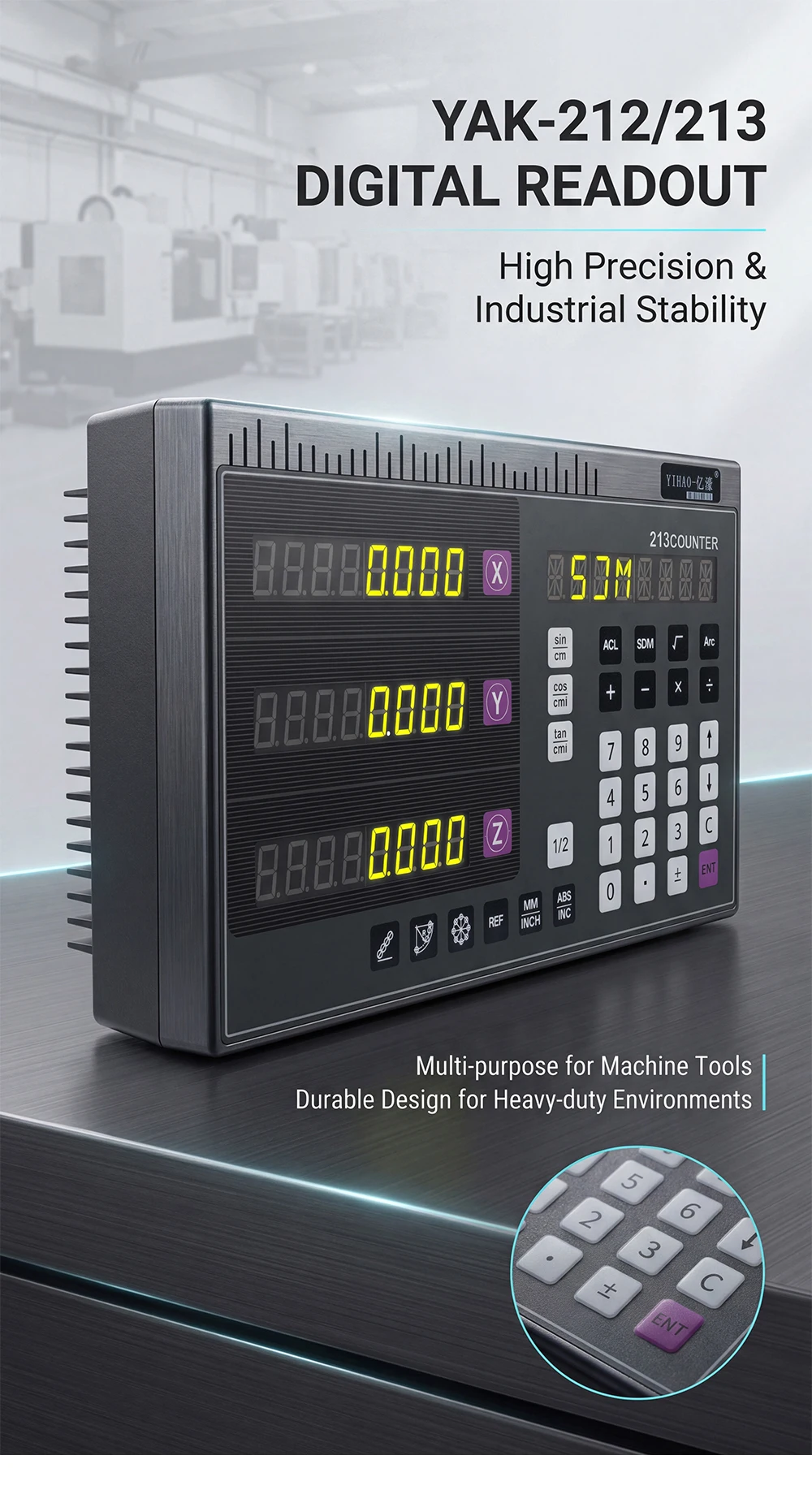

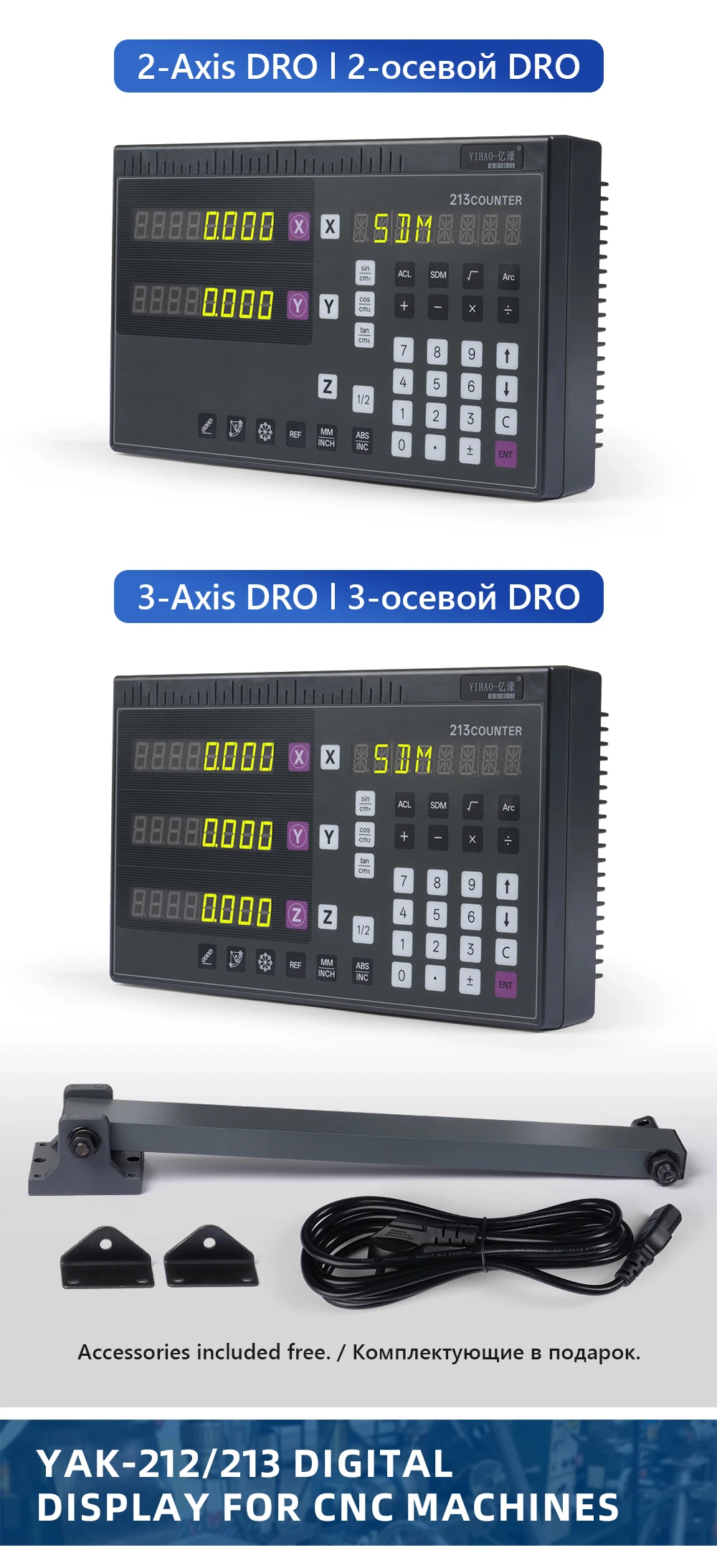

Display Axes: 2-axis (YAK-212) or 3-axis (YAK-213)

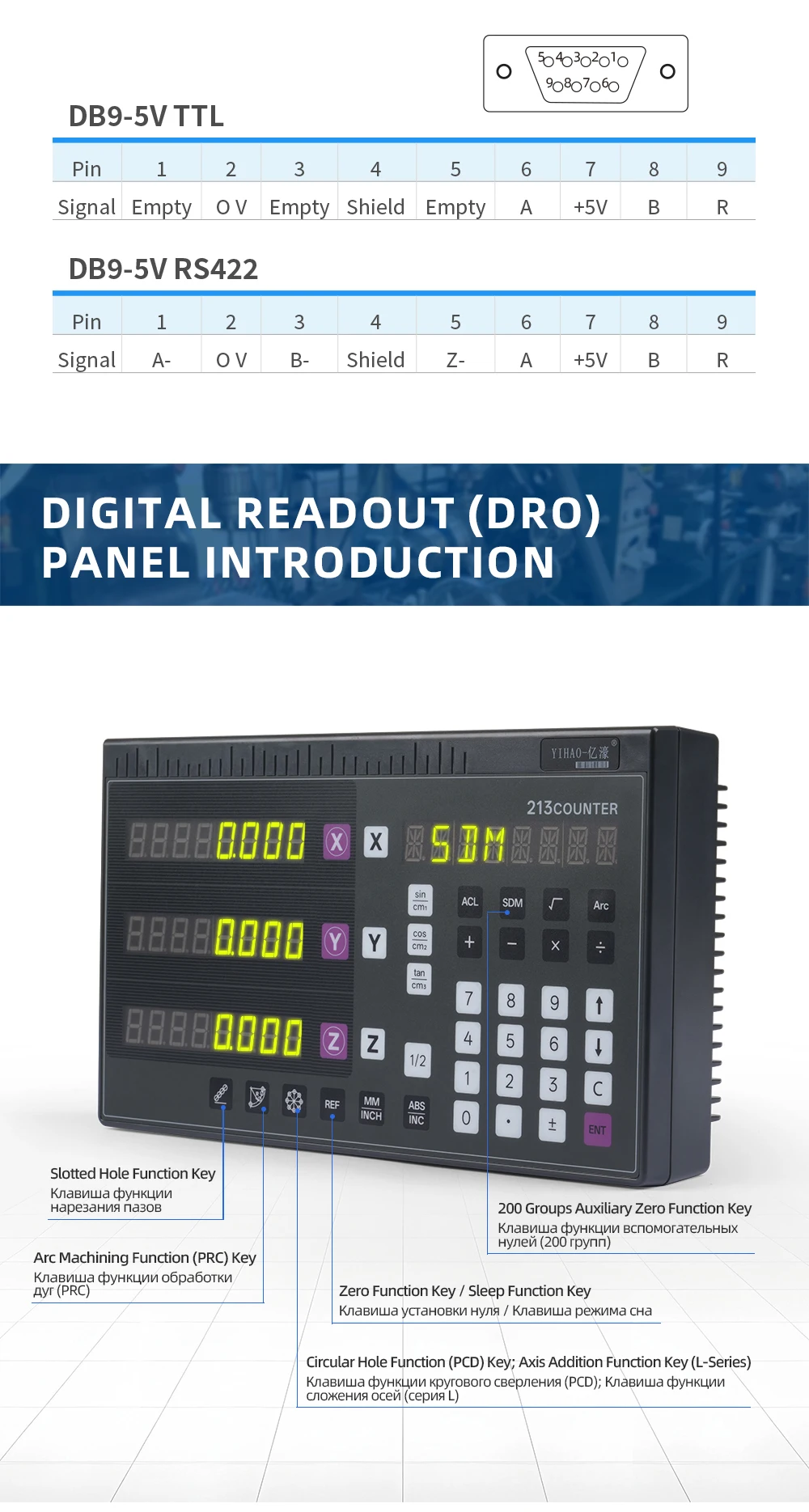

Grating ruler interface: DB9 female socket

High-concerned chemical: None

Input Signal: 5V TTL / 5V RS422

Length Resolution Options: 0.1μm, 0.2μm, 0.5μm, 1μm, 2μm, 2.5μm, 5μm, 10μm

Origin: Mainland China

Power Consumption: 15W

Power Supply: AC 80V-260V, 50-60Hz

Signal Frequency: <2 MHz

Dual/Three-Axis Compatibility: Perfect for milling machines, lathes, and EDM machines, offering flexible 2-axis (YAK-212) or 3-axis (YAK-213) digital readout solutions.

Advanced Compensation Functions: Features both linear and non-linear error compensation to significantly enhance machining accuracy.

200 Auxiliary Zero Points (SDM): Allows for complex batch processing and mold making by storing up to 200 auxiliary coordinate systems relative to the main ABS zero.

Specialized Machining Functions: Includes diagonal hole dividing, circular hole dividing (PCD), smooth/simplified arc machining (R function), and radius/diameter conversion for lathes.

Robust Data Security & Convenience: Equipped with power-off memory, sleep mode, and a REF zero-point retrieval function using the grating ruler's mechanical zero for quick setup after interruptions.

DRO parameter

Voltage Range: AC 80V~260V/50HZ~60HZ

Acceptable Signal: TTL square wave / RS422

Acceptable resolution: 50um ,10um ,5um ,2um ,1um , 0.5um ,0.1um

Basic Functions

"mm/inch" Conversion Display

200 Points Auxiliary Zero Position Function

Mid-split Function

Segmented Error Compensation

Linear Error Compensation

Power Interruption Memory

Sleep Switch

Mathematics calculation

Smooth R

Simple R

Hole Drilling Along An Oblique Line

The Function For 200 Point

PCD Circle Equally Dividing Holes

Angular Surface Processing

The Progressive Progressing

The Function Calculator Function

N3 Function

Advantage

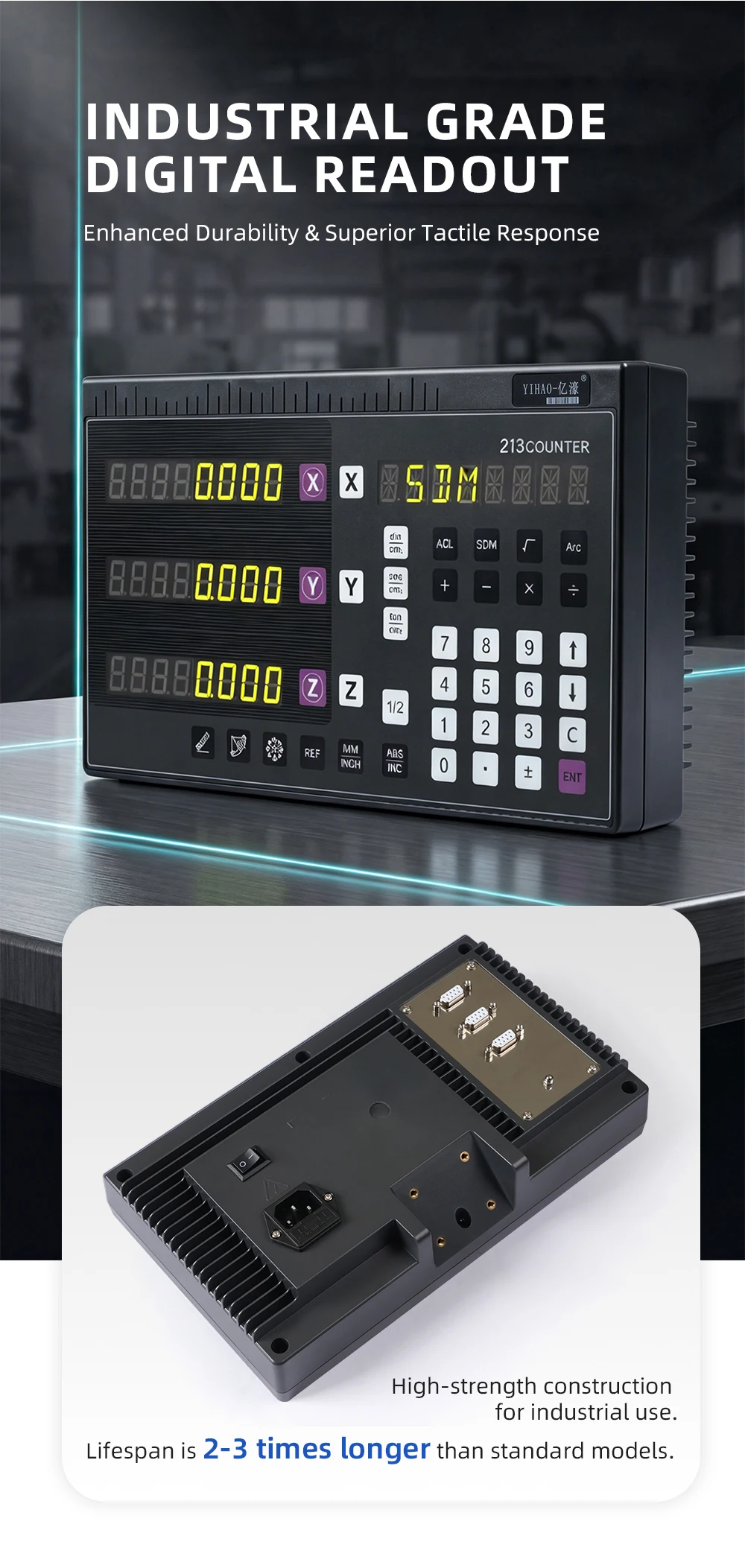

Full of feature & can widely used for mill, lathe, drilling, boring, wire cutting etc.

The wide voltage AC80-260V can be widely used in all over the world.

We offer US, AU, EU, UK different type plug suite for different countries if need.

The available input frequency of DRO is up to 2MHZ with A/B, it is also advanced in the world, and it's the first manufactory who employs 16 and 32 bits calculator in DRO system in China.

It caters to a global audience, making it an ideal choice for professionals and hobbyists alike.

The user-friendly interface ensures that users can operate the device with ease, regardless of their technical expertise.
